Steering Column - With Column Shift

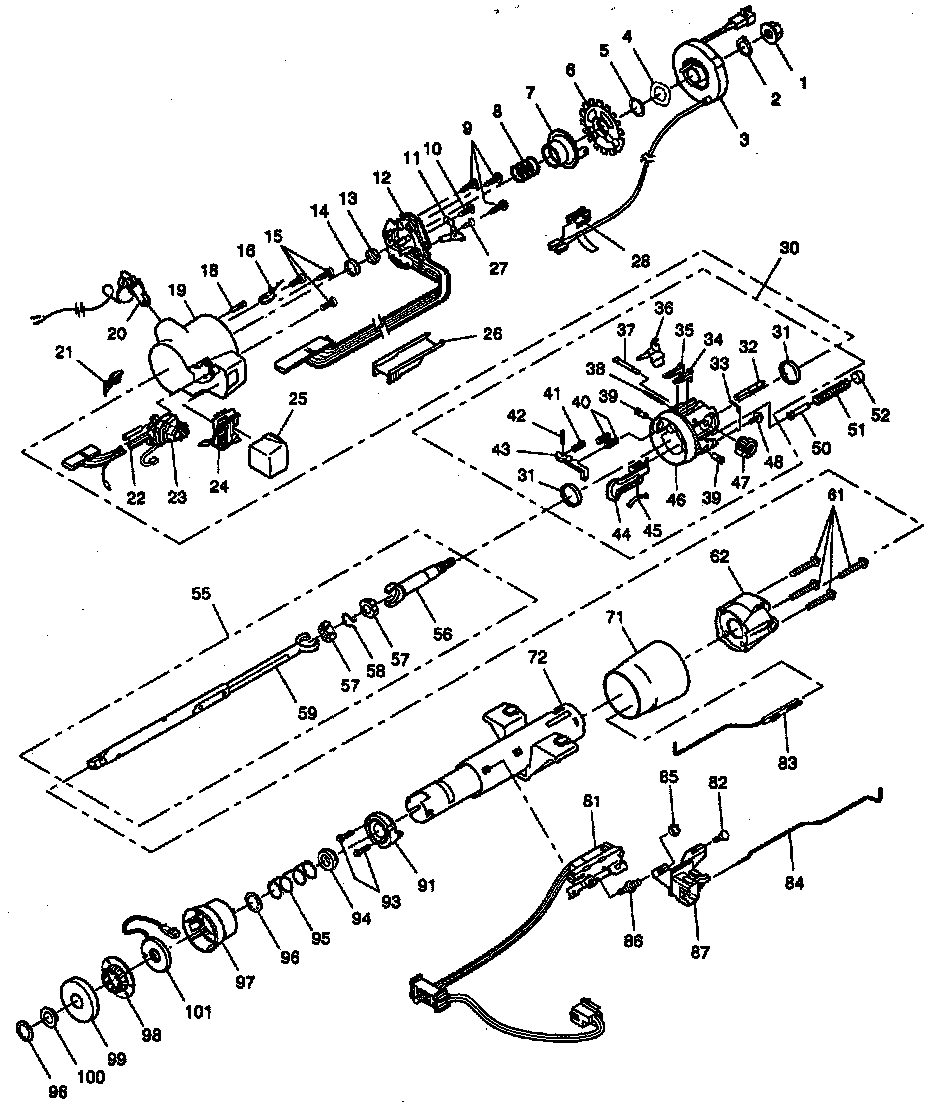

Exploded View Of Steering Column W/Column Shift:

1- NUT, HEXAGON LOCKING (M14x1.5)
2- RING, RETAINING
3- COIL ASM, SIR
4- WASHER, WAVE
5- SHROUD, CONNECTOR
6- RING, RETAINING
7- LOCK, SHAFT
8- CAM ASM, T/SIG CANCEL
9- SPRING, UPPER BEARING
10- SCREW, BNDG HD CR RECESS
11- SCREW, RD WASH HD (M4-2x1.41)
12- ARM ASM, SIGNAL SWITCH
13- SWITCH ASM, TURN SIGNAL
14- SEAT, UPPER BRG INNER RACE
15- RACE, INNER
16- SCREW, PAN HD 6 LOBED SOC TAP
17- SWITCH ASM, BUZZER
18- SCREW, LOCK RETAINING
19- COVER ASM, LOCK HOUSING
20- LOCK CYLINDER SET, STRG COL
21- ACTUATOR, DIMMER SW ROD
22- PIN, SWITCH ACTUATOR PIVOT
23- SWITCH ASM, PIVOT & (PULSE)
24- BASE PLATE, COL HSG CVR END
25- CAP, COL HSG COVER END
26- PROTECTOR, WIRING
27- SCREW, FLAT HEAD TAPPING
30- HOUSING ASM, STRG COLUMN
31- BEARING ASM
32- BOLT, LOCK
33- SPRING, LOCK BOLT
34- SHOE, STEERING WHEEL LOCK
35- SHOE, STEERING WHEEL LOCK
36- SHIELD, WIRE PROTECTOR
37- SHAFT, DRIVE
38- PIN, DOWEL
39- PIN, PIVOT
40- SPRING, SHOE
41- SPRING, RELEASE LEVER
42- PIN, RELEASE LEVER
43- LEVER, SHOE RELEASE
44- RACK, SWITCH ACTUATOR
45- SPRING, RACK PRELOAD
46- HOUSING, STRG COLUMN
47- SECTOR, SWITCH ACTUATOR
48- SCREW, HEX WASHER HEAD
50- GUIDE, SPRING
51- SPRING, WHEEL TILT
52- RETAINER, SPRING
55- SHAFT ASM, STEERING
56- SHAFT ASM, RACE & UPPER
57- SPHERE, CENTERING
58- SPRING, JOINT PRELOAD
59- SHAFT ASM, LOWER STEERING
61- SCREW, SUPPORT
62- SUPPORT ASM, STRG COL HSG
63- SUPPORT, STRG COL HSG
64- SCREW, OVL HD CROSS RECESS
65- GATE, SHIFT LEVER
66- RING, SHIFT TUBE RETAINING
67- WASHER, THRUST
68- PLATE, LOCK
69- WASHER, WAVE
70- SPRING, SHIFT LEVER
71- BOWL ASM, GEARSHIFT LEVER
72- SHROUD, GEARSHIFT BOWL
73- TUBE ASM, SHIFT
74- SCREW, HEX WASH HD
75- SOLENOID ASM, INTERLOCK
76- SCREW, WASH HD (#10.24X.25)
77- BRACKET, SOLENOID
78- JACKET ASM, STRG COL
79- SPRING, BALL JOINT
80- ACTUATOR ASM, IGNITION SWITCH
81- SCREW, TORX WASHER HEAD
82- RETAINER, CAM
83- CAM ASM, CABLE SHIFT
84- SWITCH ASM, IGNITION
85- NUT, HEXAGON (#10-24)
86- ADJUSTER ASM, PRNDL
87- STUD, DIMR SW MTG
88- ROD, DIMMER SWITCH
89- SWITCH ASM, DIMMER
90- BRACKET ASM, STUD &
91- BEARING ASM, ADAPTER &
92- SCREW, HEX WASHER HD TAP
93- SEAT, LOWER BEARING
94- SPRING, LOWER BEARING
95- RETAINER, LOWER SPRING
96- RETAINER, BEARING
97- DAMPENER ASM, ROTATIONAL
98- SEAL, STEERING SHAFT
99- BUSHING, SEAL RETAINING
100- CONNECTOR, AXIAL POSN ASSUR
101- SENSOR ASM, STRG WHL POSN

SERVICE KITS
201- RACK SERV KIT, COL SECTOR &
202- SPRING SERV KIT, TILT COLUMN
203- COIL SERV KIT, SIR
204- SPHERE SERV KIT, TILT COLUMN
205- GREASE SERV KIT, (SYNTHETIC)
206- GREASE SERV KIT, BTSI
207- SERV KIT, ROTATIONAL DPNR
208- SWITCH SERV KIT, TURN SIGNAL
209- LOCK CYLINDER SERV KIT, STRG COL
