Brake Switch, Solenoids and VSS
Brake Switch, Solenoids and VSS

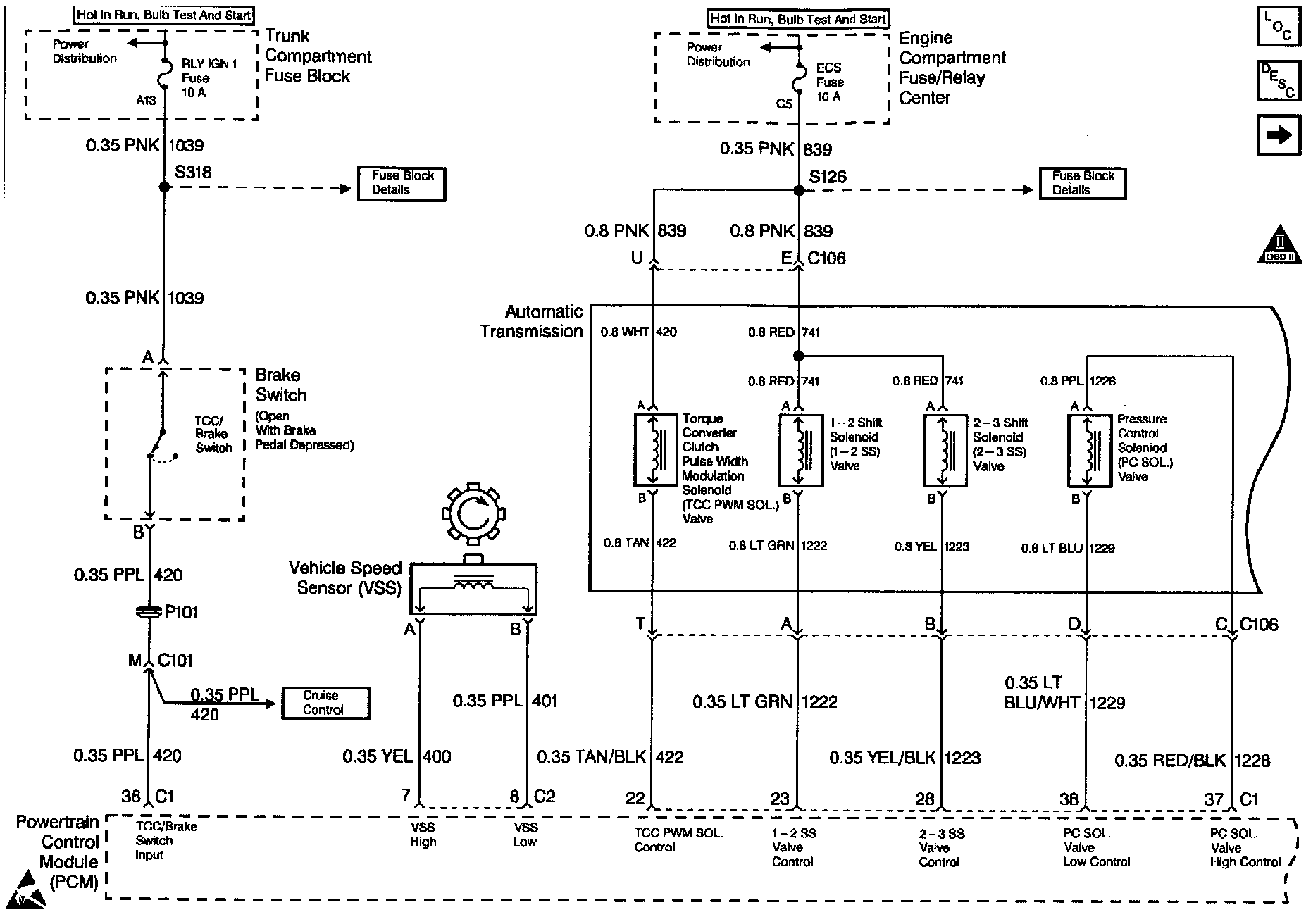

Automatic Transmission Controls-Cell 39 (Brake Switch, Solenoids,and VSS):
