Home >> Cadillac >> 1996 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> Trunk Compartment Fuse Block Fuses >> Convenc Fuse (20 Amp)

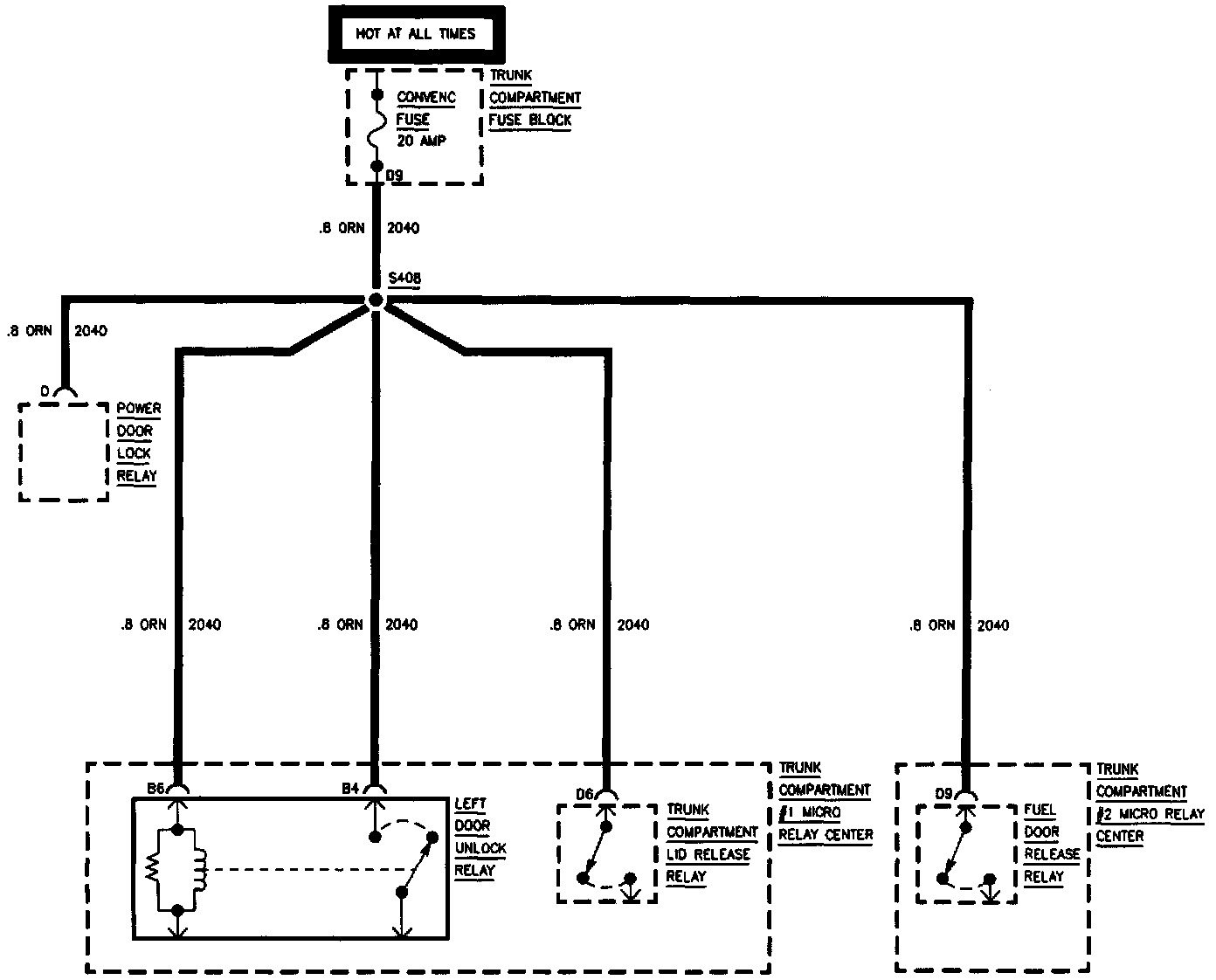

Convenc Fuse (20 Amp)

Trunk Compartment Fuse Block: CONVENC Fuse:
