Home >> Cadillac >> 1996 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> Engine Compartment Fuse/Relay Center Fuses >> INT LPS Fuse (10 Amp)

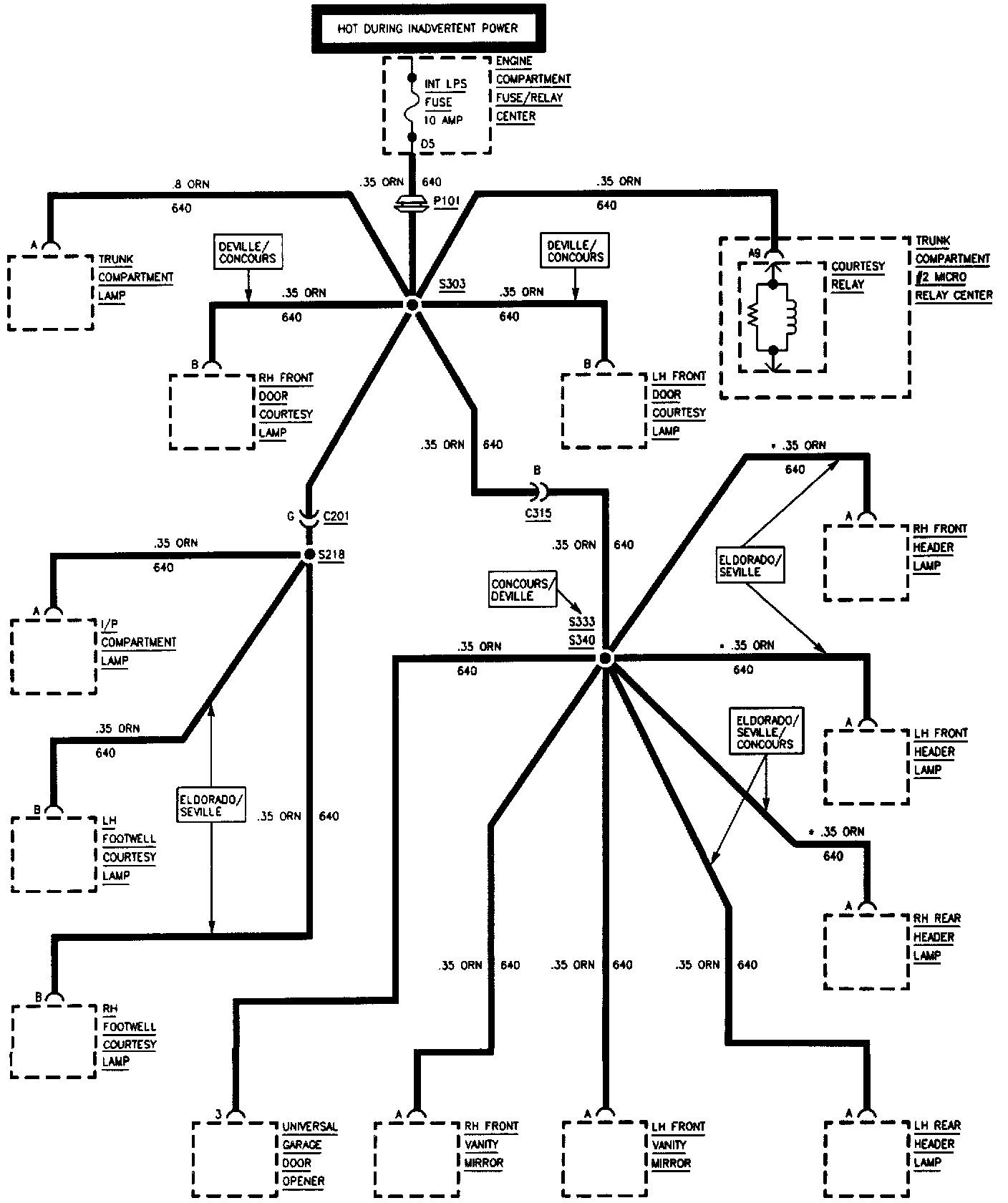

INT LPS Fuse (10 Amp)

Engine Compartment Fuse/Relay Center: INT LPS Fuse:
