Home >> Cadillac >> 1996 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G402

G402

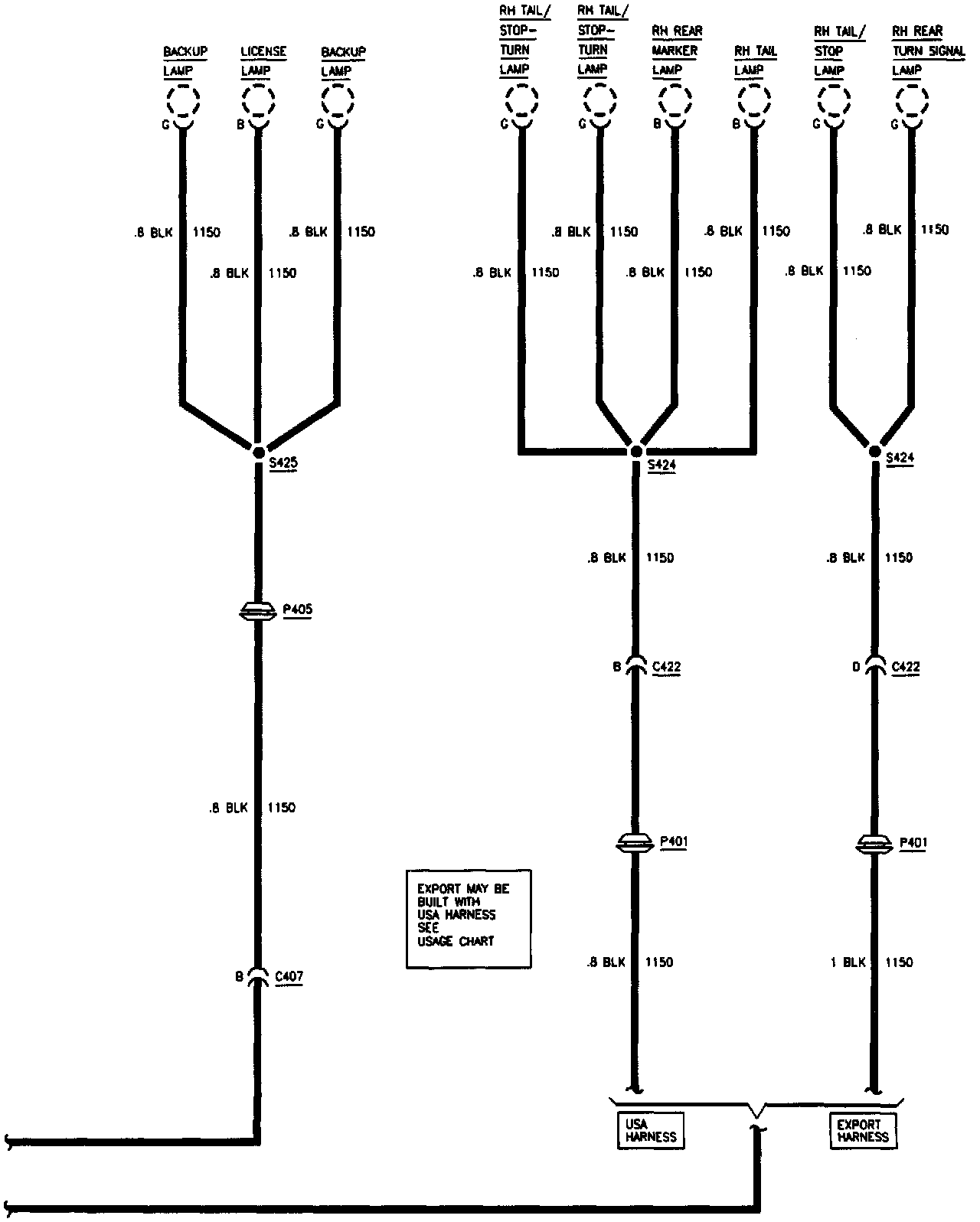

Ground Distribution: G402 (Part 1 Of 2):

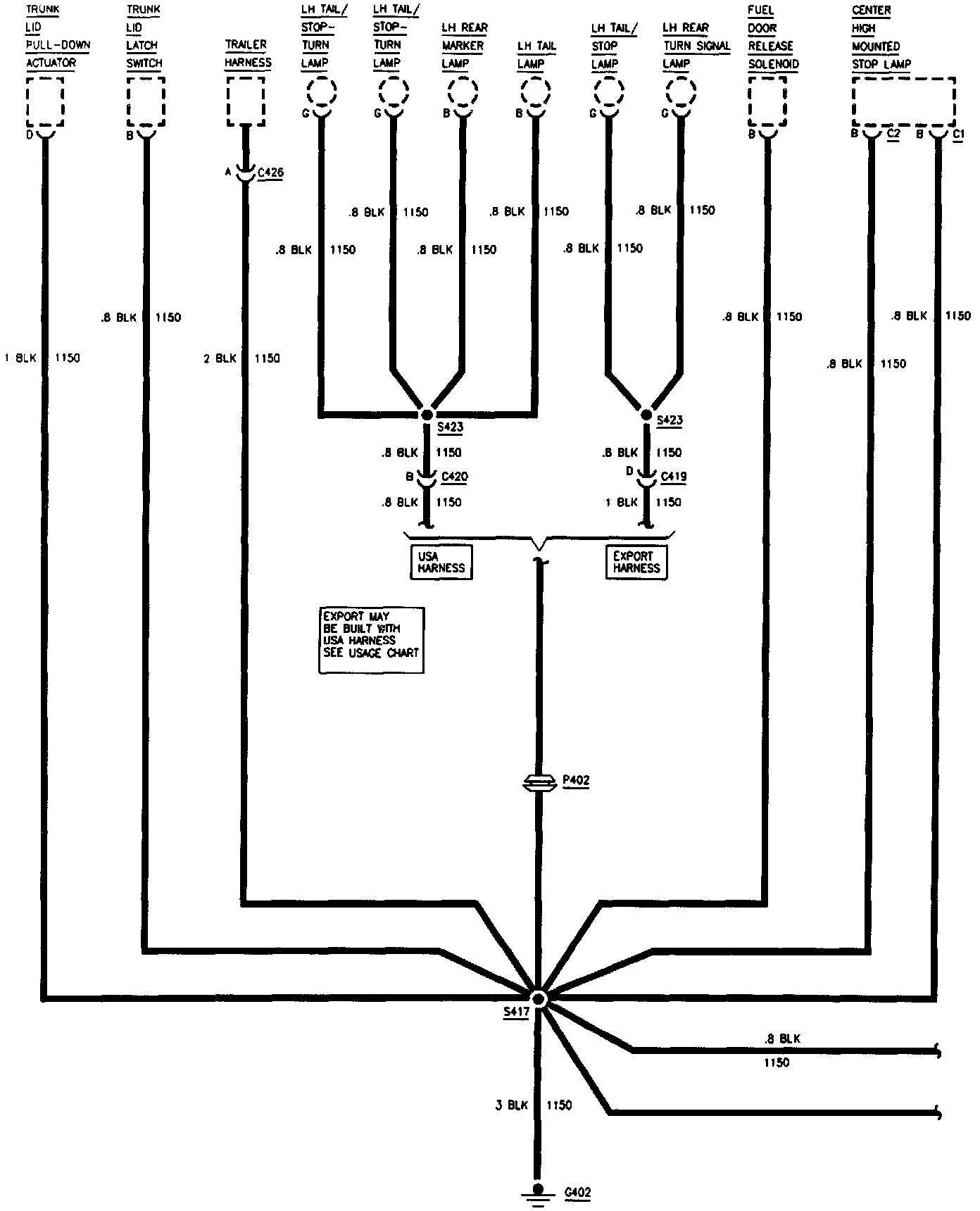

Ground Distribution: G402 (Part 2 Of 2):
