G101

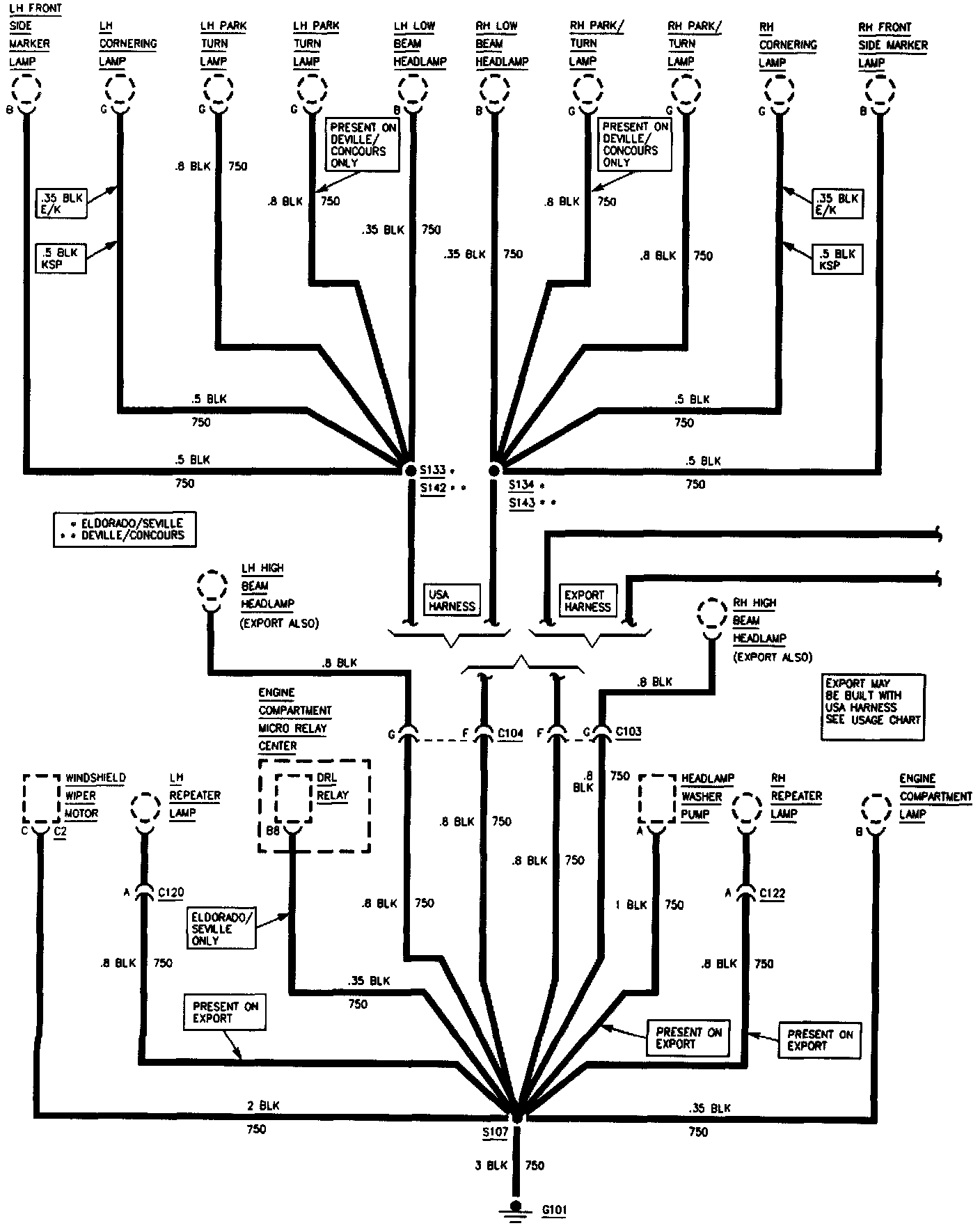

Ground Distribution: G101, G110, G405 (Part 1 Of 2):



Ground Distribution: G101, G110, G405 (Part 2 Of 2):
