Home >> Cadillac >> 1996 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Ground Distribution >> G205

G205

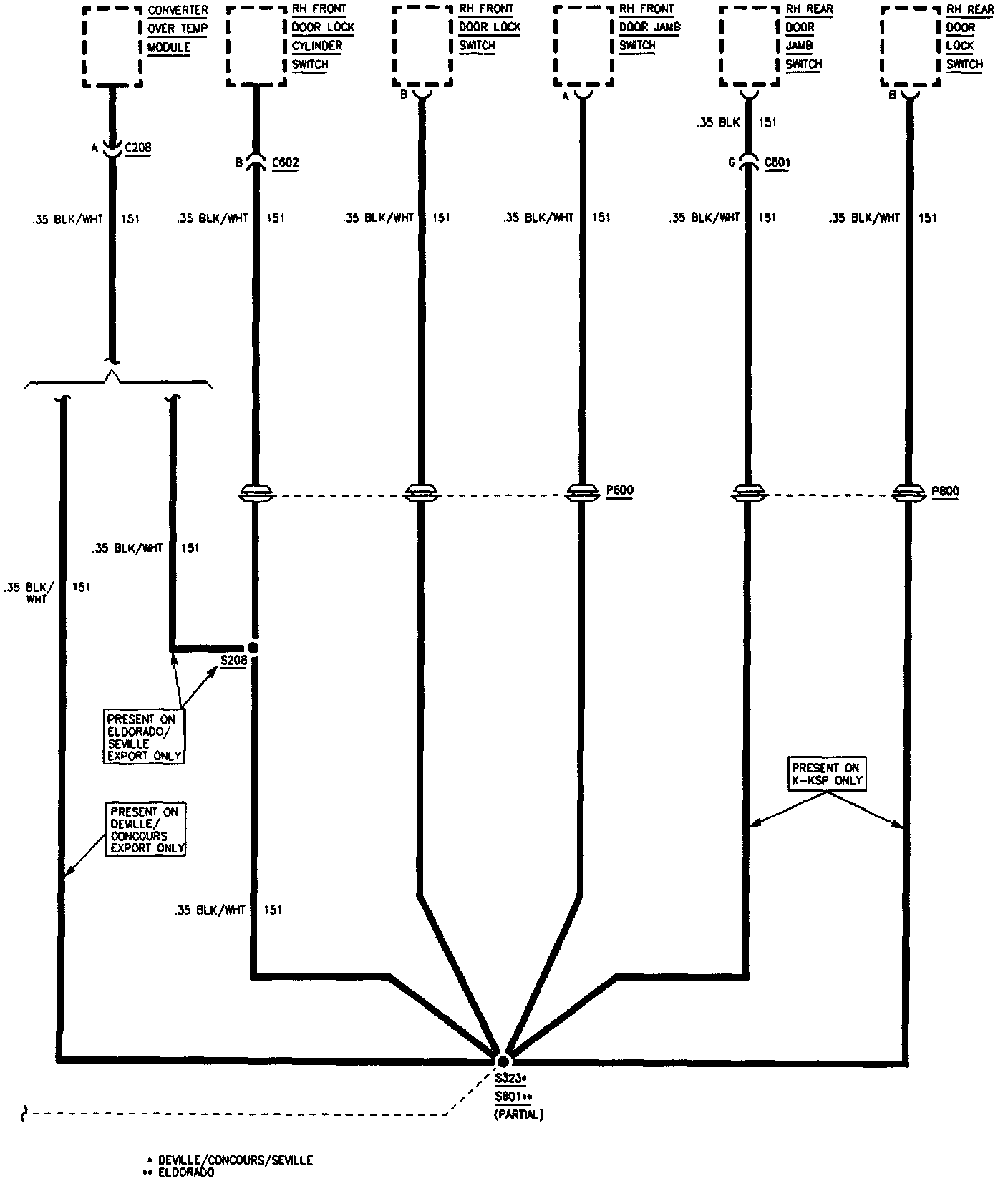

Ground Distribution: G205 (Part 1 Of 2):



Ground Distribution: G205 (Part 2 Of 2):
