Cadillac
>>
1996
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
MAF, EVAP and EGR
MAF, EVAP and EGR

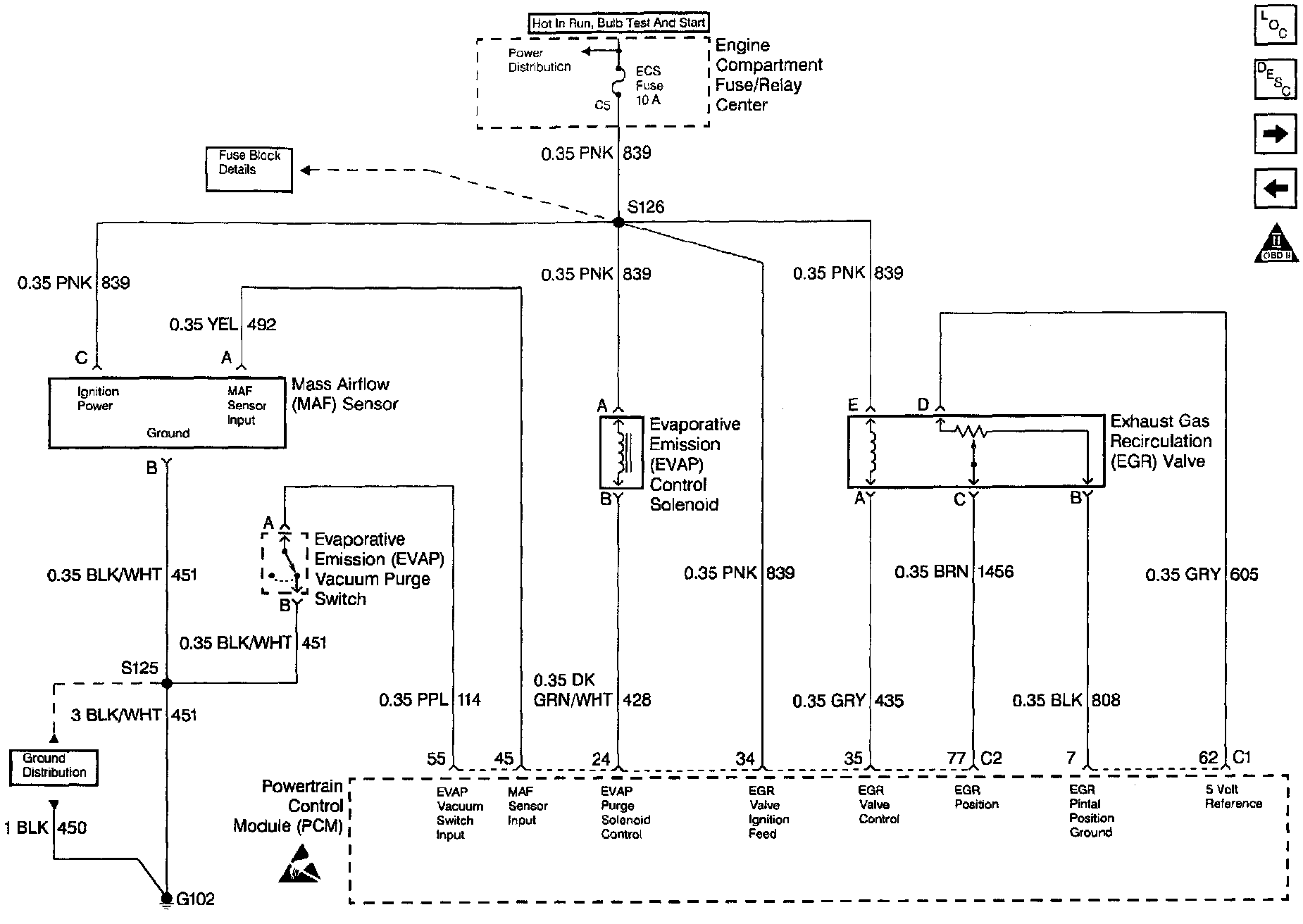

Engine Controls (MAF Sensor/ EVAP Components/ Linear EGR Valve):
