Cadillac
>>
1996
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>

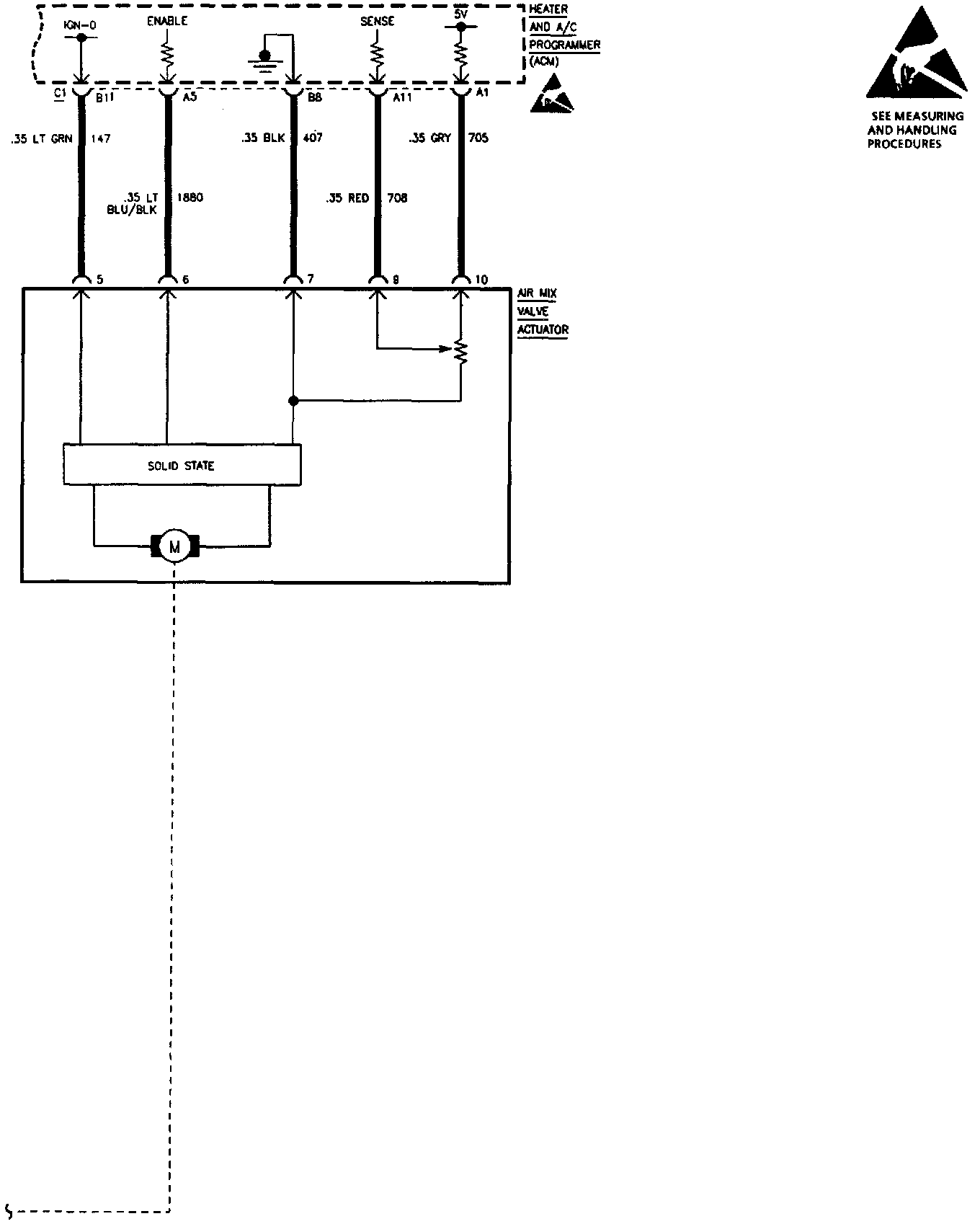

System Diagram
>>
Single Zone
Single Zone

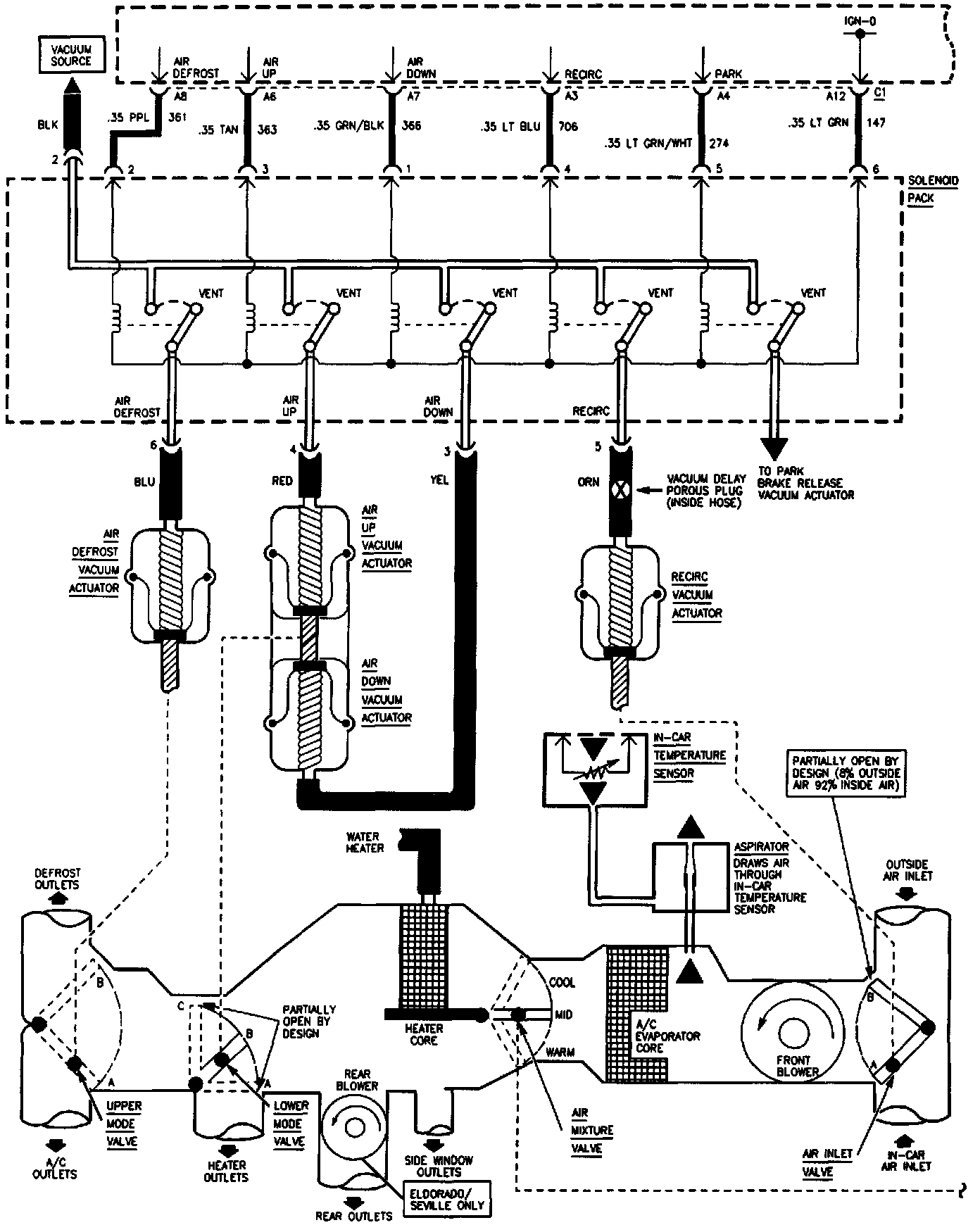

Air Delivery (Single Zone):
Air Delivery (Single Zone):
