Home >> Cadillac >> 1996 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Blower Controls >> Rear Blower

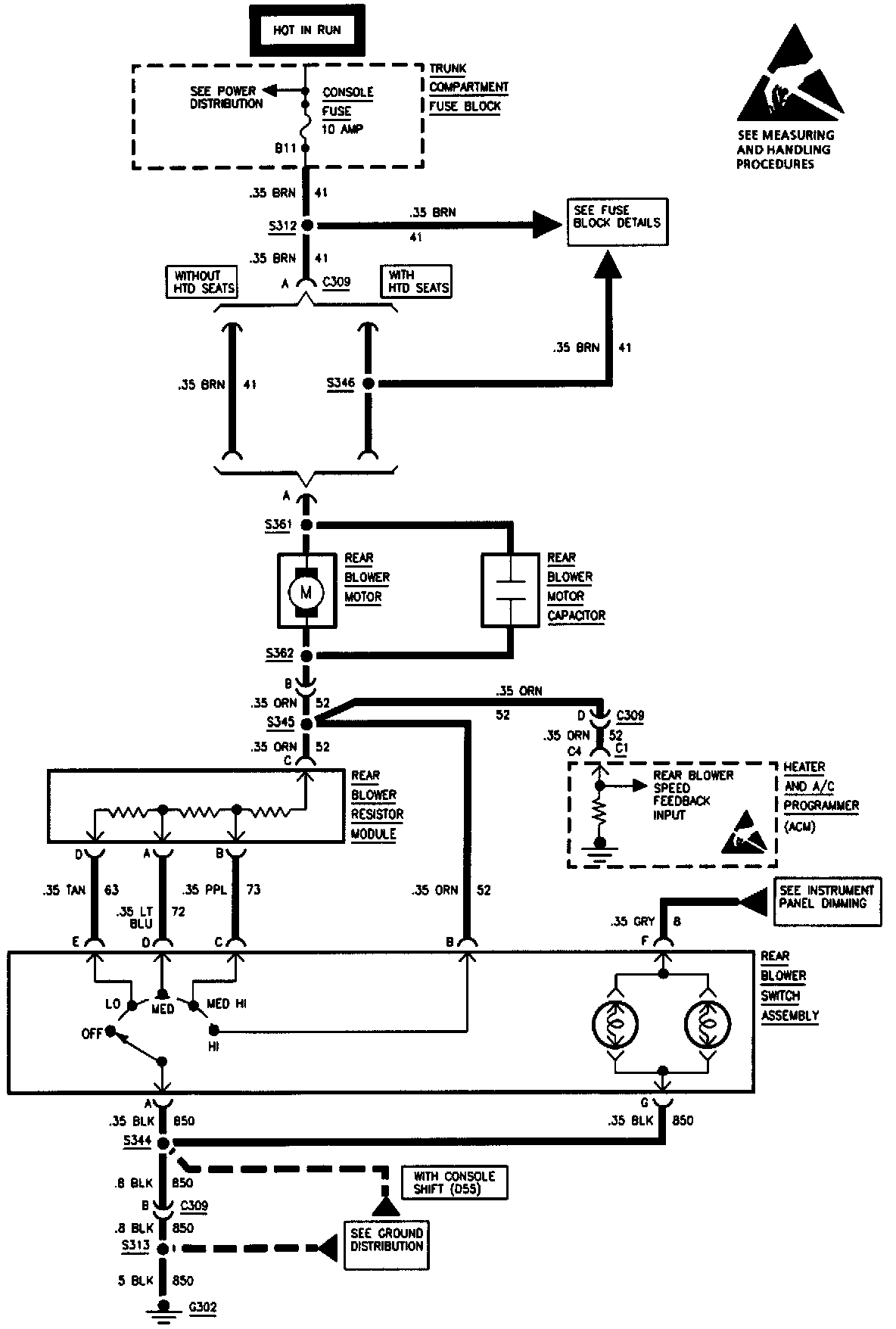

Rear Blower

Air Conditioning: Blower Controls-Rear Blower:
