Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram
Description:

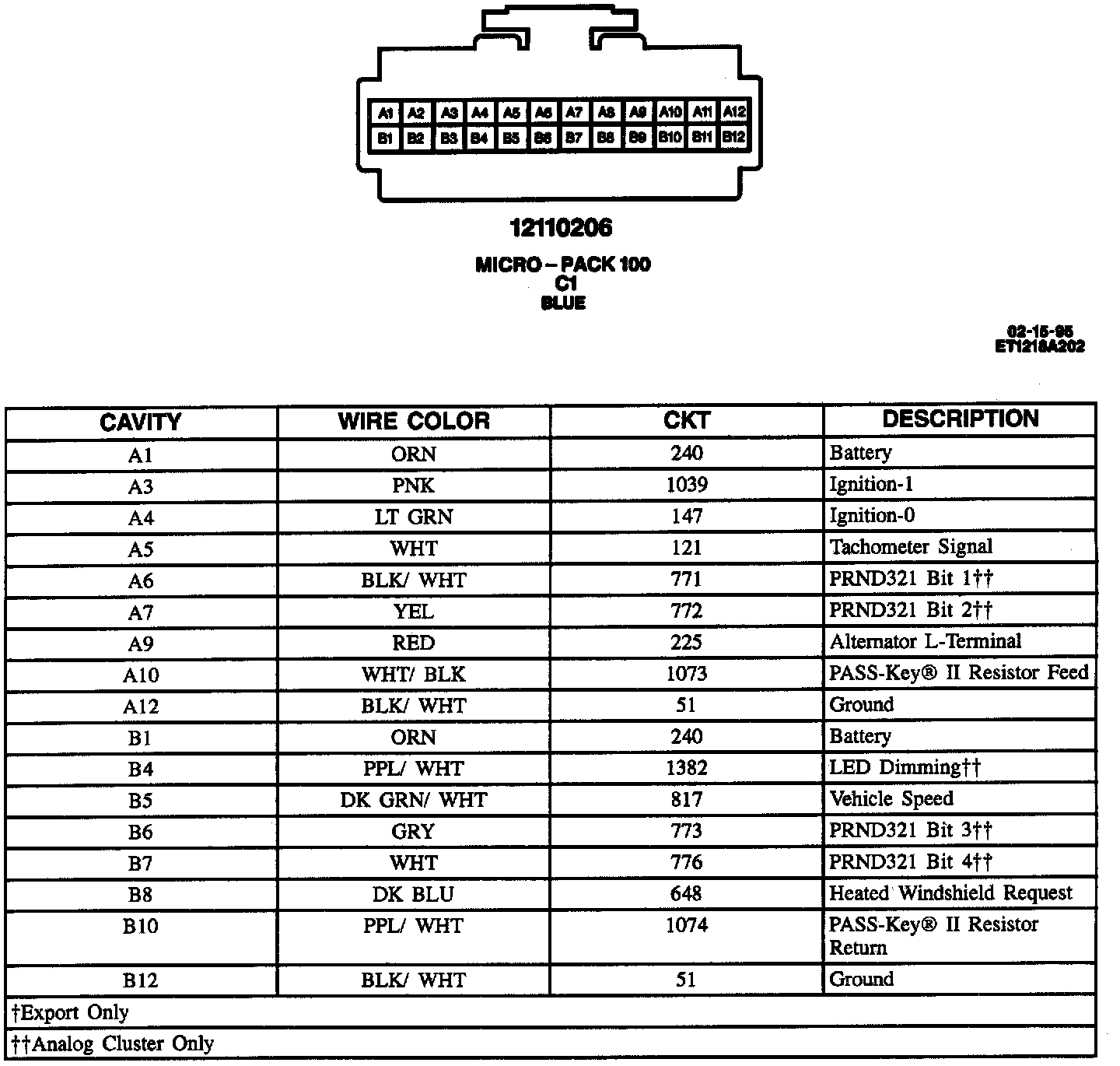

Blue - C1
Description:

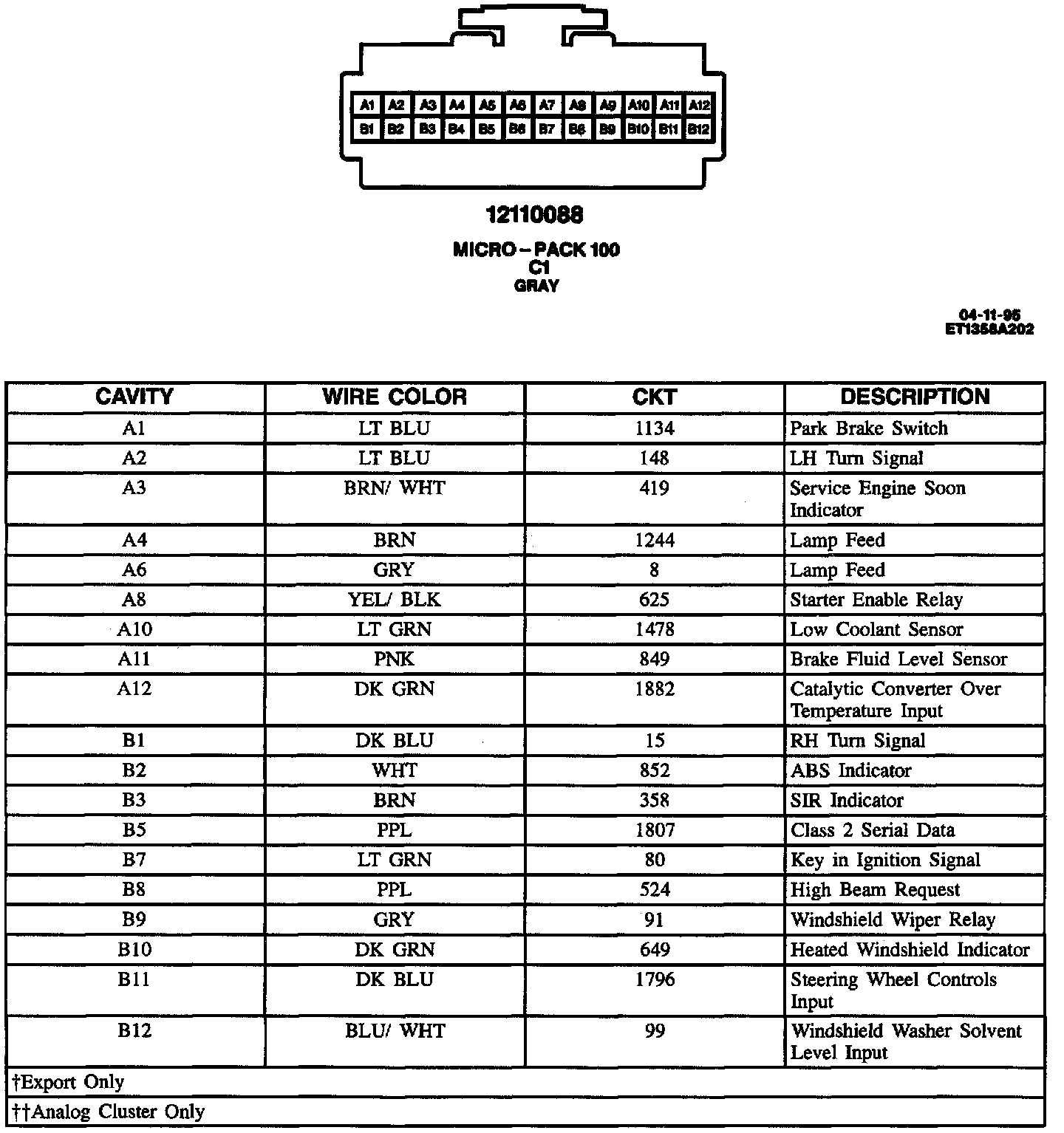

Gray - C1
Description:

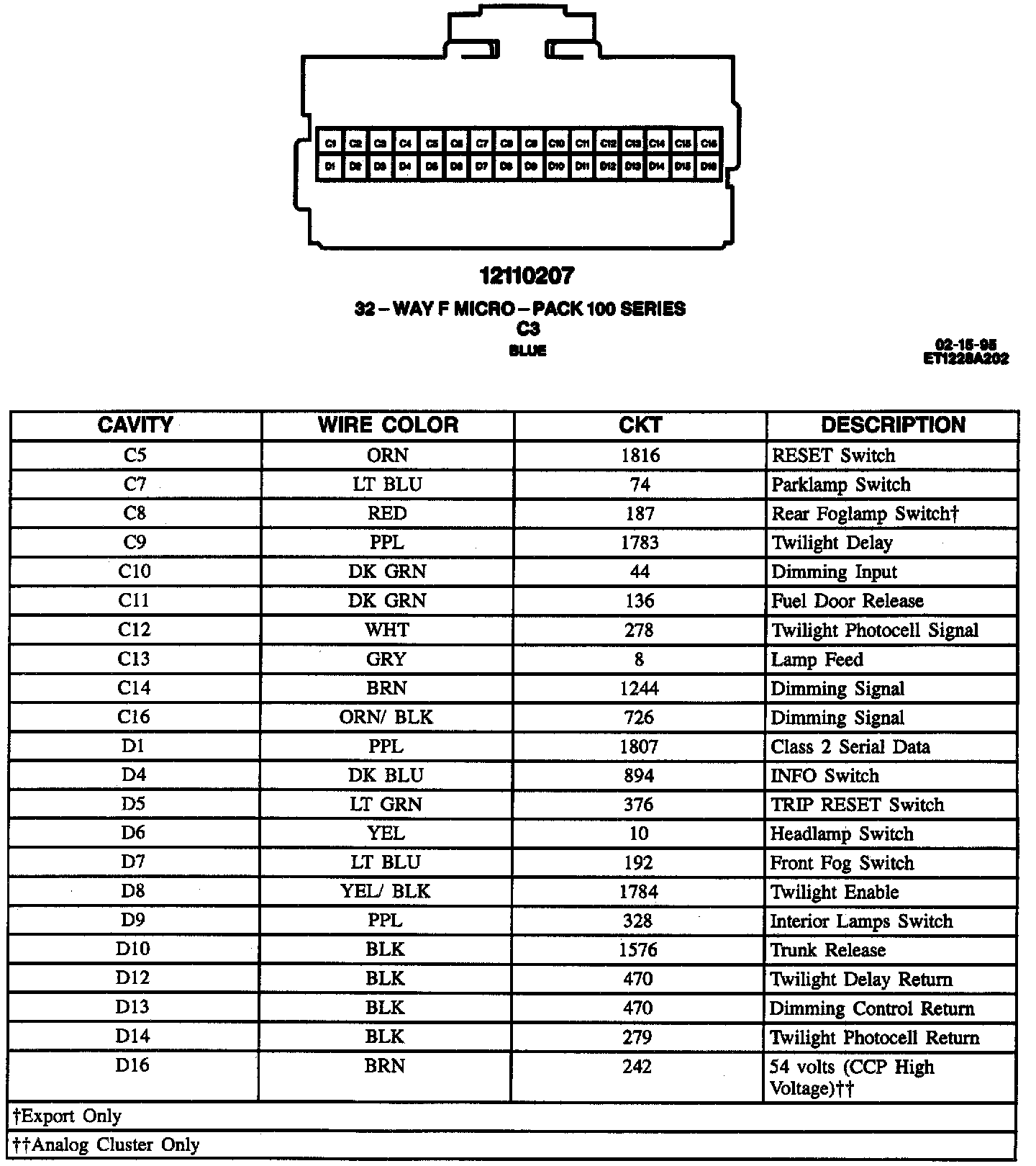

Blue - C3
