PCM Power & Grounds
PCM Power & Grounds

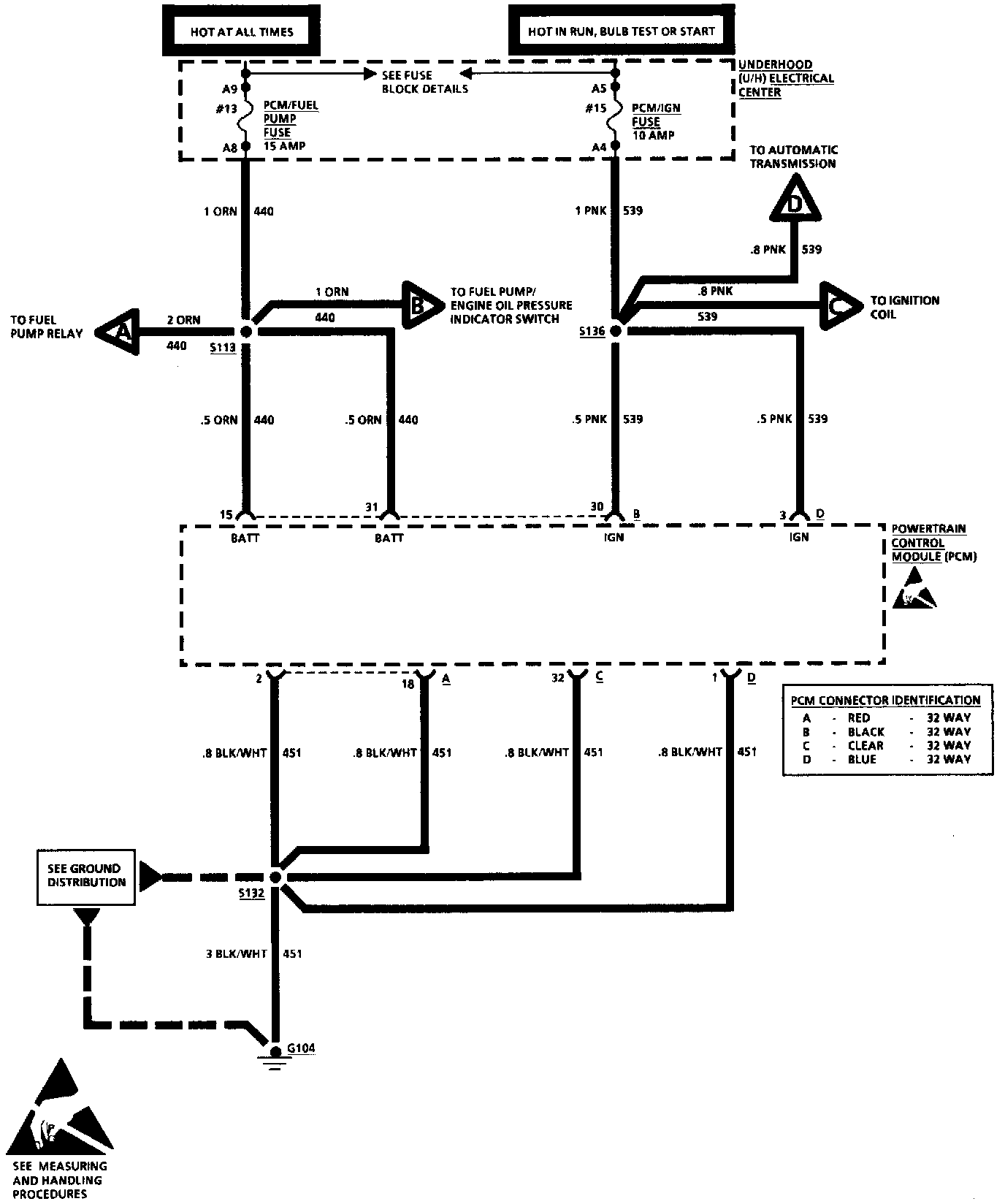

Sequential Multiport Fuel Injection (SMFI): PCM Power & Grounds:
