Cadillac
>>
1994
>>
Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Malfunction Indicator Lamp & Data Link Connector
Malfunction Indicator Lamp & Data Link Connector

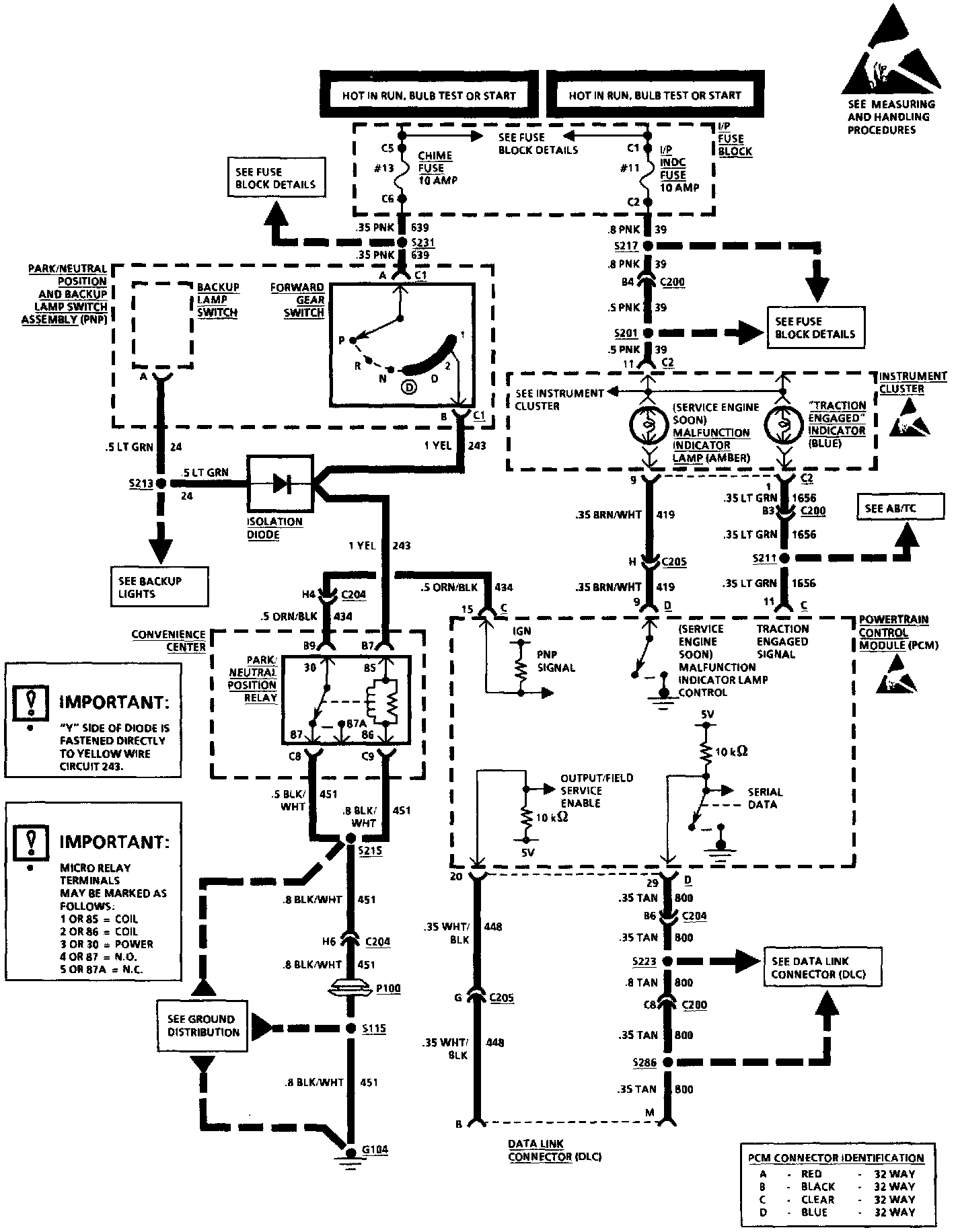

Sequential Multiport Fuel Injection (SMFI): MIL & DLC:
