Home >> Cadillac >> 1994 >> Fleetwood V8-5.7L VIN P >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Emission Controls, Power Steering Oil Level & PASS-Key

Emission Controls, Power Steering Oil Level & PASS-Key

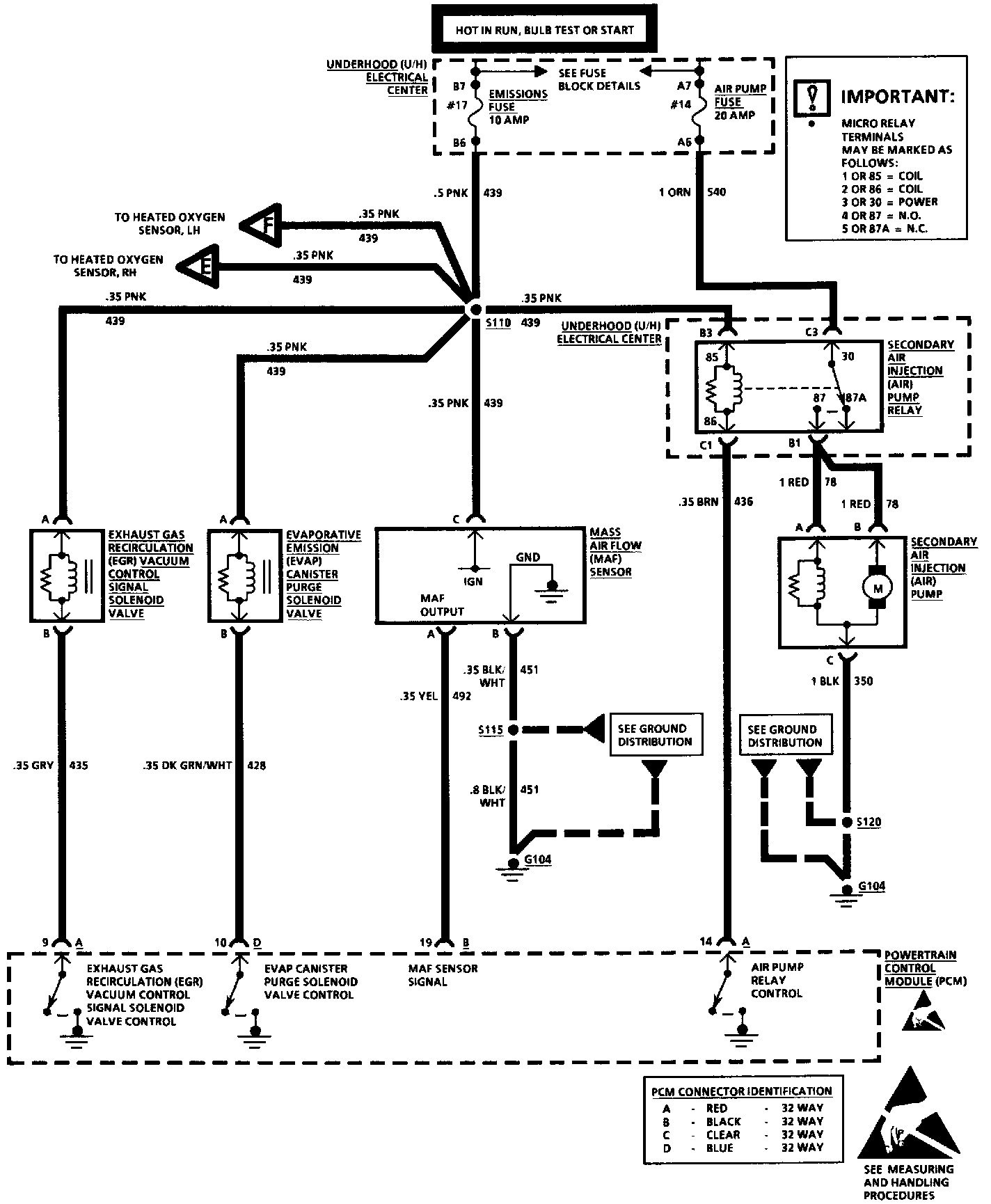

Sequential Multiport Fuel Injection (SMFI): Emission Controls:

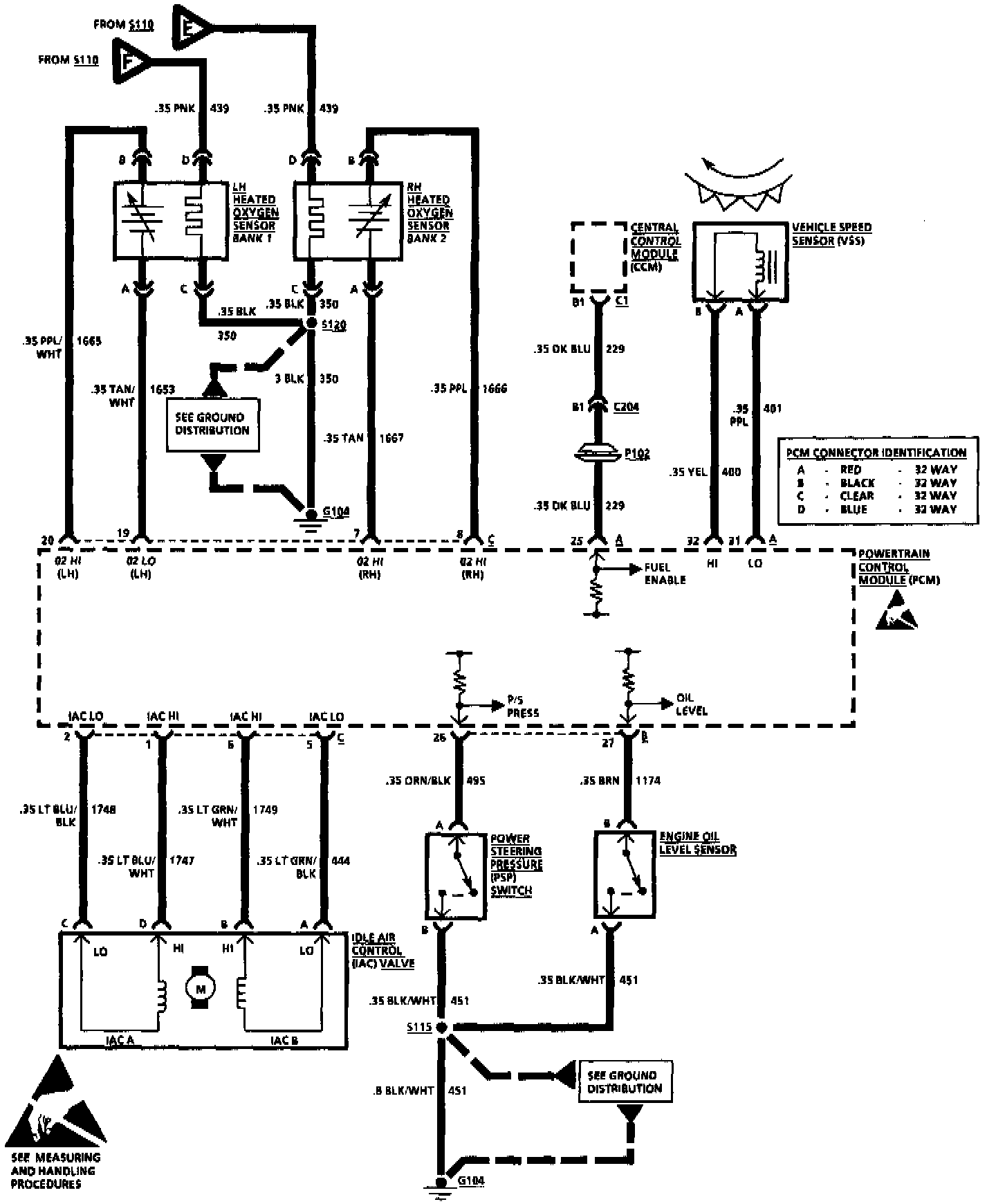

Sequential Multiport Fuel Injection (SMFI): Emission Controls, Power Steering, Oil Level & Passkey:
