Underhood Electrical Center

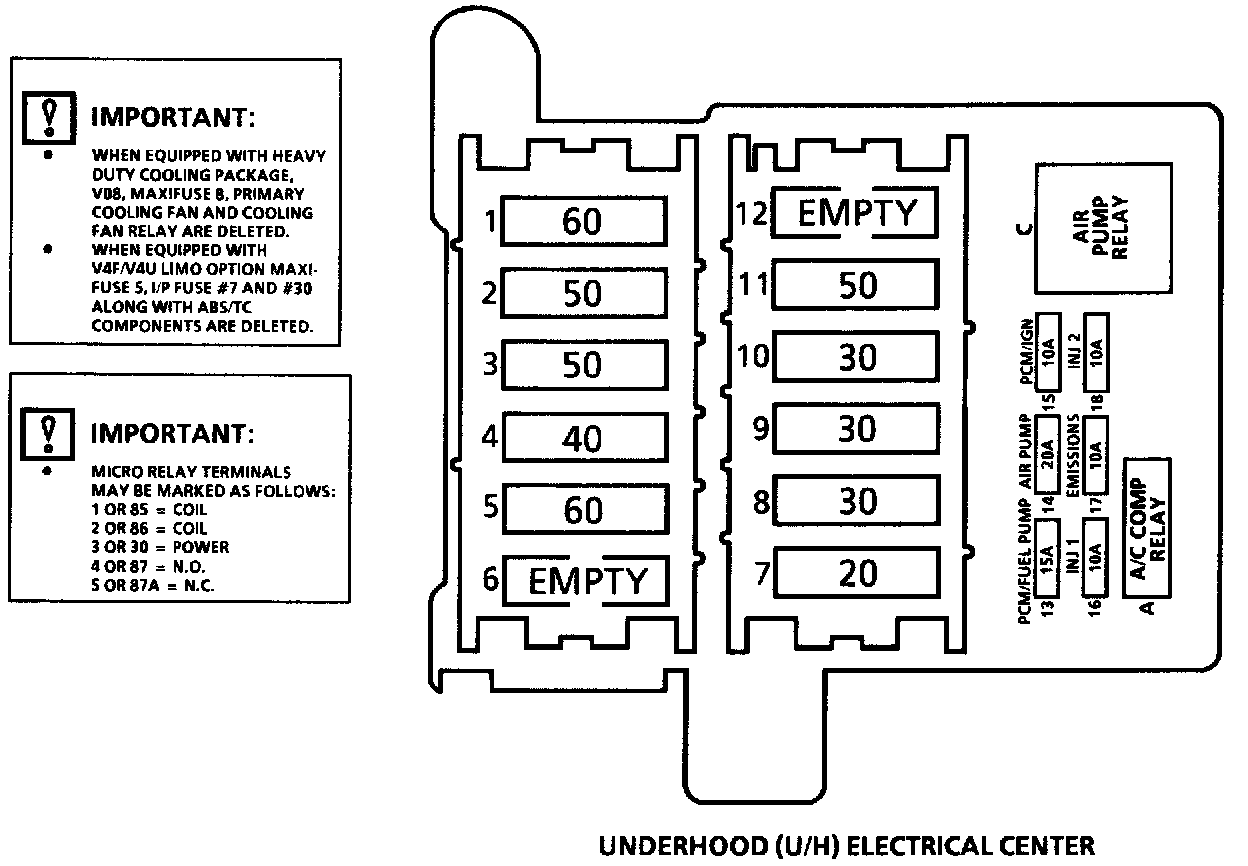

Underhood (U/H) Electrical Center:

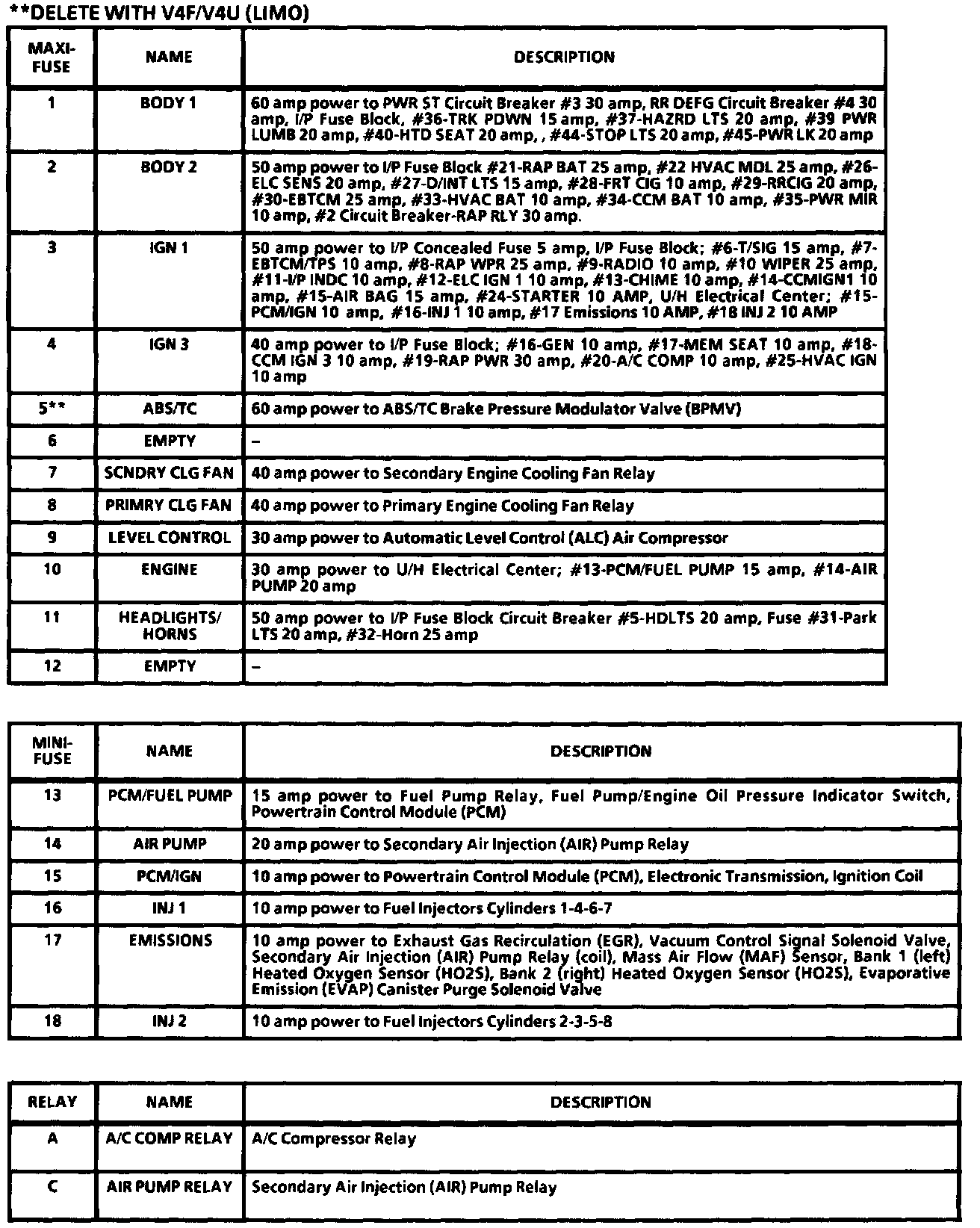

Underhood (U/H) Electrical Center Details, Cont.:
