Home
>>
Cadillac
>>
1994
>>
Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

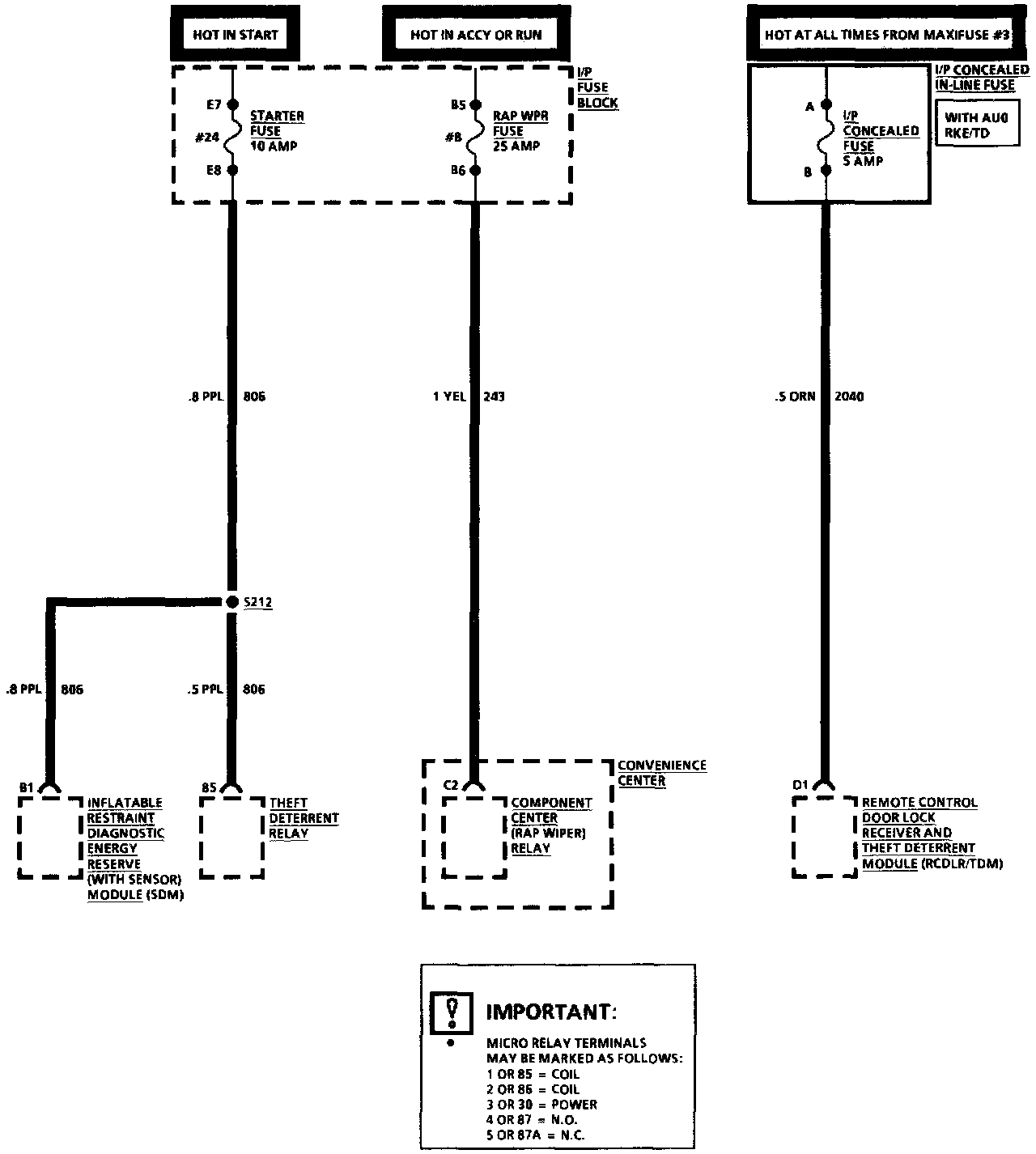

Power: Instrument Panel Fuse Block & Underhood Electrical Center & I/P Concealed Fuse:
