I.P. Fuse Block & Ignition Switch
I.P. Fuse Block & Ignition Switch

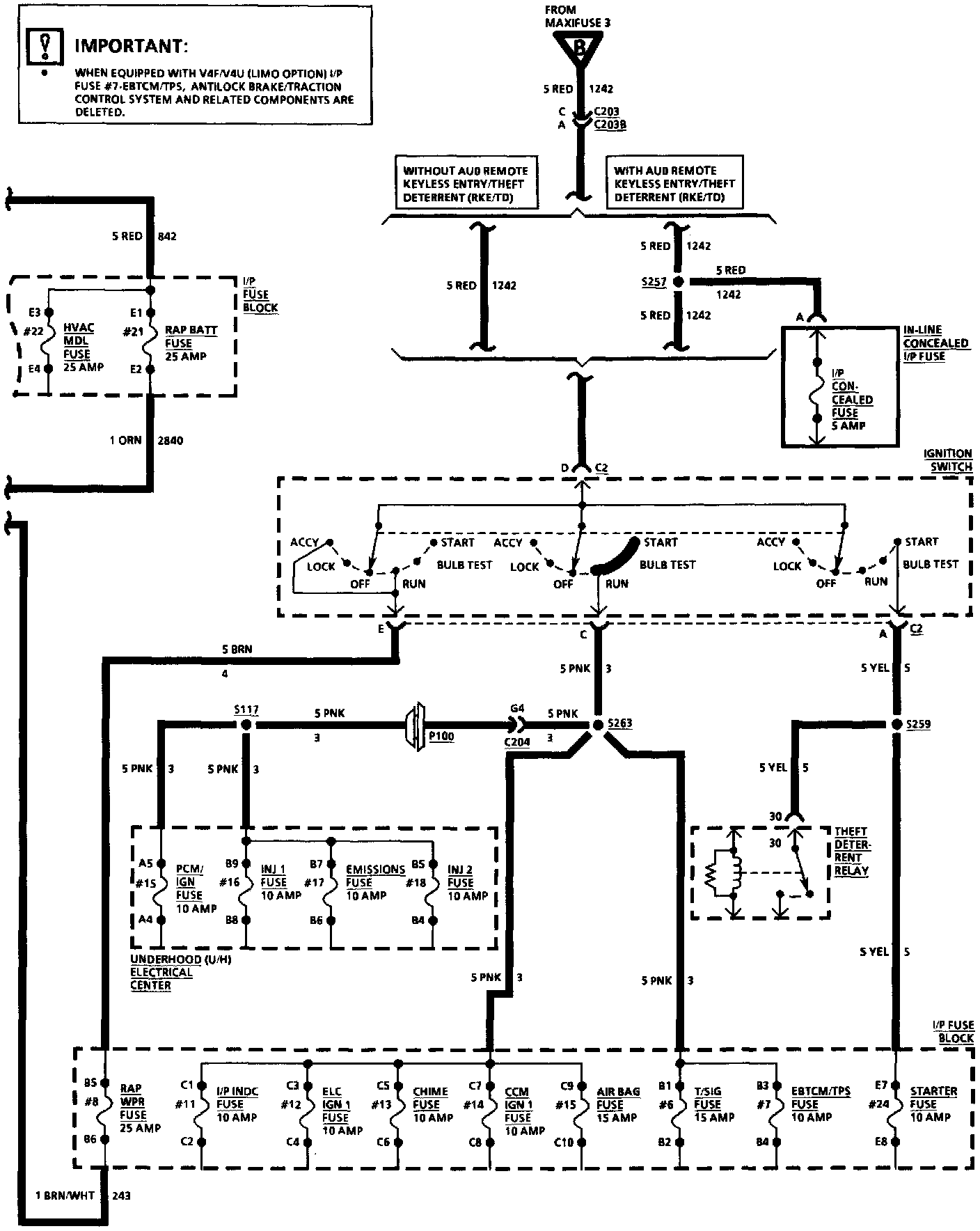

Power Distribution: I/P Fuse Block:

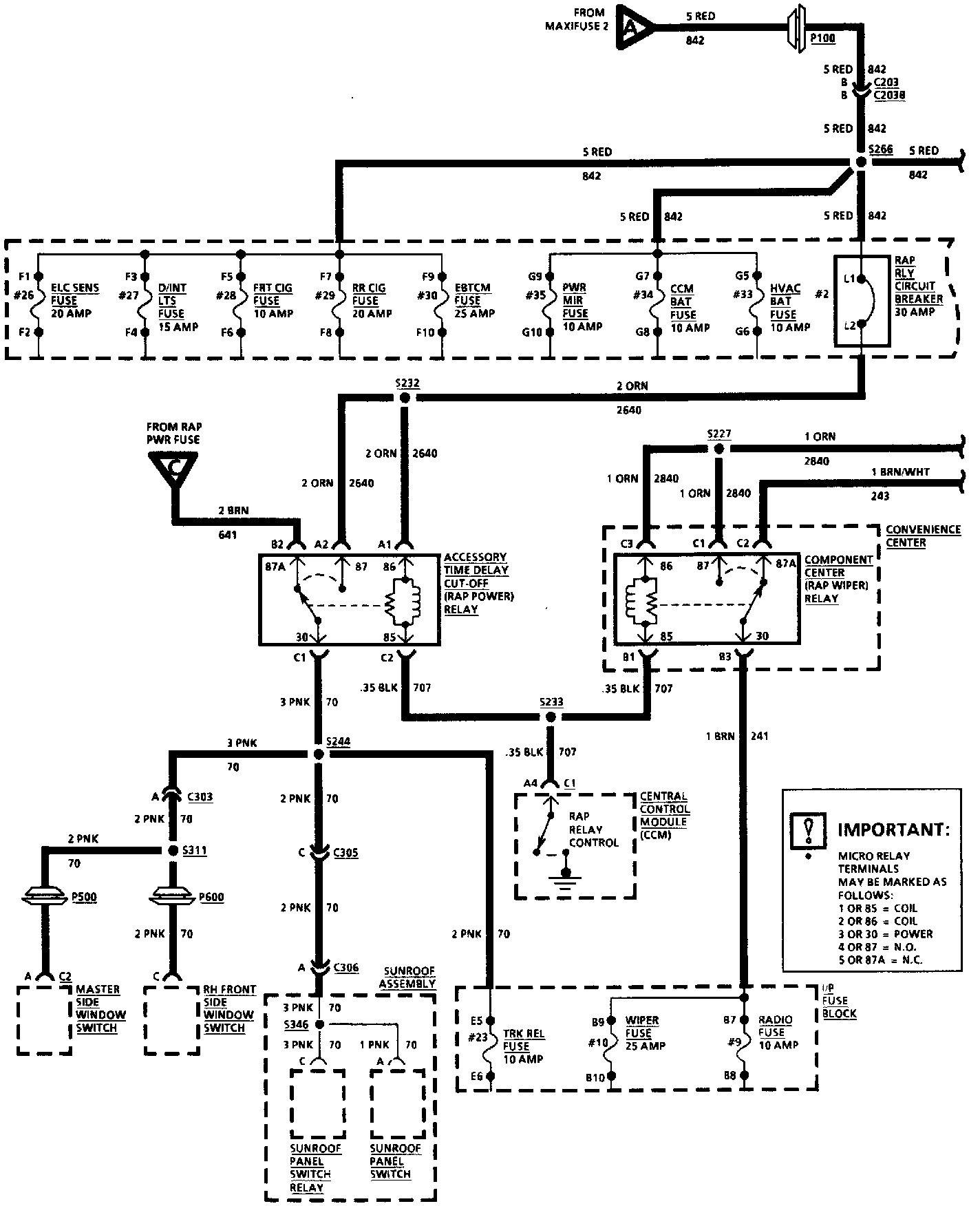

Power Distribution: I/P Fuse Block:
