G400

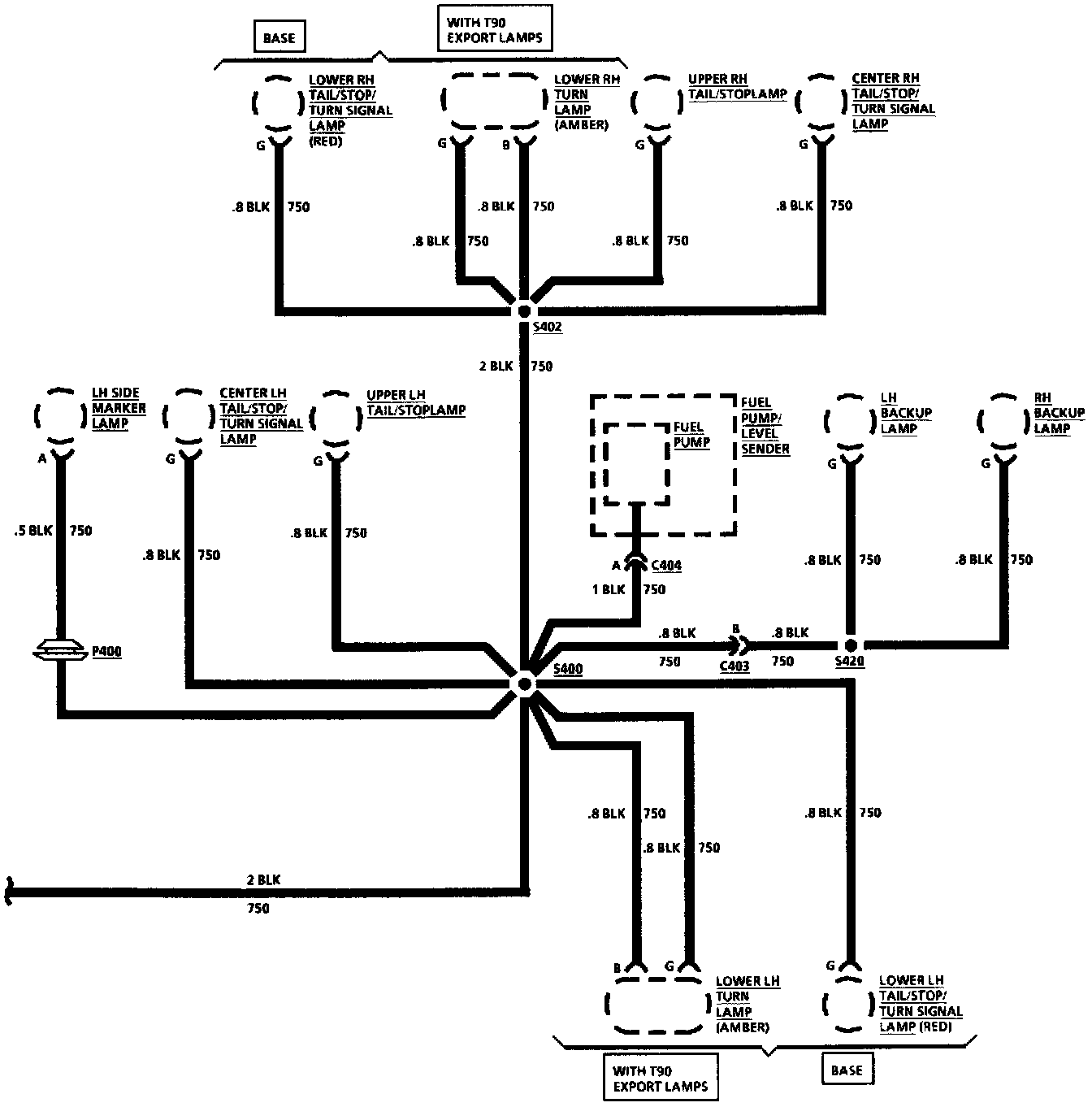

Ground Distribution G400 (Partial):

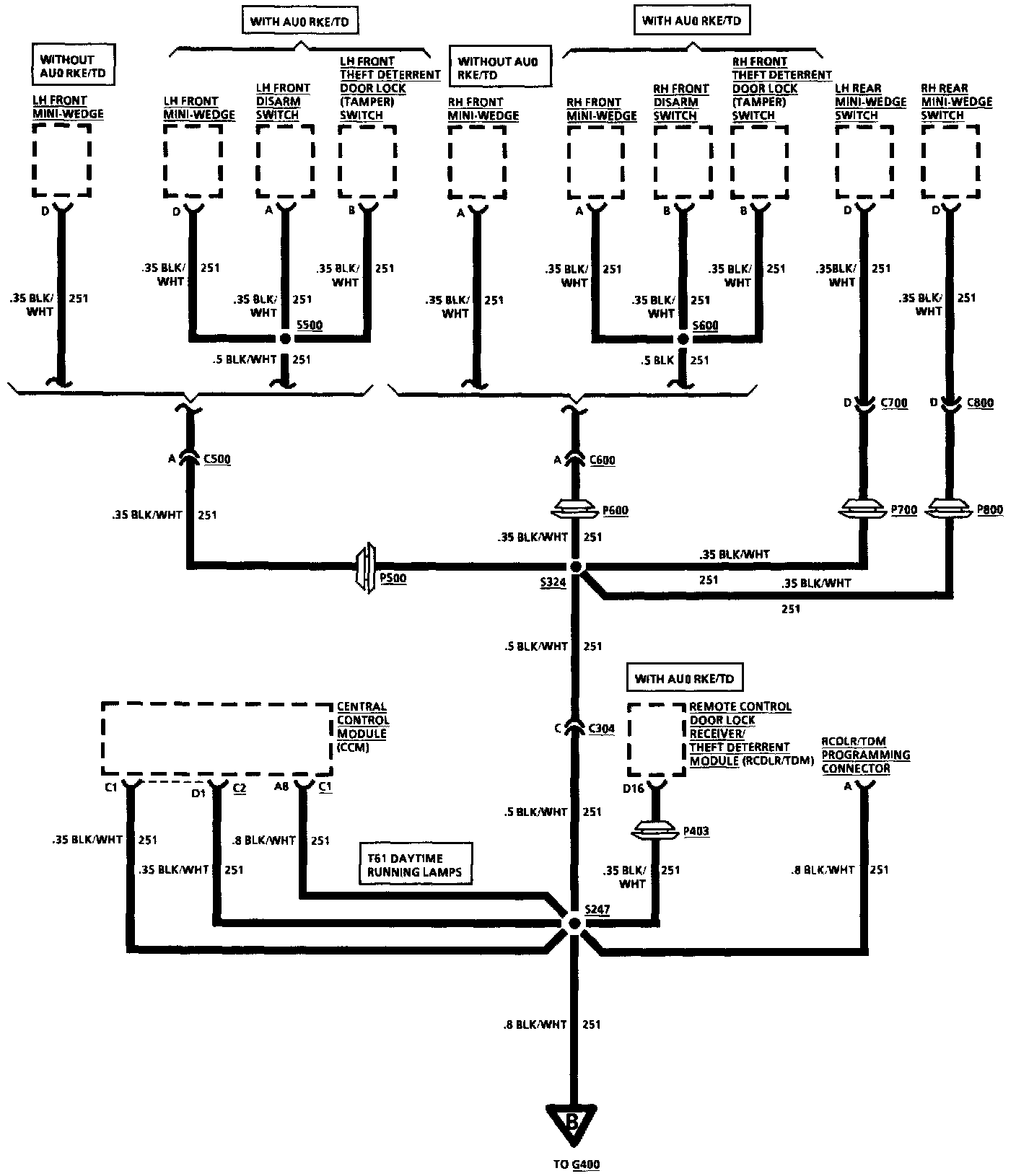

Ground Distribution:

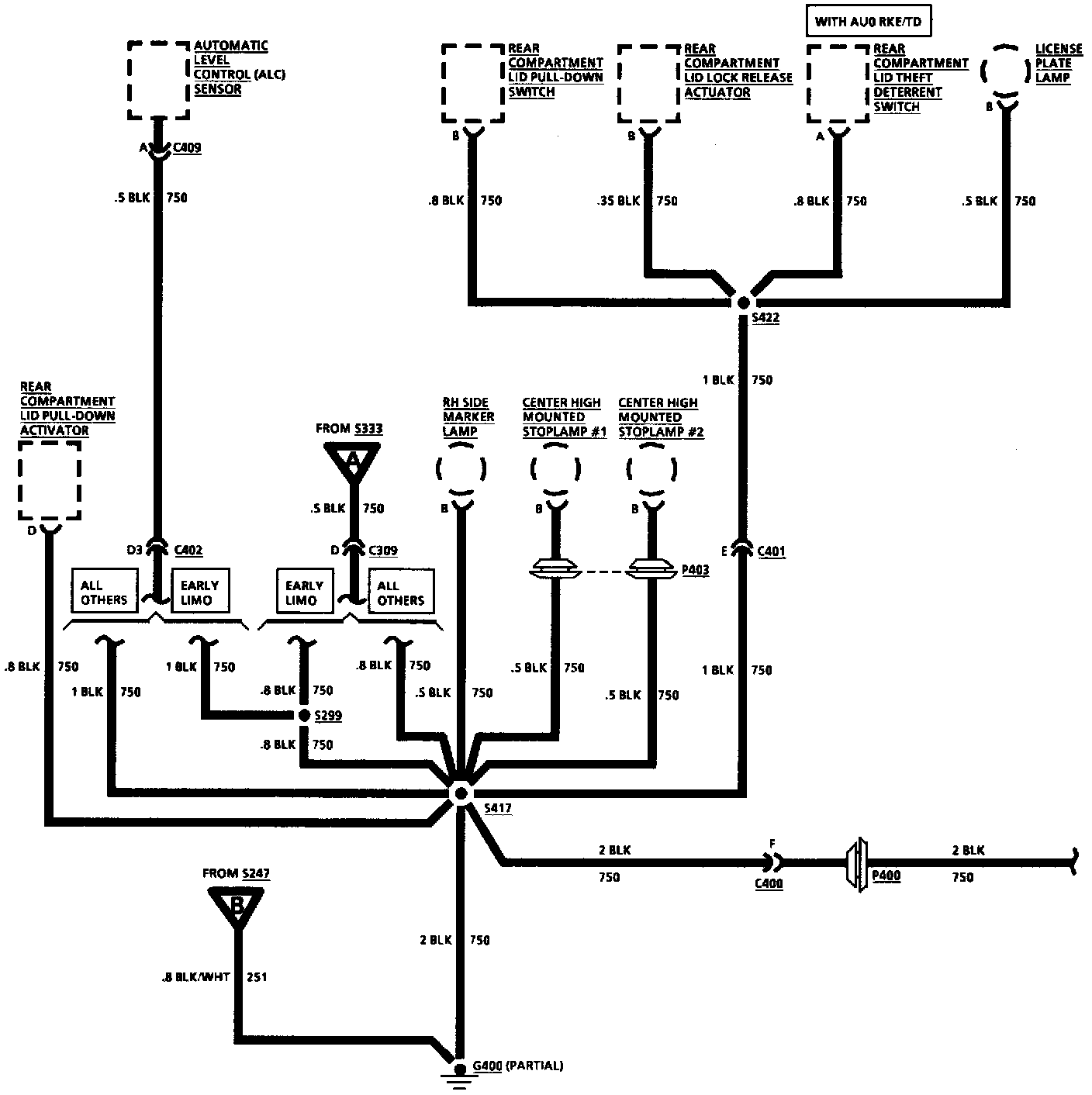

Ground Distribution G400 (Partial):



Ground Distribution:

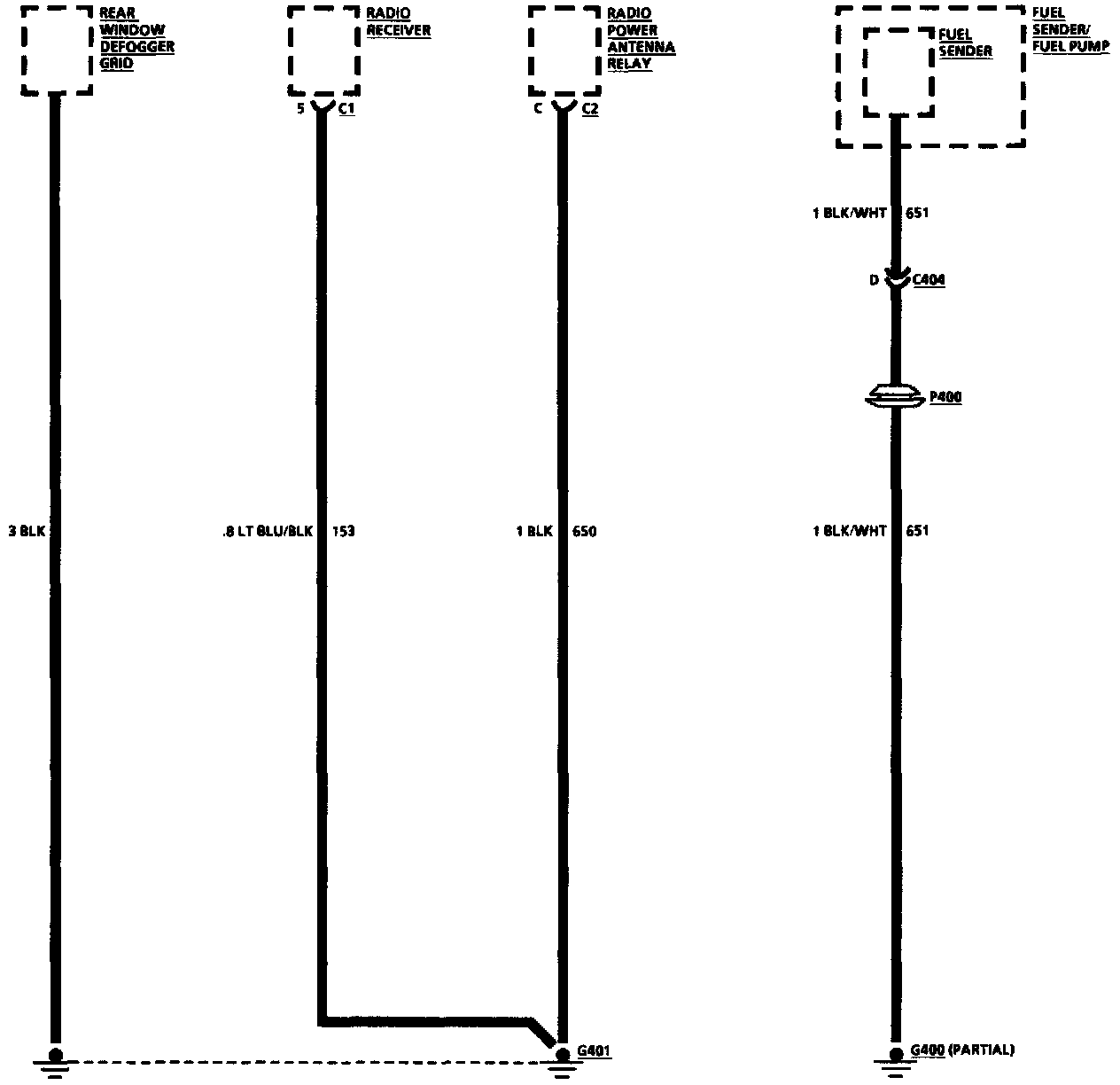

Ground Distribution G400 And G401:
