G200

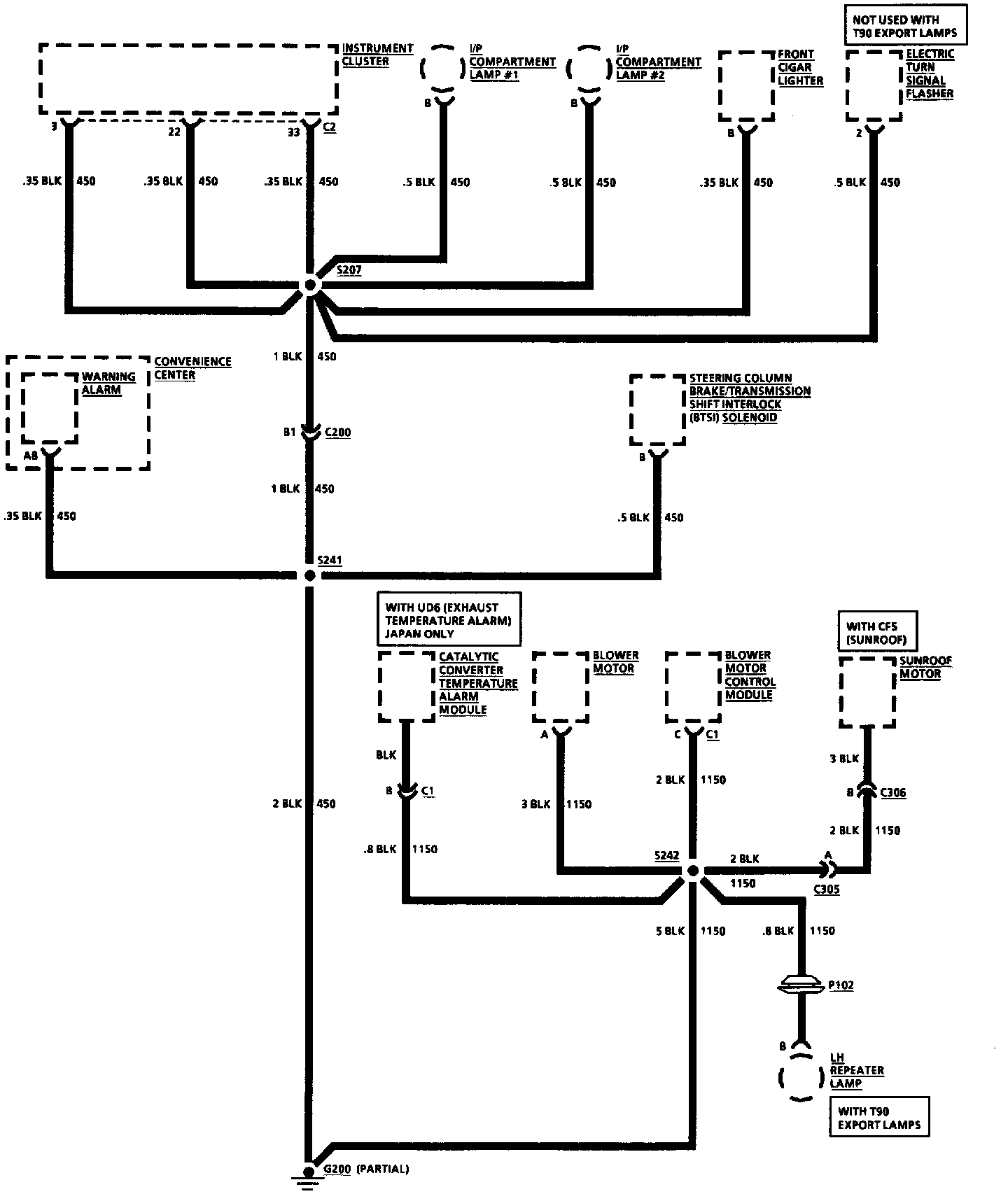

Ground Distribution G200:



Ground Distribution G200:



Ground Distribution G200, G201 And G207:
