Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Diagrams
>>
Instrument Panel Fuse Box
>>

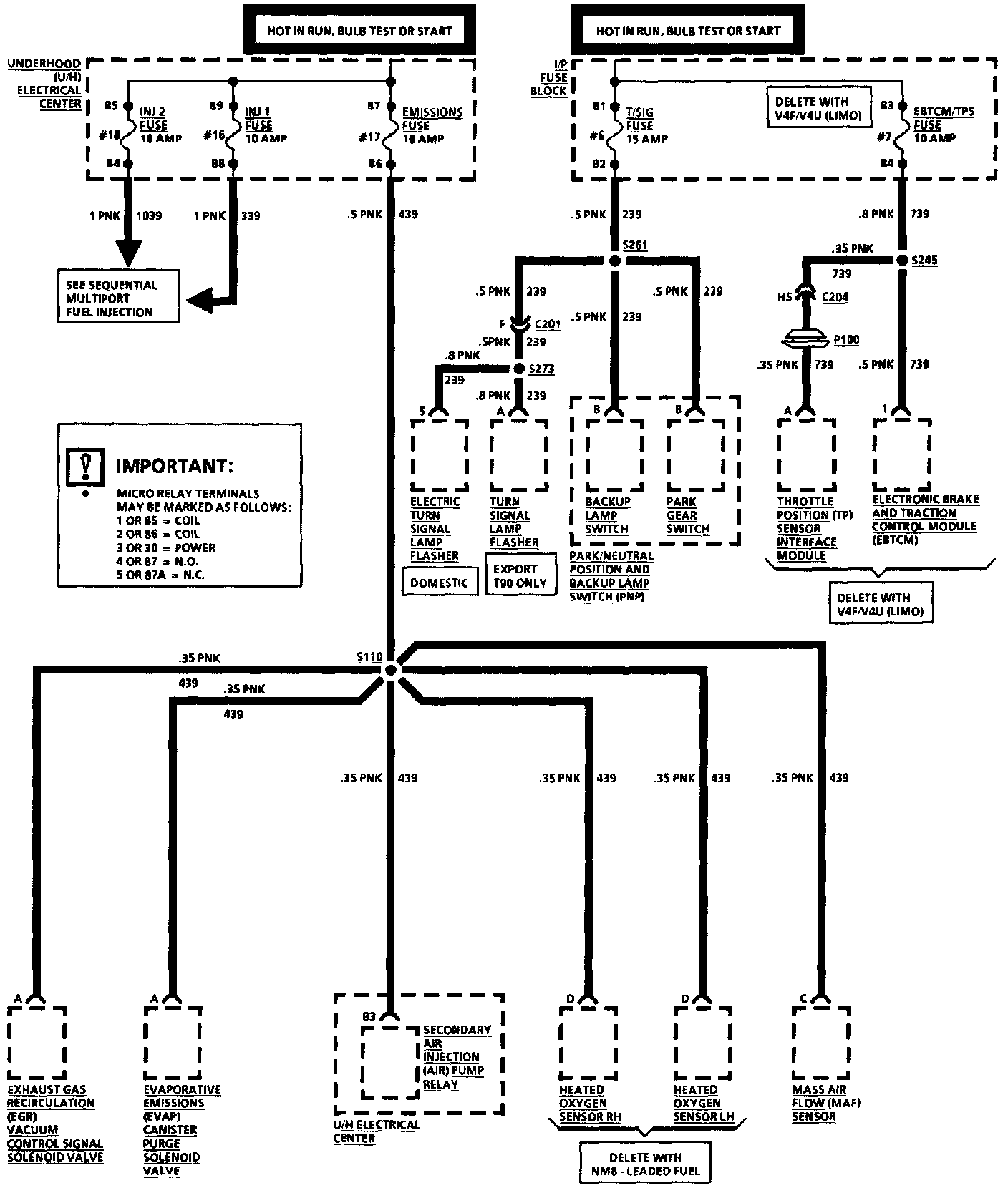

Fuse Numbers 6 & 7
Fuse Numbers 6 & 7
Power: Instrument Panel Fuse Block & Underhood Electrical Center:
