IP Cluster

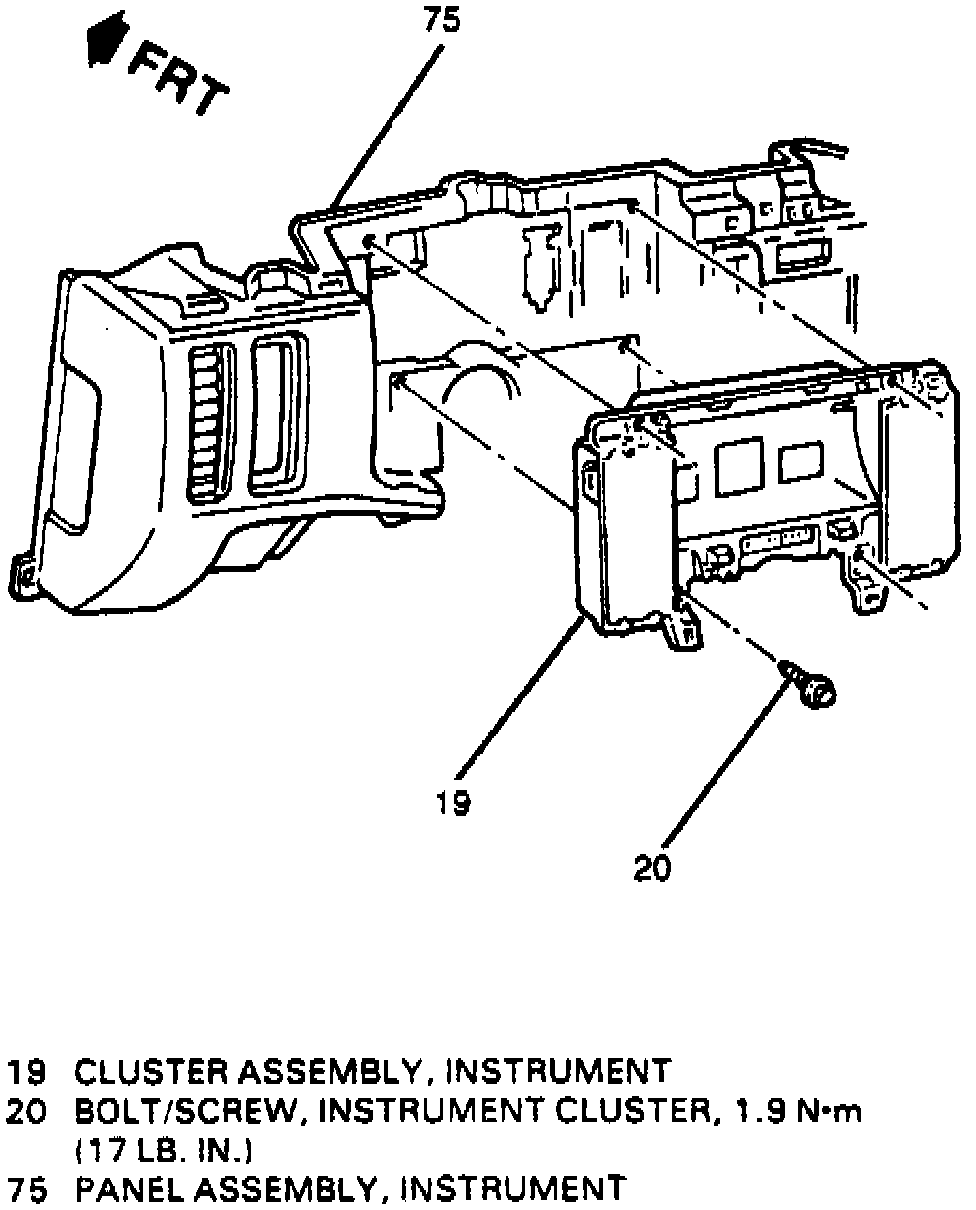

Fig. 16 Instrument Cluster Replacement:

1. Remove instrument panel left sound insulator assembly.
2. Remove instrument panel driver knee bolster deflector.
3. Remove steering column tilt lever assembly.
4. Remove cluster trim plate.
5. Disconnect transmission shift indicator cable.
6. Remove instrument cluster attaching screws, Fig. 16 then remove cluster.
7. Reverse procedure to install.
