Home
>>
Cadillac
>>
1994
>>
Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
C2
C2

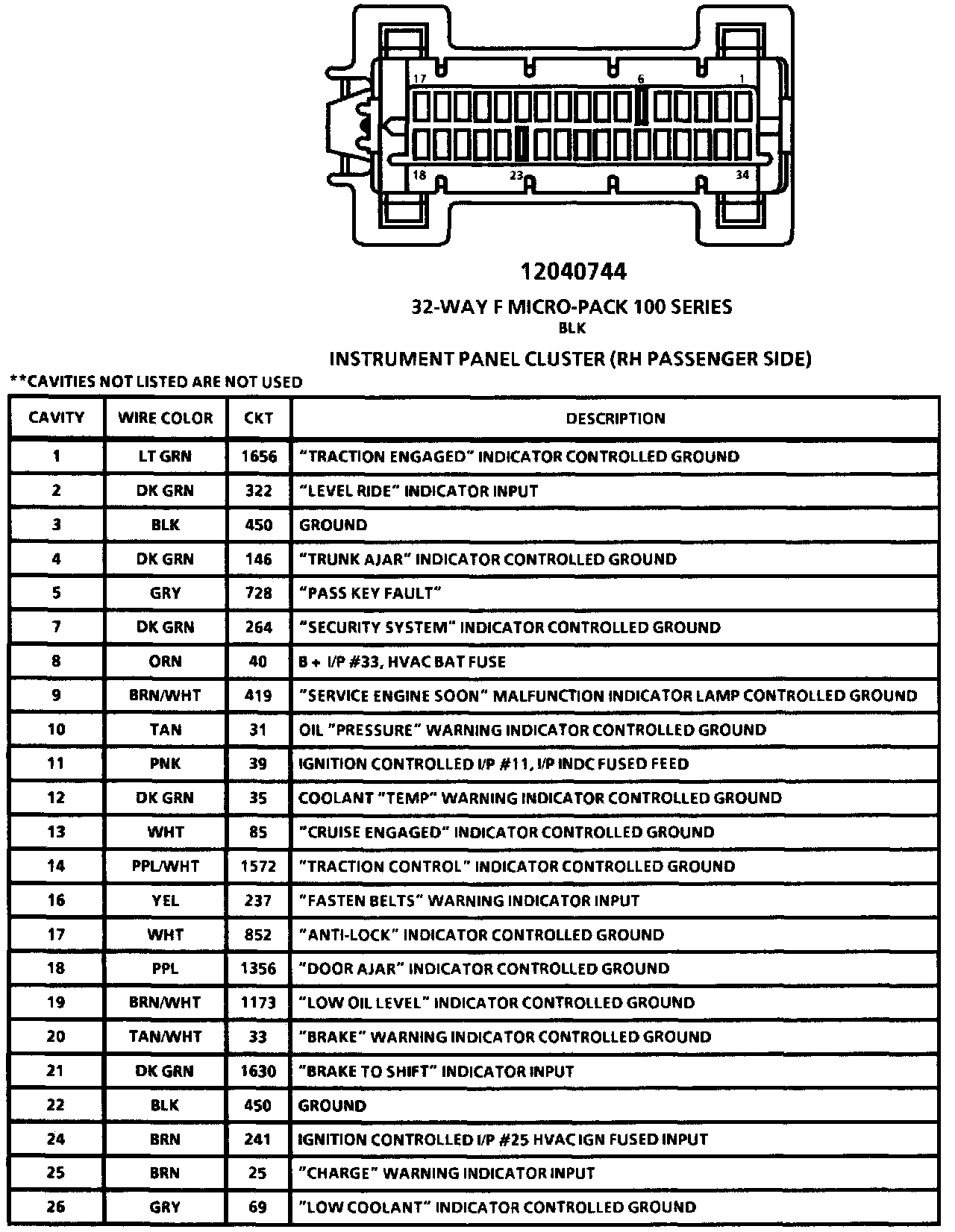

Passenger Side Connector Pin Information:

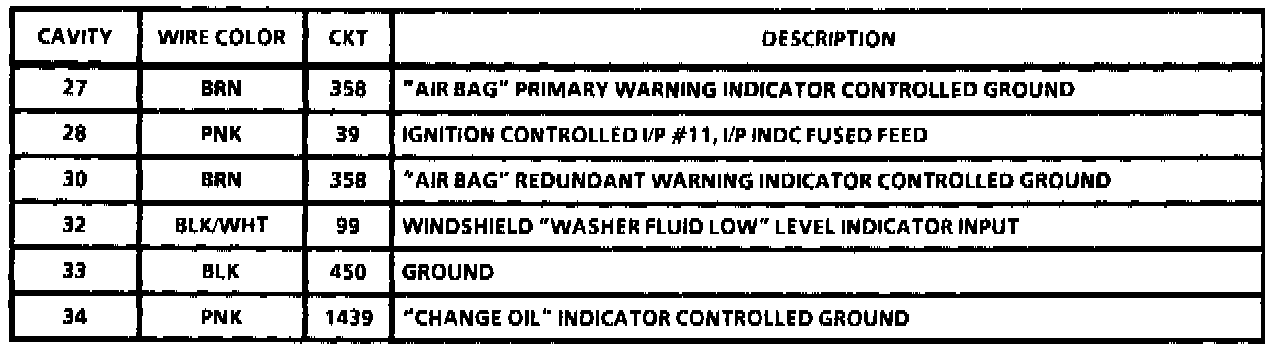

Passenger Side Connector Pin Information, Cont.:
