Cadillac
>>
1994
>>
Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Steering
>>
Speed Sensitive Steering (SSS) System
Speed Sensitive Steering (SSS) System

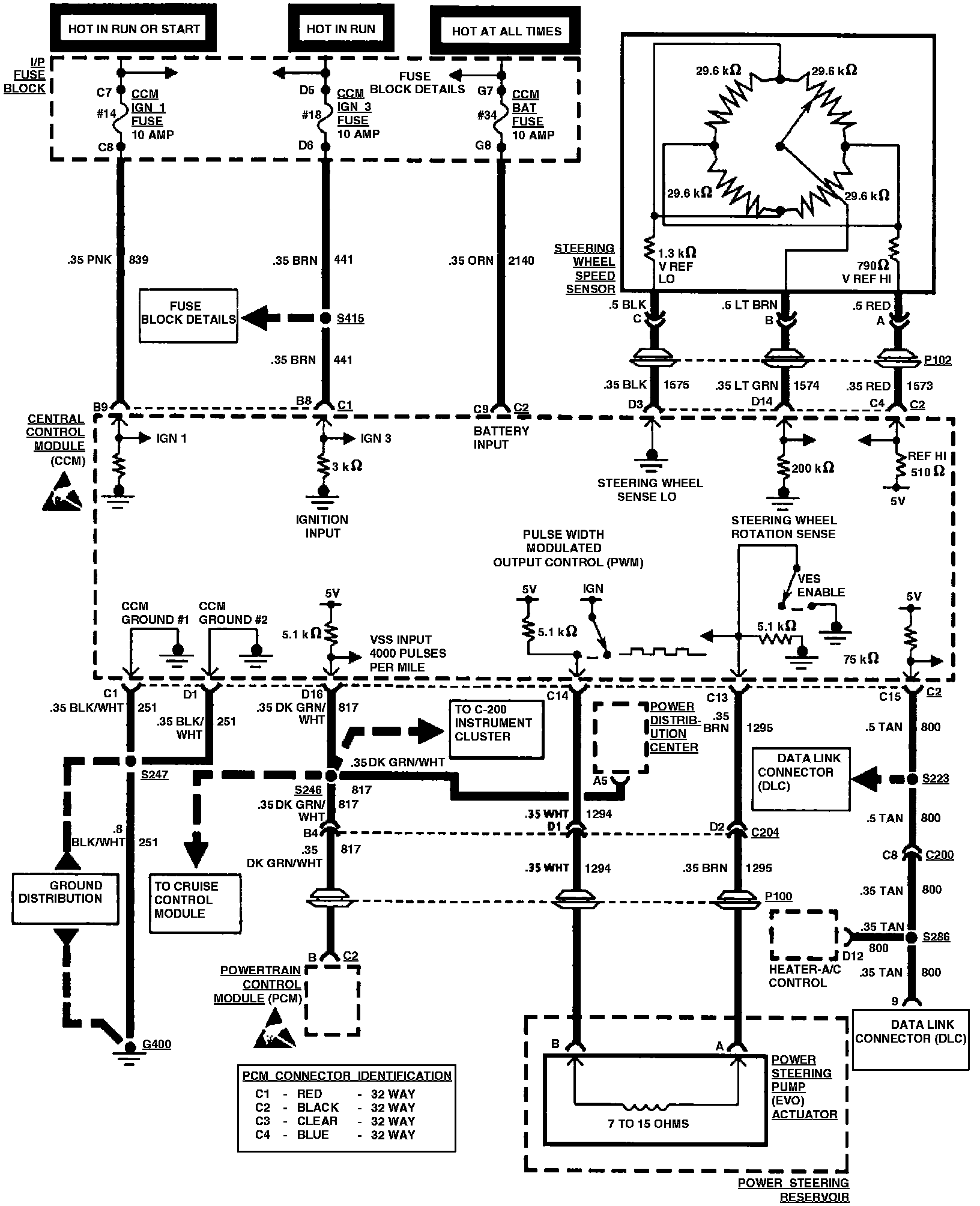

Fig. 1 SSS Wiring Diagram:
