Lumbar Support and Recline Controls

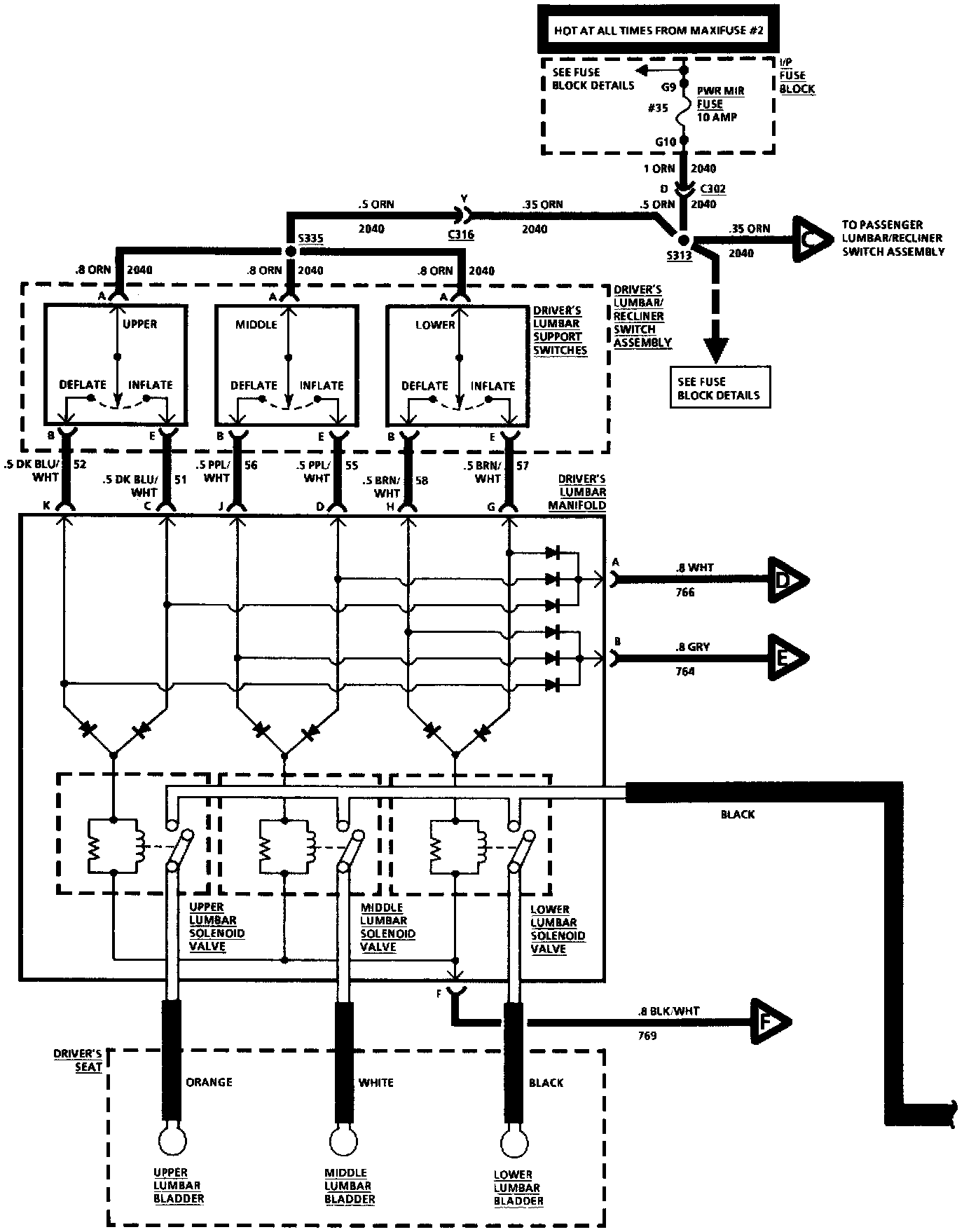

Power Seats-Up Level, Lumbar Support And Recline Controls:

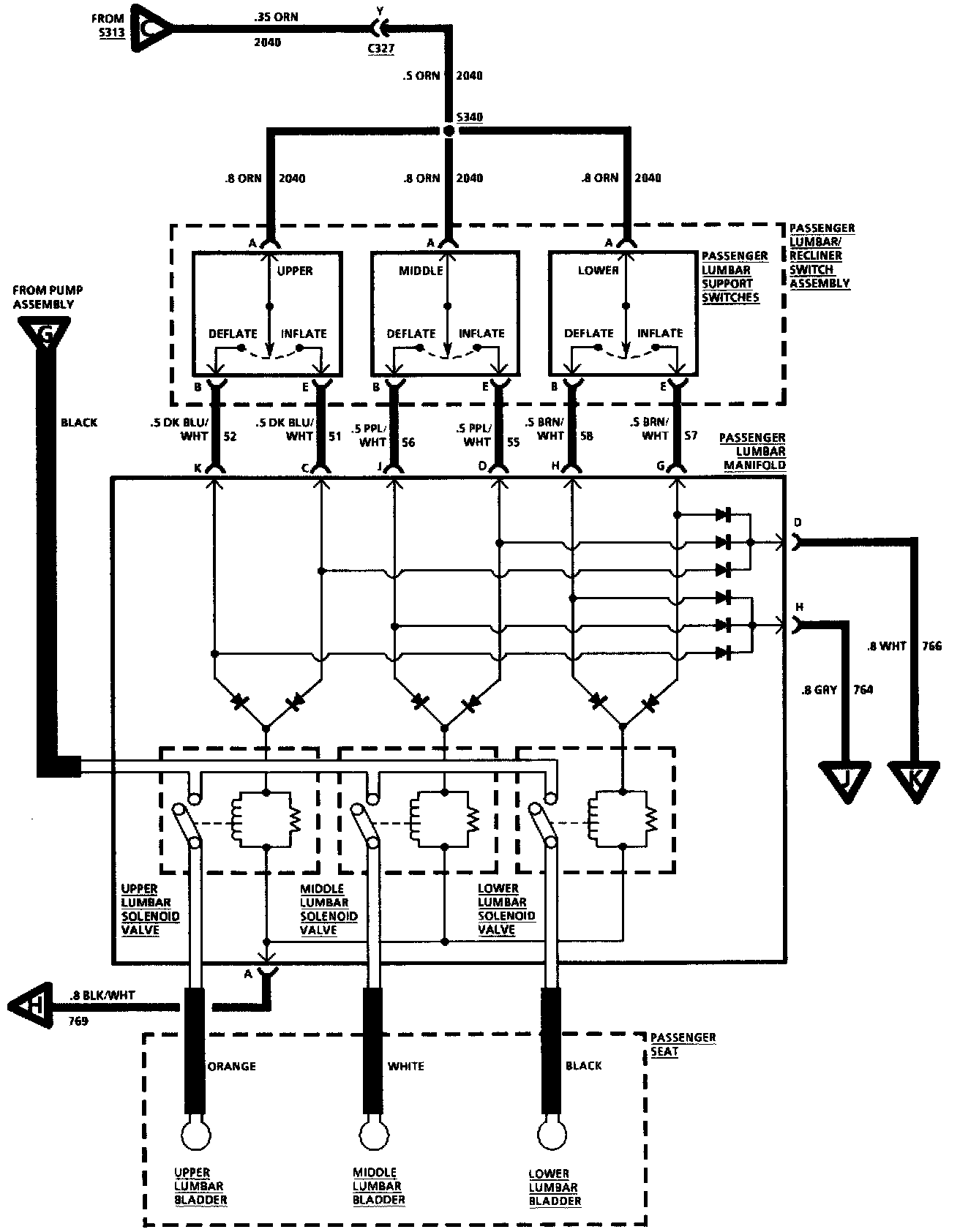

Power Seats-Up Level, Lumbar Support And Recline Controls, Cont:

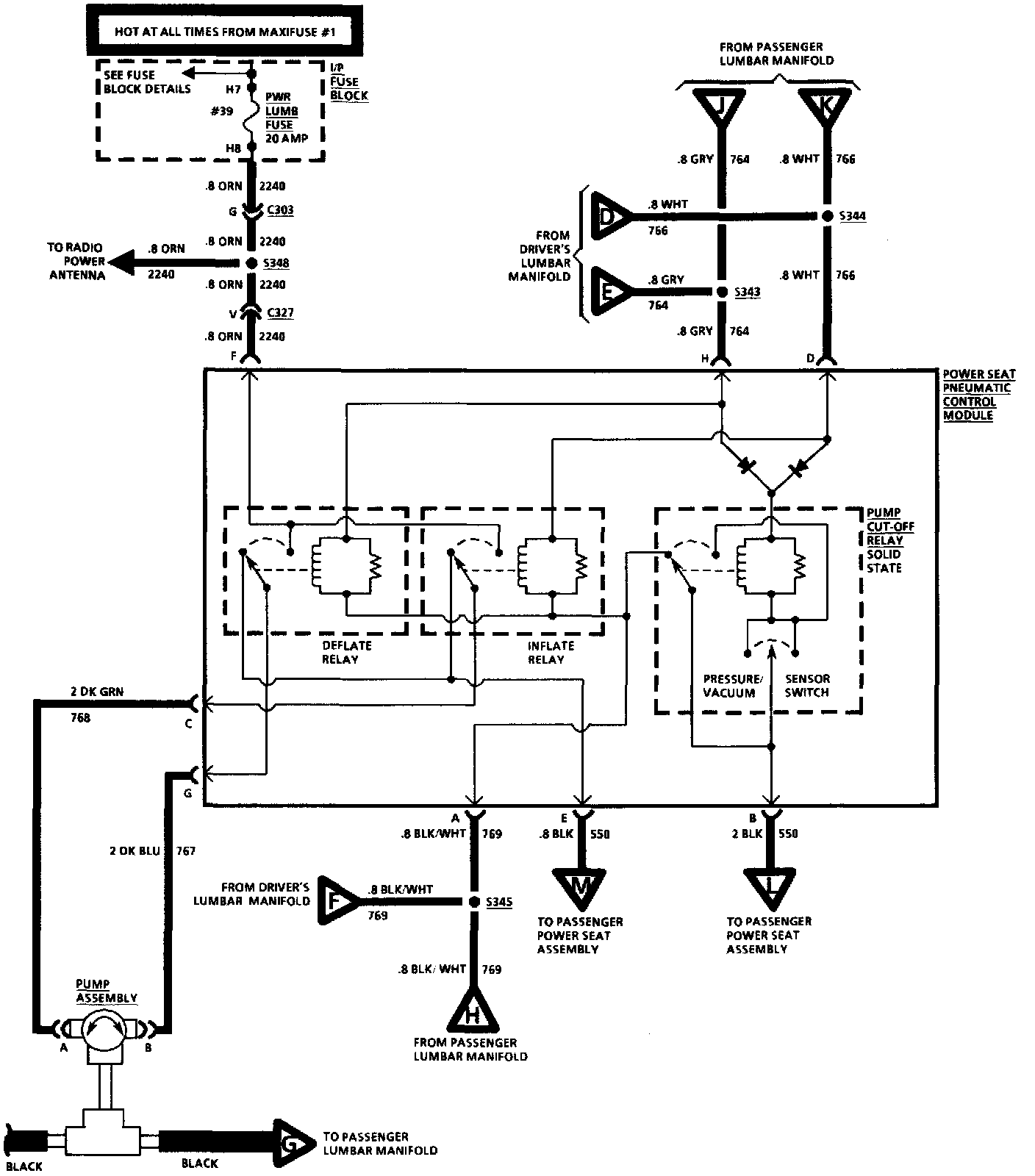

Power Seats-Up Level, Lumbar Support And Recline Controls, Cont:
