Home >> Cadillac >> 1994 >> Fleetwood V8-5.7L VIN P >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Up-Level >> Heated Seat Controls

Heated Seat Controls

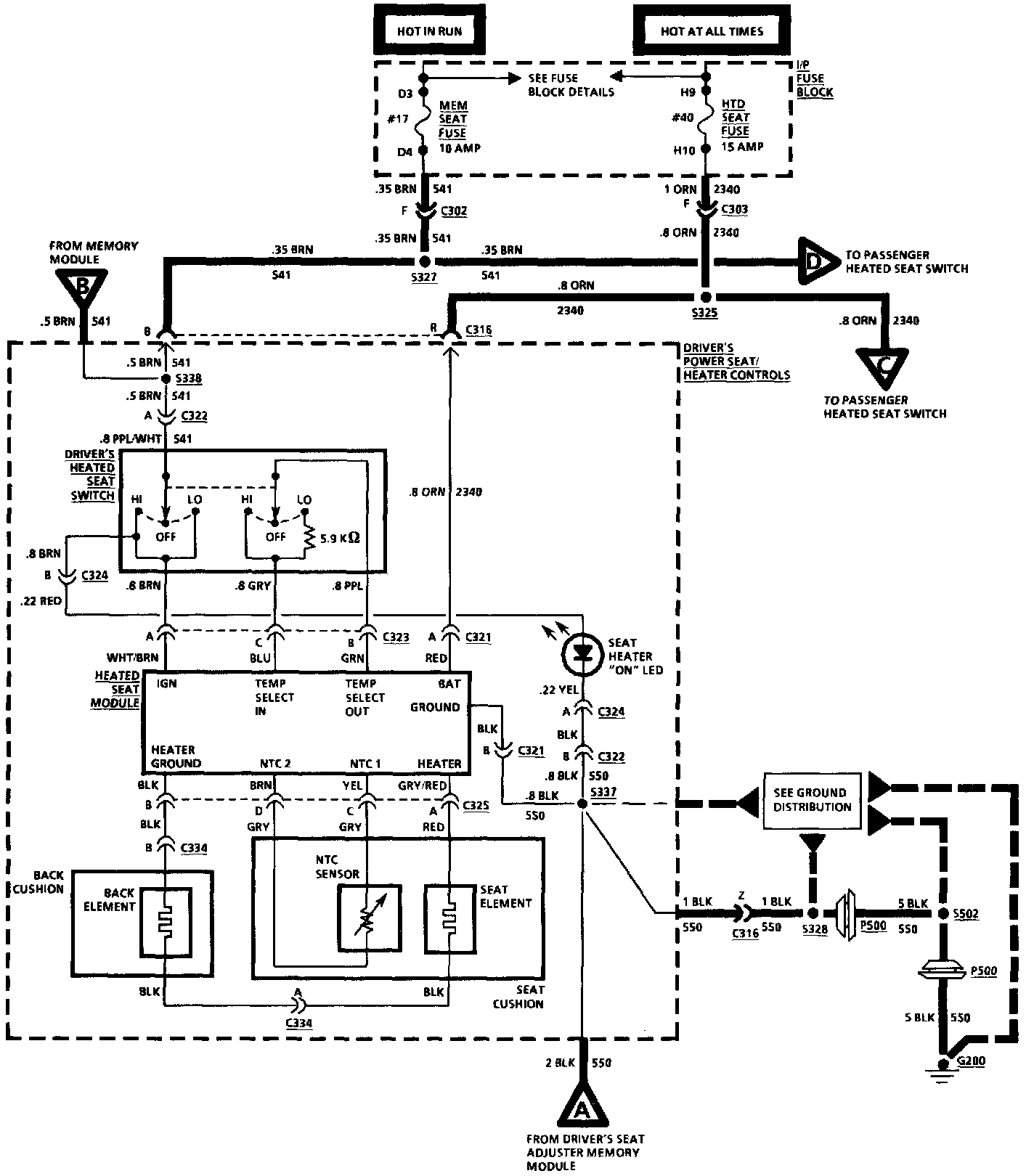

Power Seats-Up Level, Heated Seat Controls:

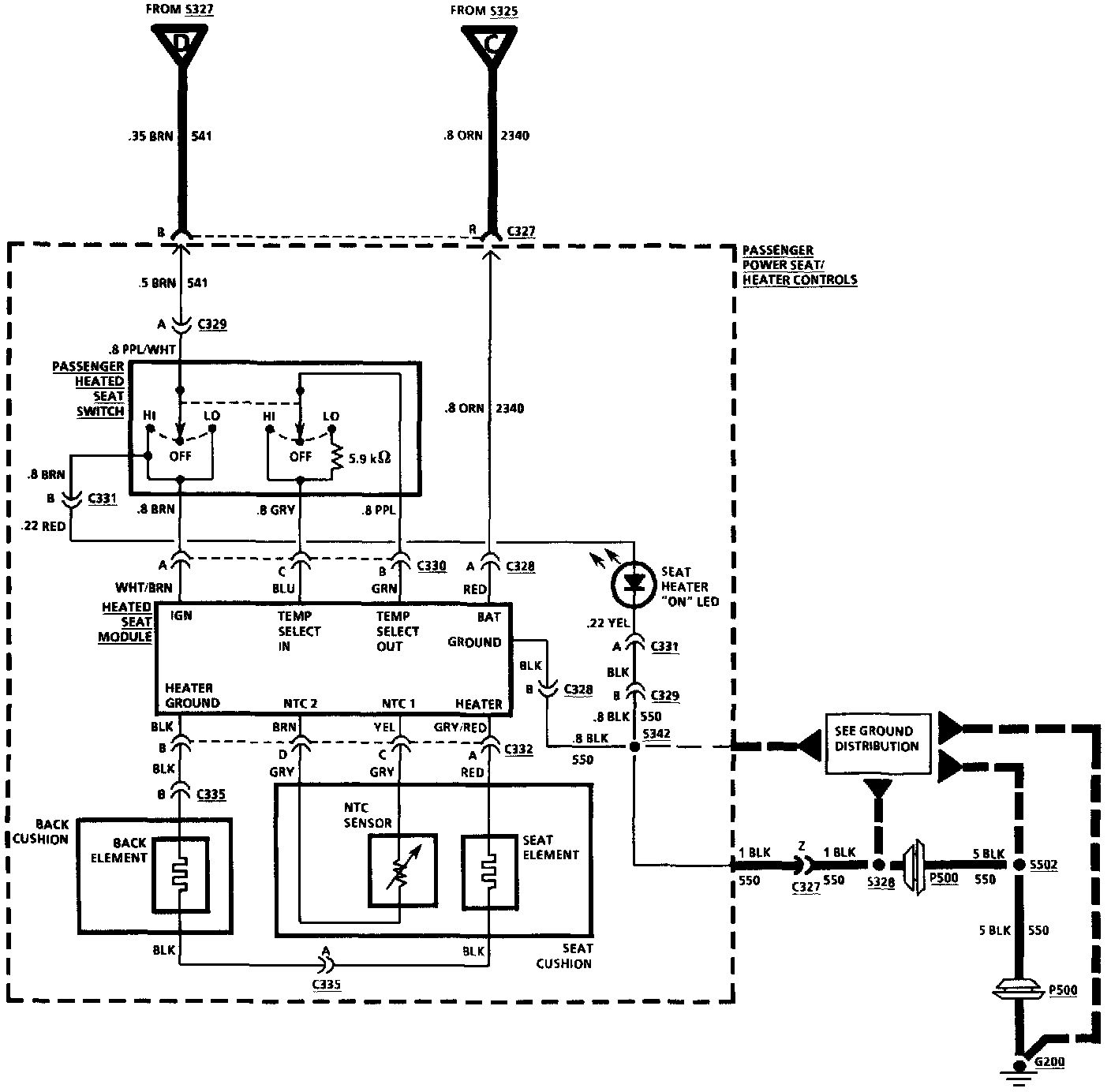

Power Seats-Up Level, Heated Seat Controls, Cont:
