Home >> Cadillac >> 1994 >> Fleetwood V8-5.7L VIN P >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Base

Base

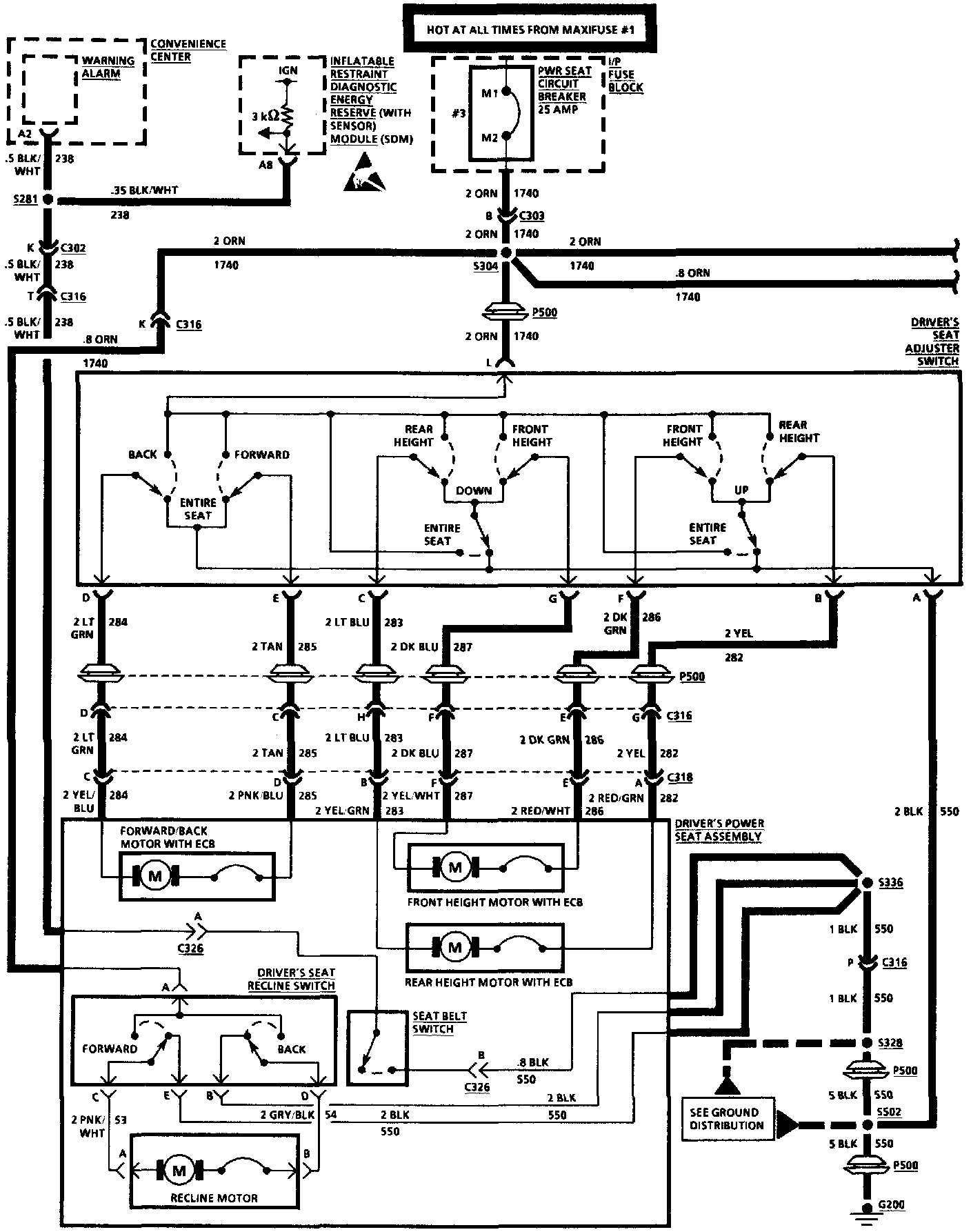

Power Seats, Base:

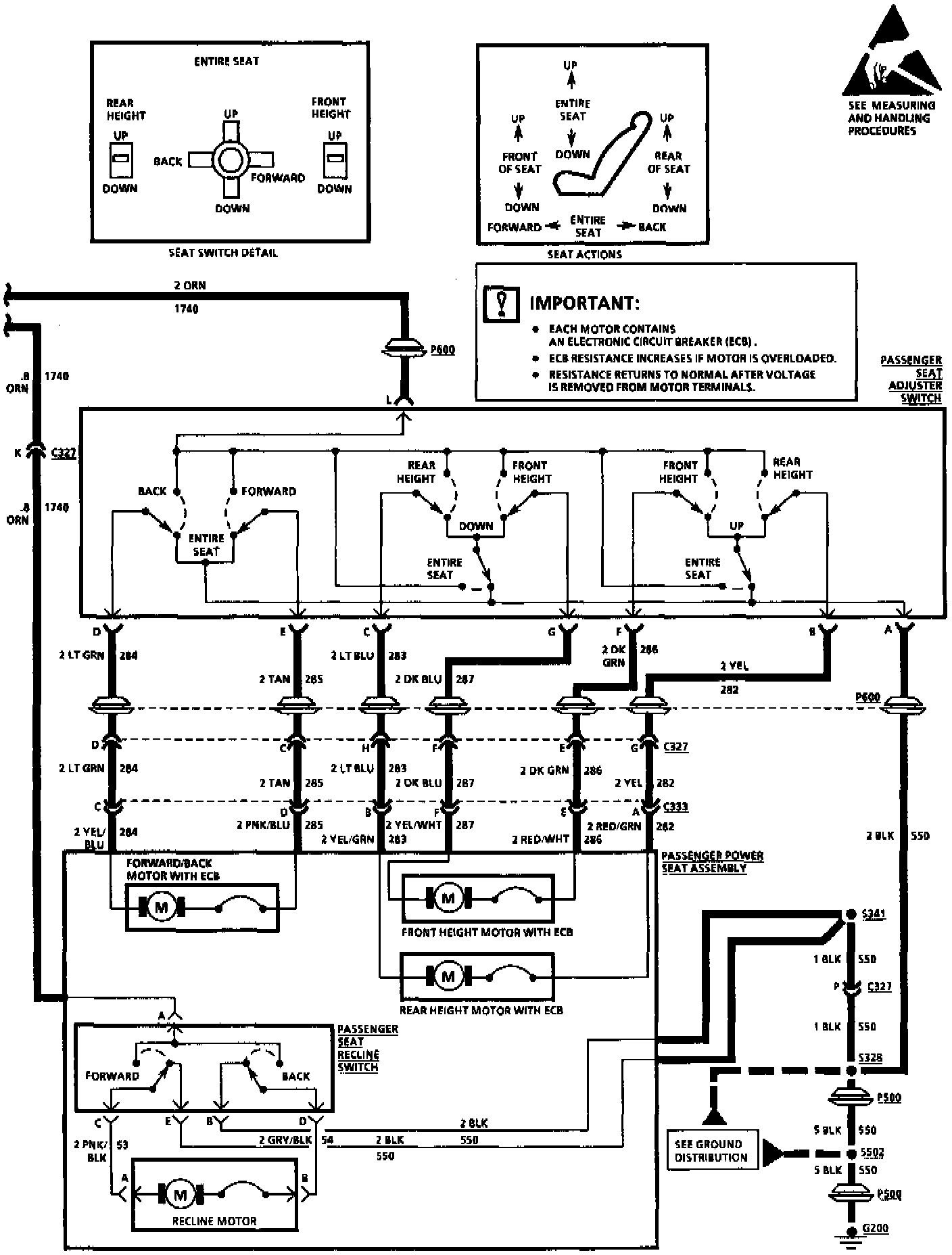

Power Seats, Base-Cont:
