Cadillac
>>
1994
>>
Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

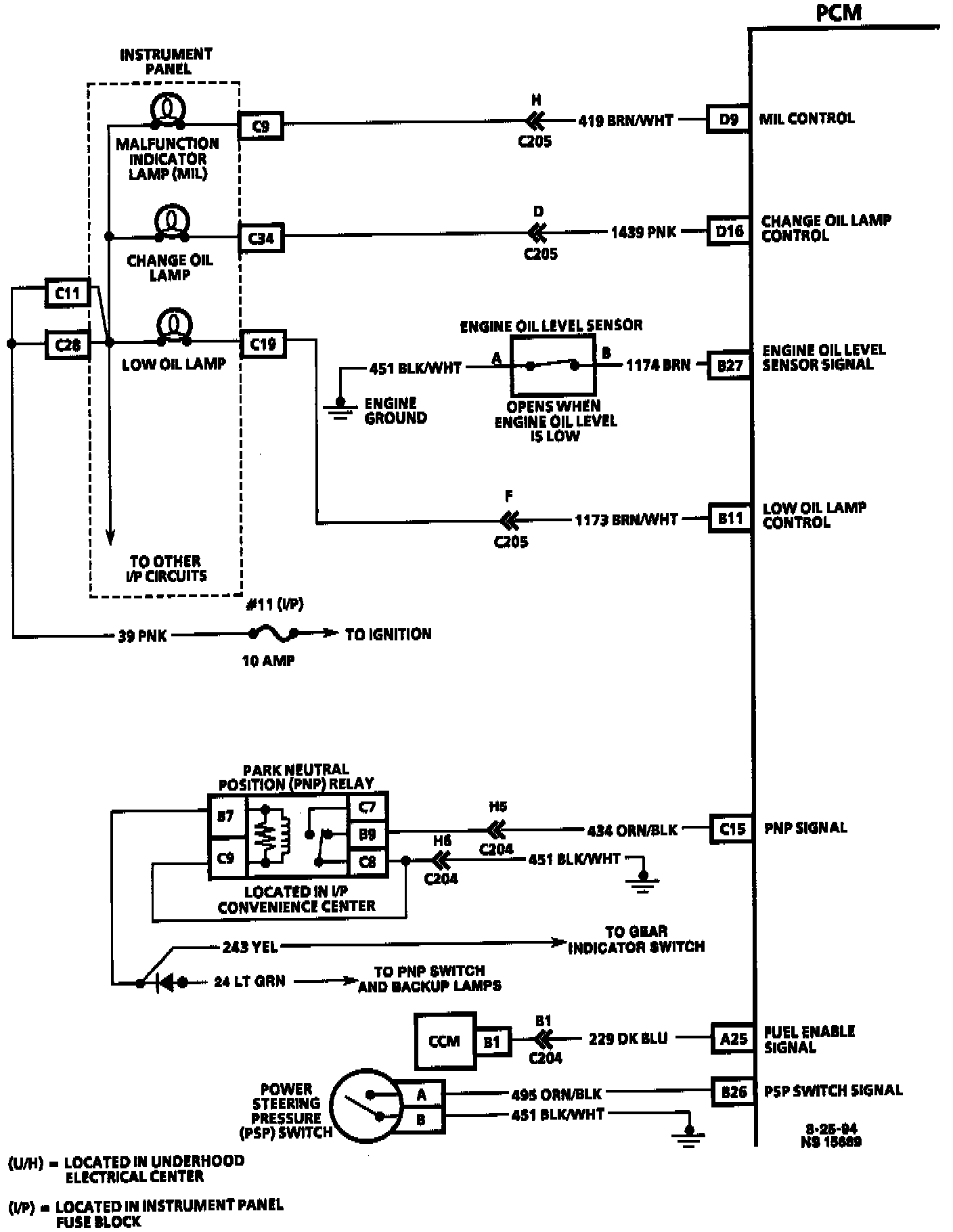

Instrument Panel, PNP Relay & Power Steering Switch
Instrument Panel, PNP Relay & Power Steering Switch
PCM Circuit:
