Fuel Injector & Fuel Pump Control & Ignition

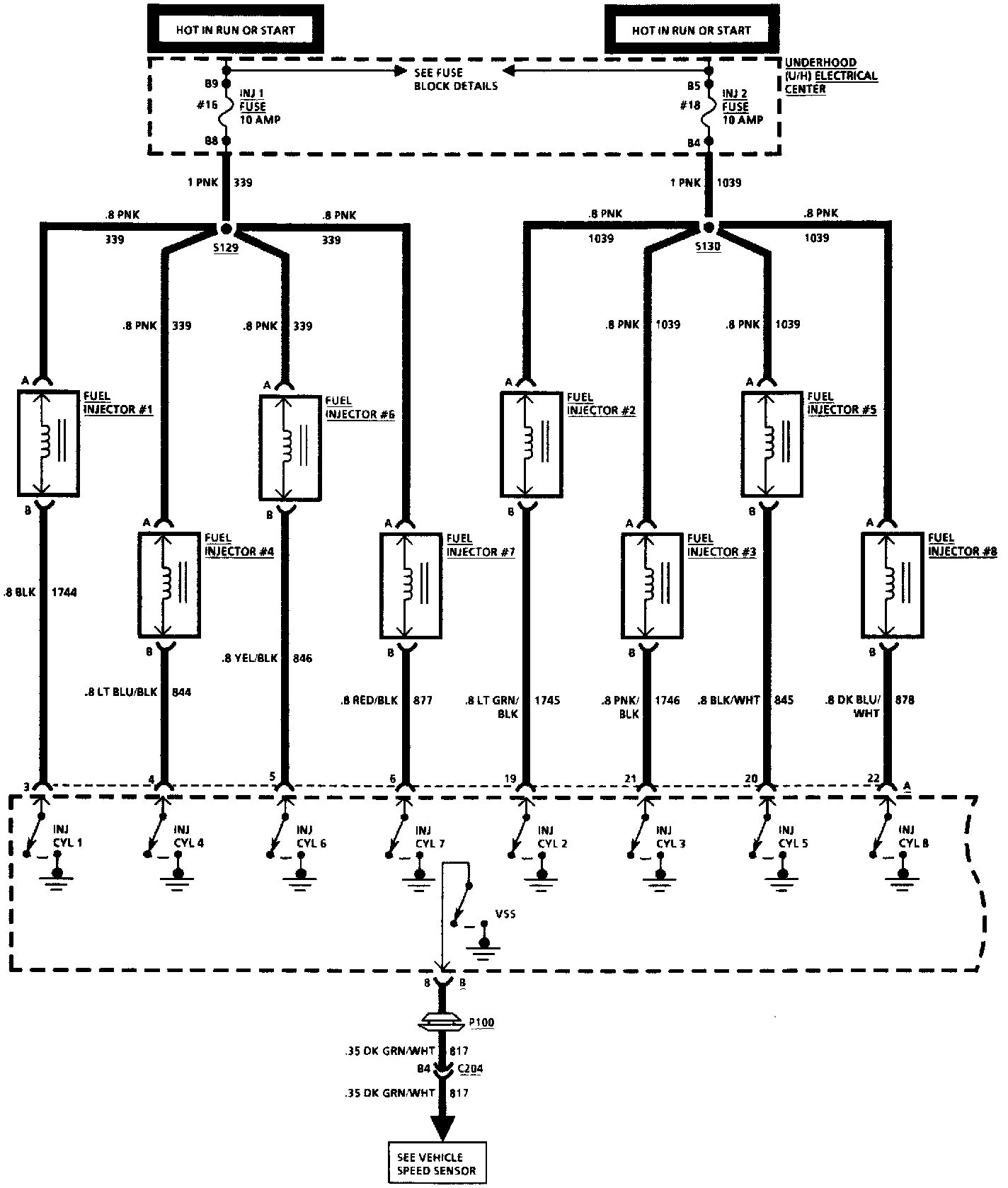

Sequential Multiport Fuel Injection (SMFI): Fuel Injector & Pump Control And Ignition:

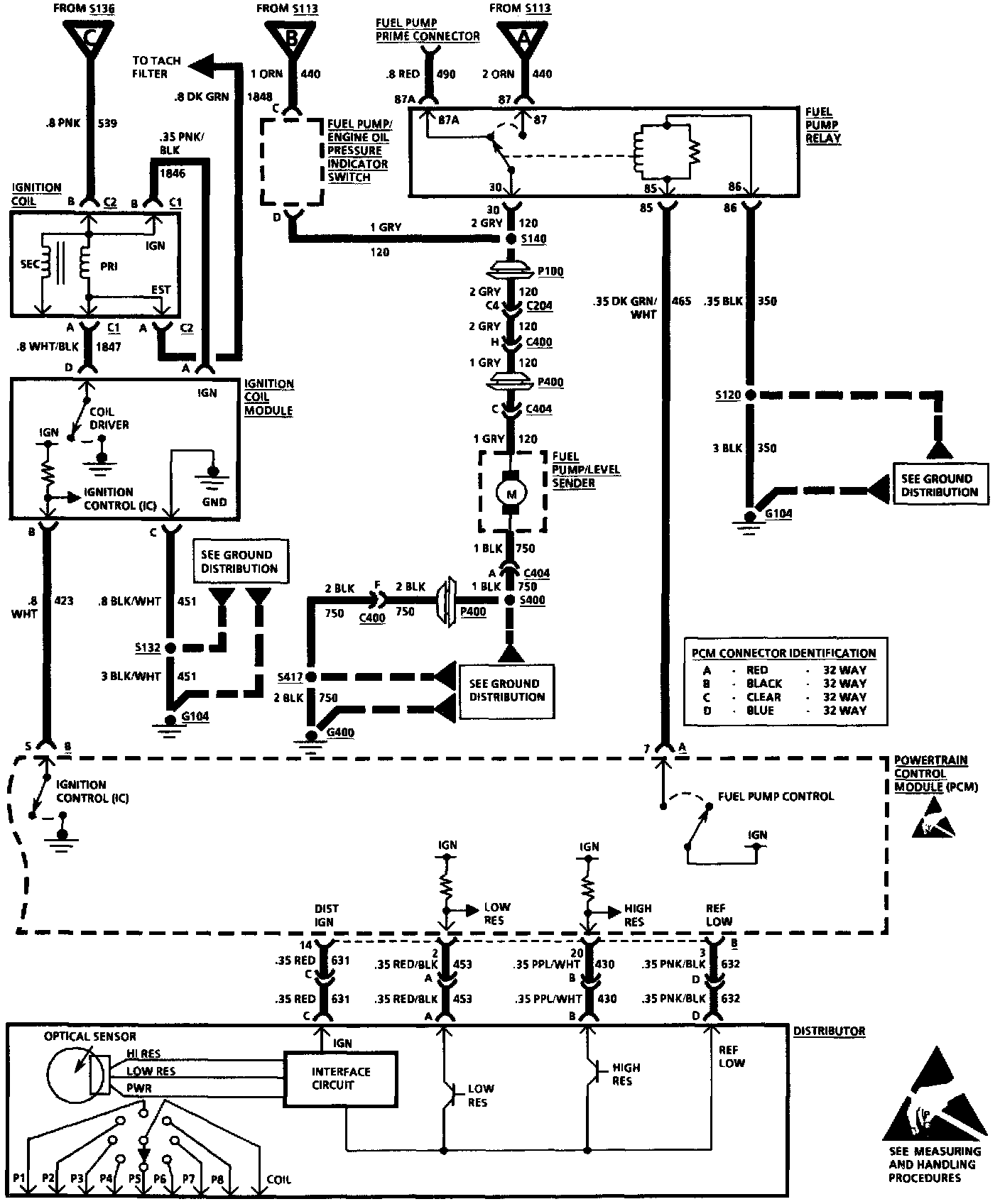

Sequential Multiport Fuel Injection (SMFI): Fuel Injector & Pump Control And Ignition-Cont.:
