Engine Data Sensors & Vehicle Data Sensors

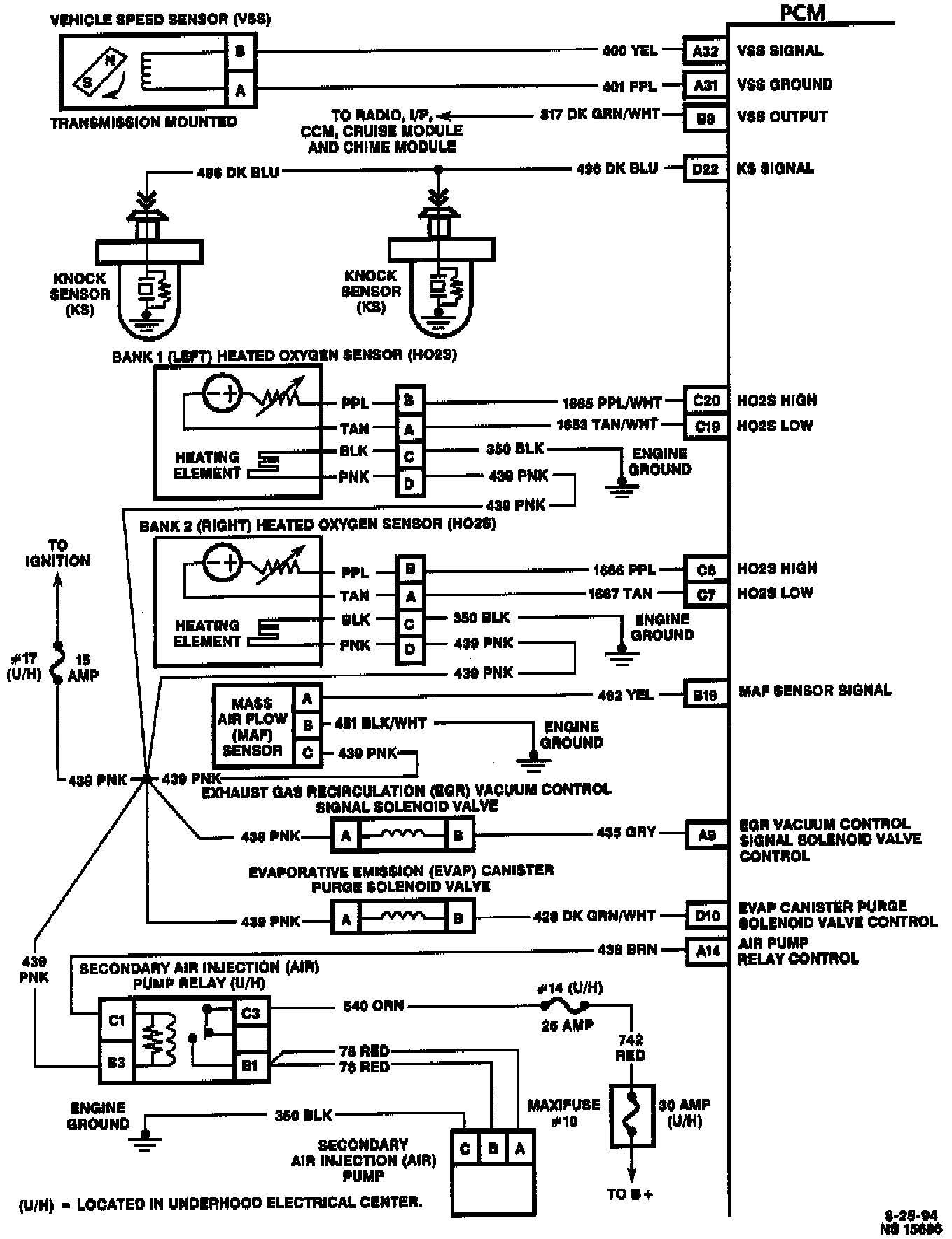

PCM Circuit:

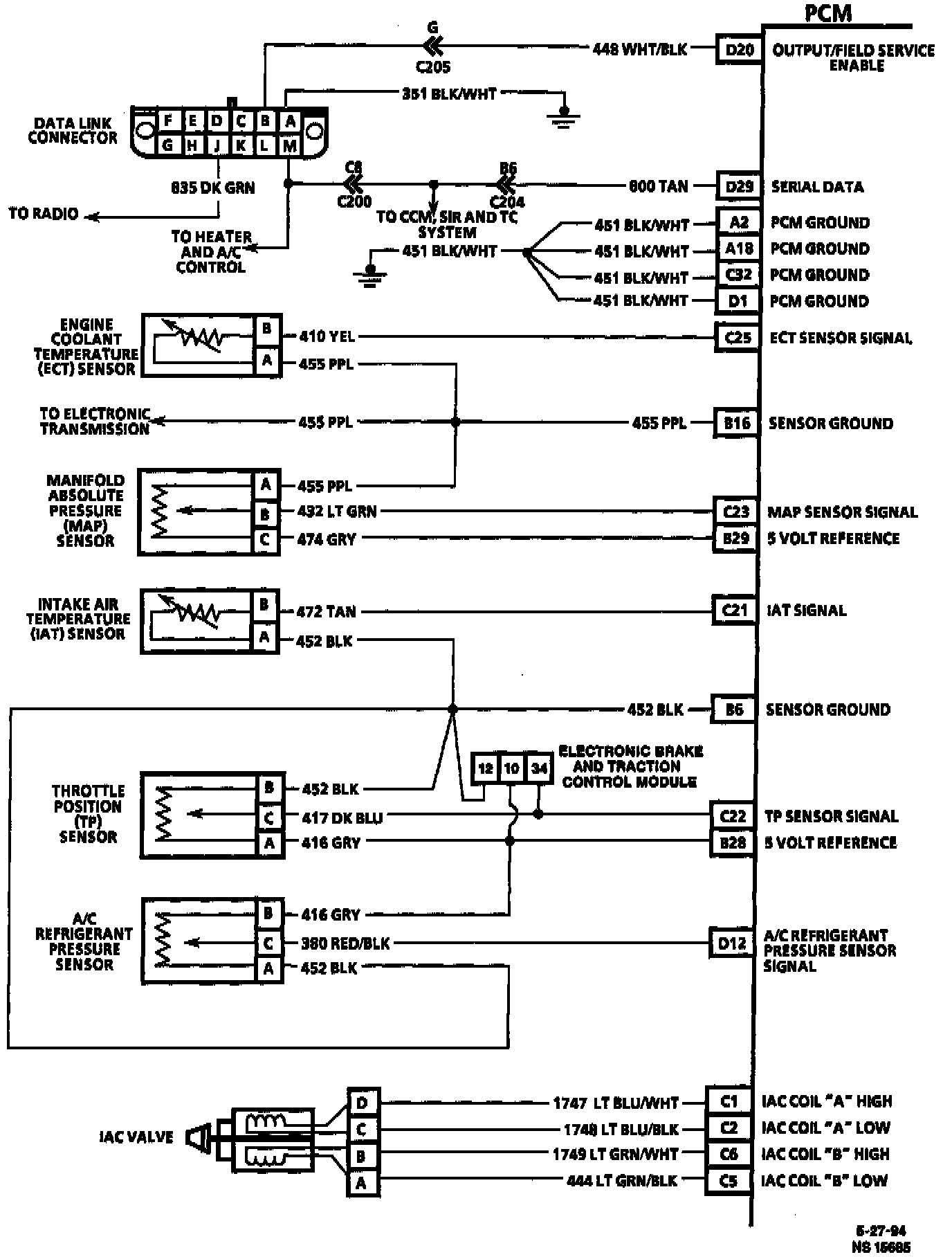

PCM Circuit:

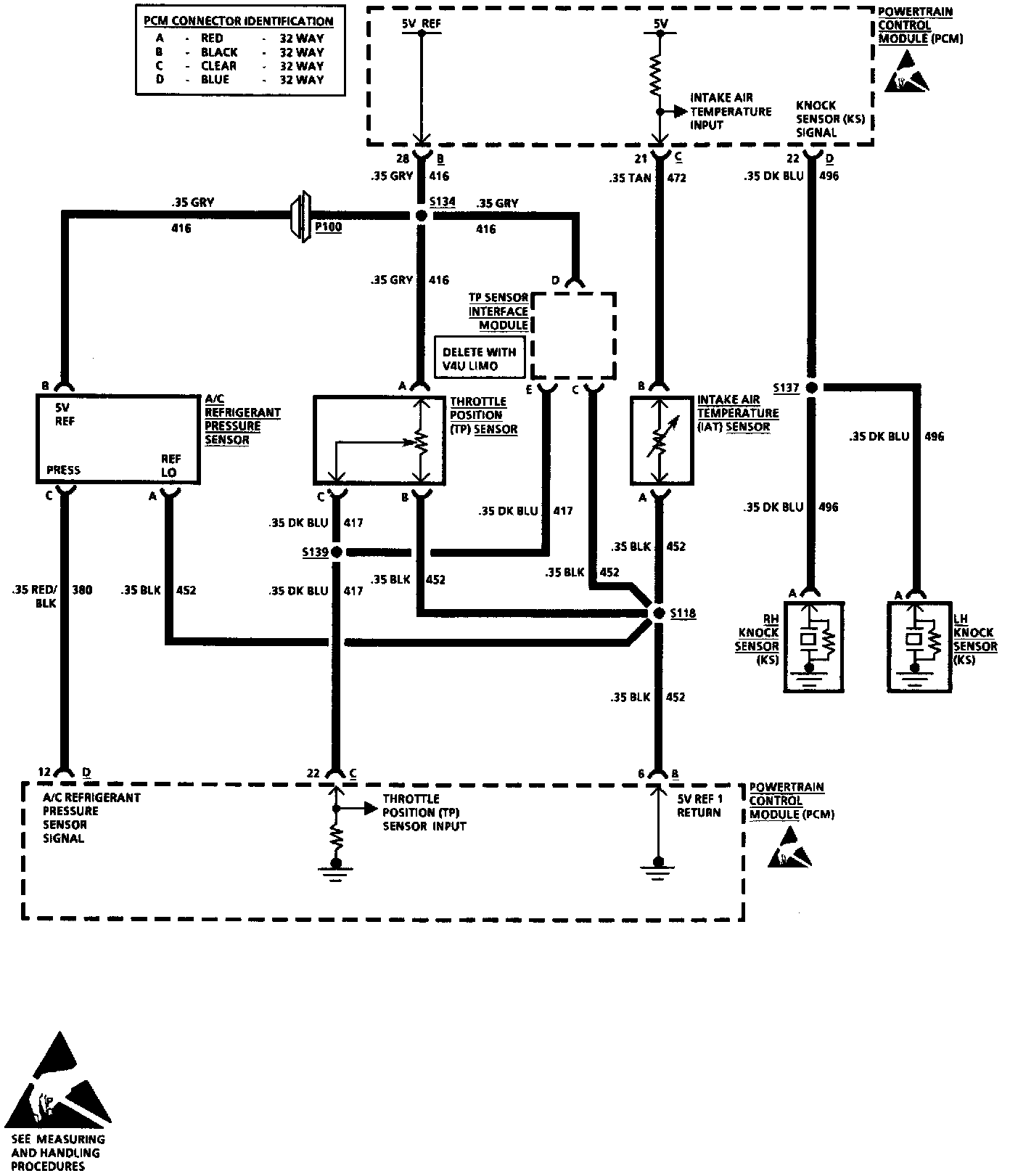

Sequential Multiport Fuel Injection (SMFI): Engine Data Sensors:
