Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1994
>>
Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>

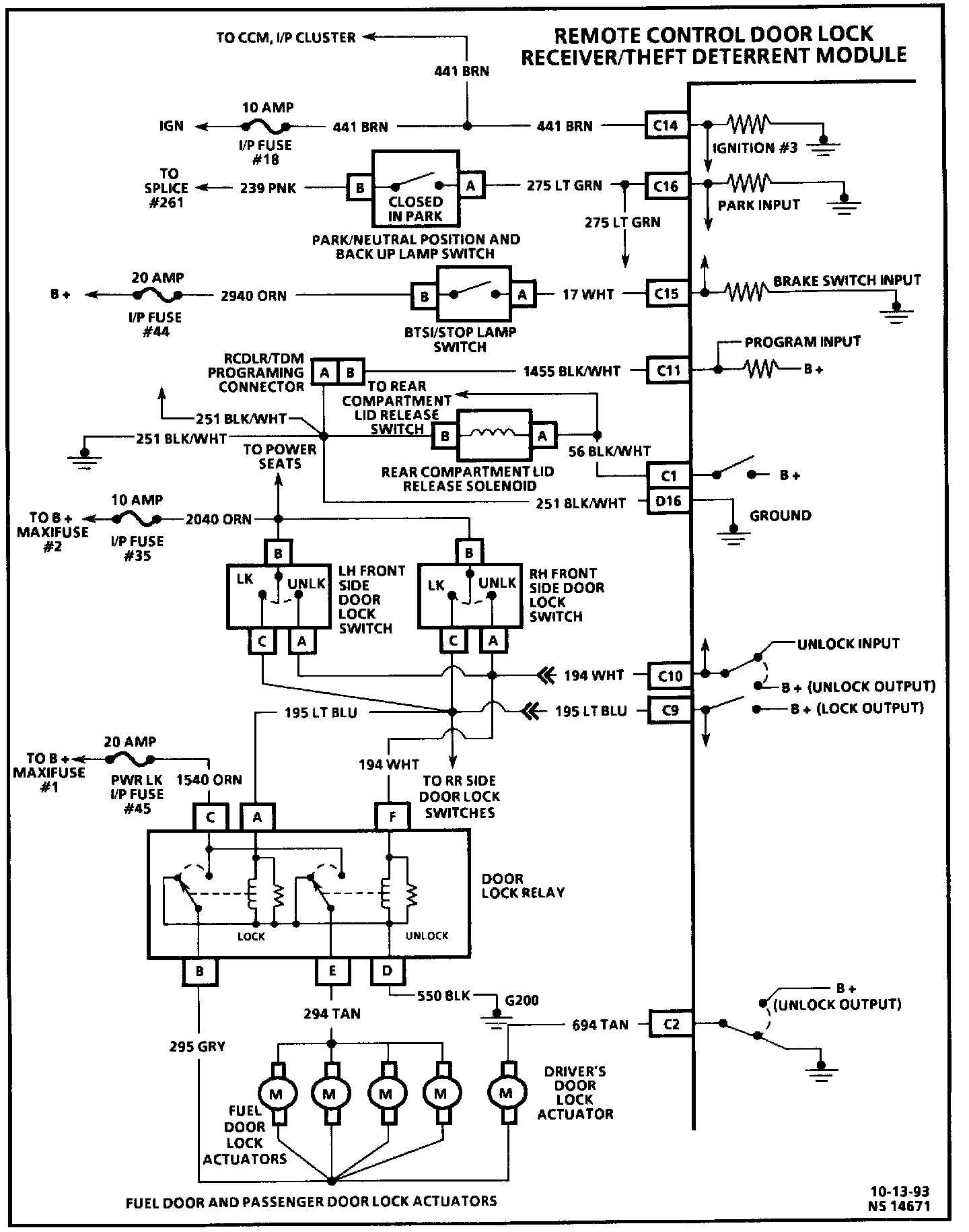

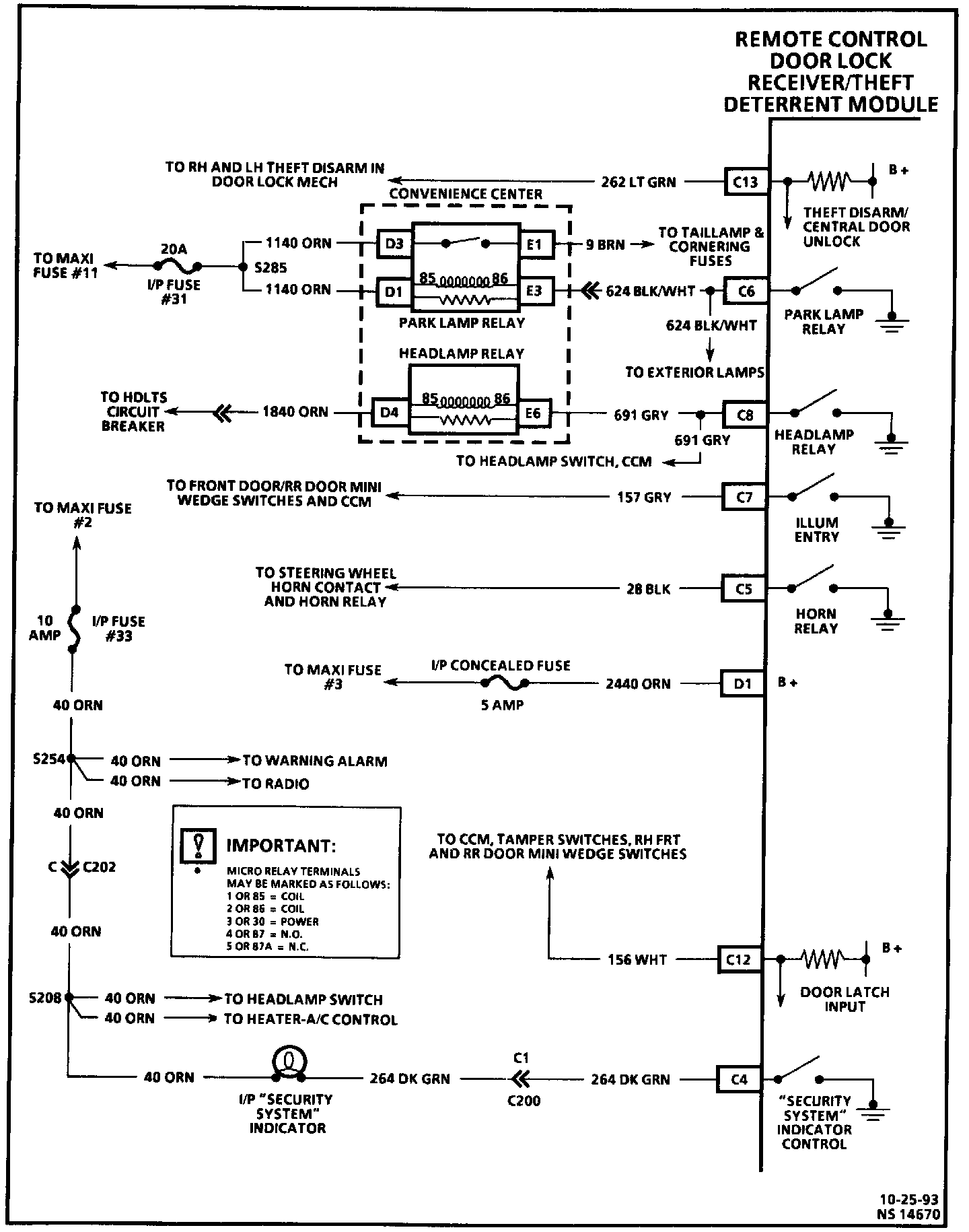

Wiring Schematic
Wiring Schematic
Electrical Diagram:
Electrical Diagram:
