Part 2 of 2

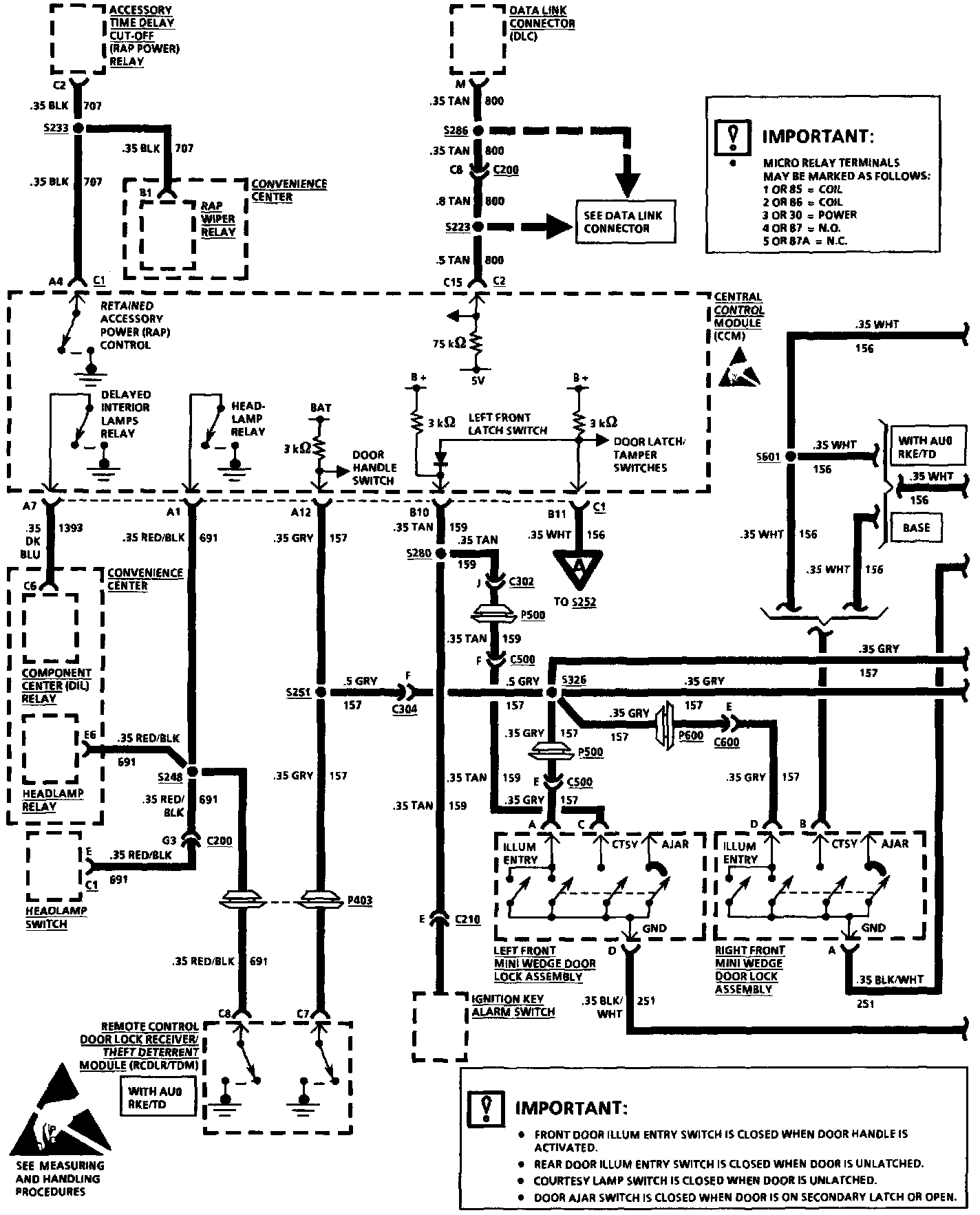

Central Control Module, Cont:

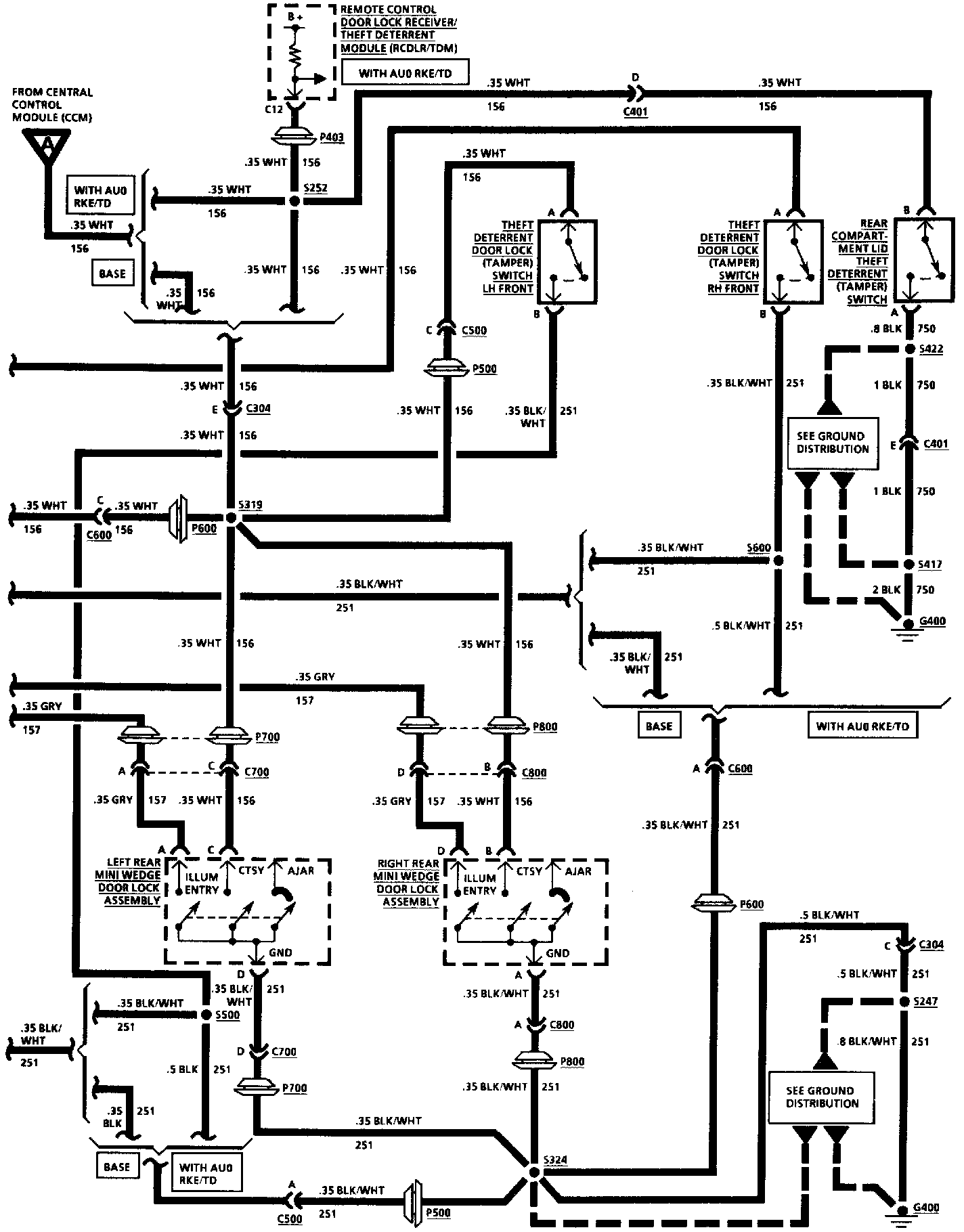

Central Control Module, Cont:

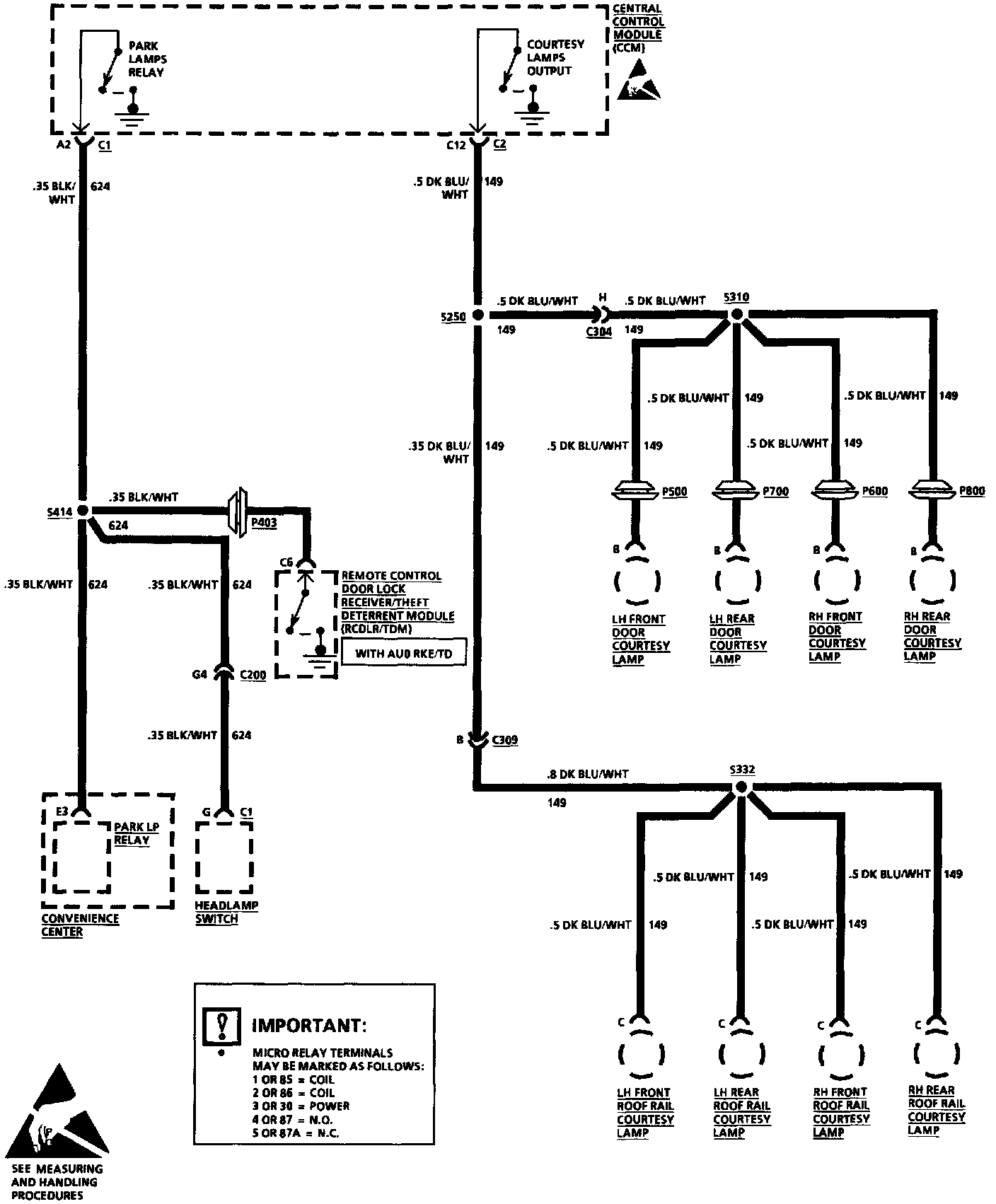

Central Control Module, Cont:
