Antilock Brakes / Traction Control Systems

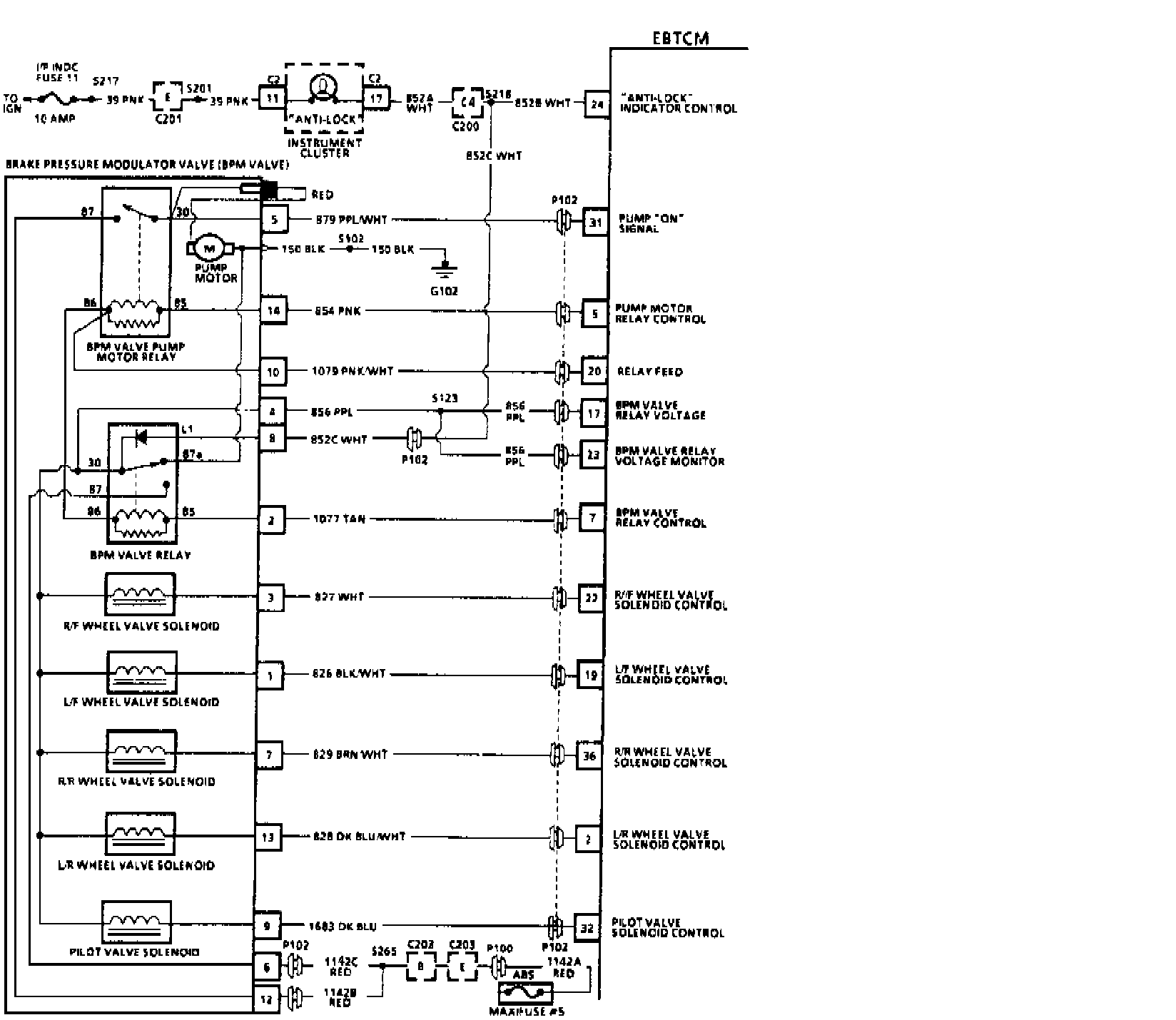

Fig. 9 ABS & TCCS Wiring Circuit (Part 1 Of 4).:

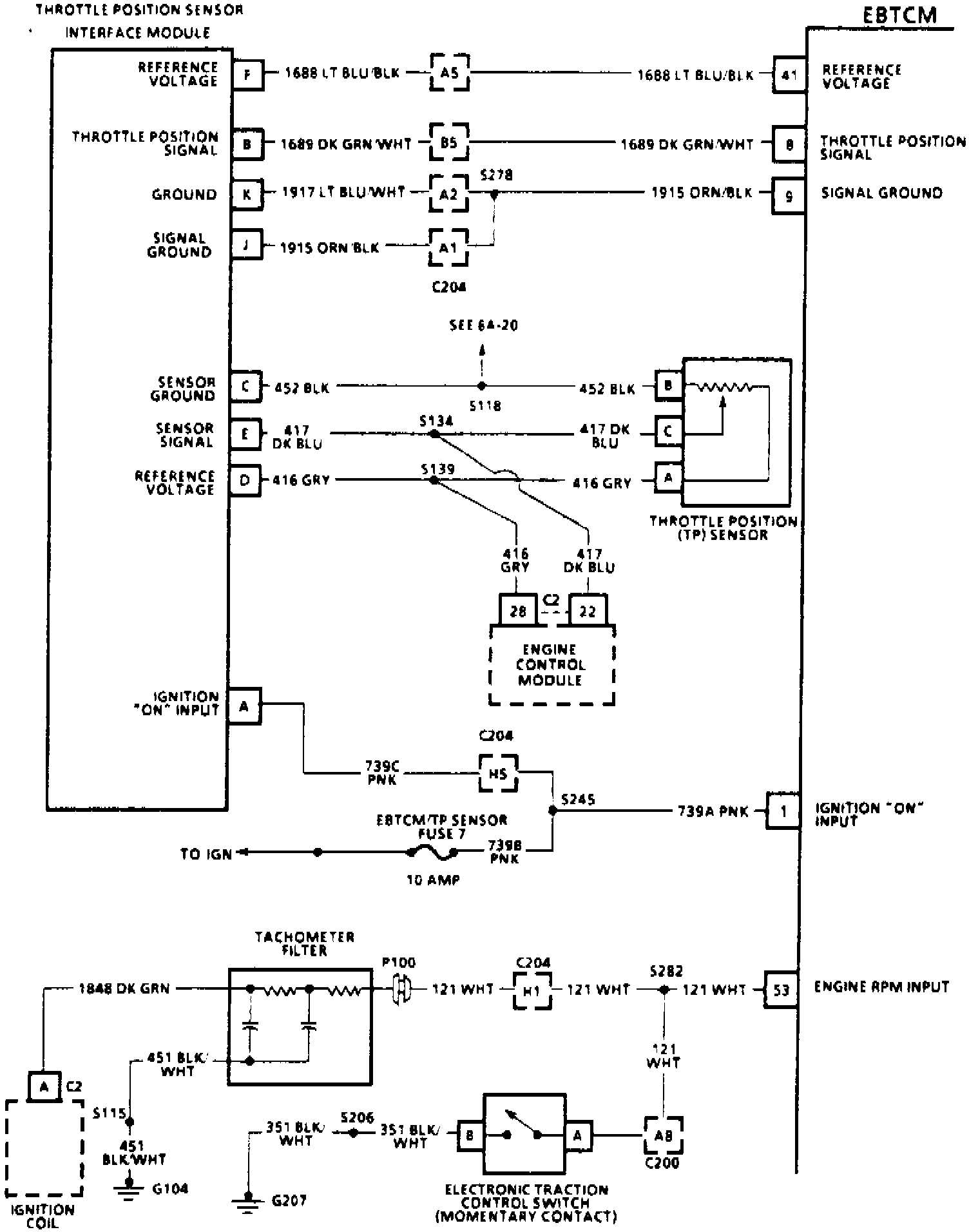

o�=Fig. 9 ABS & TCCS Wiring Circuit (Part 2 Of 4).:

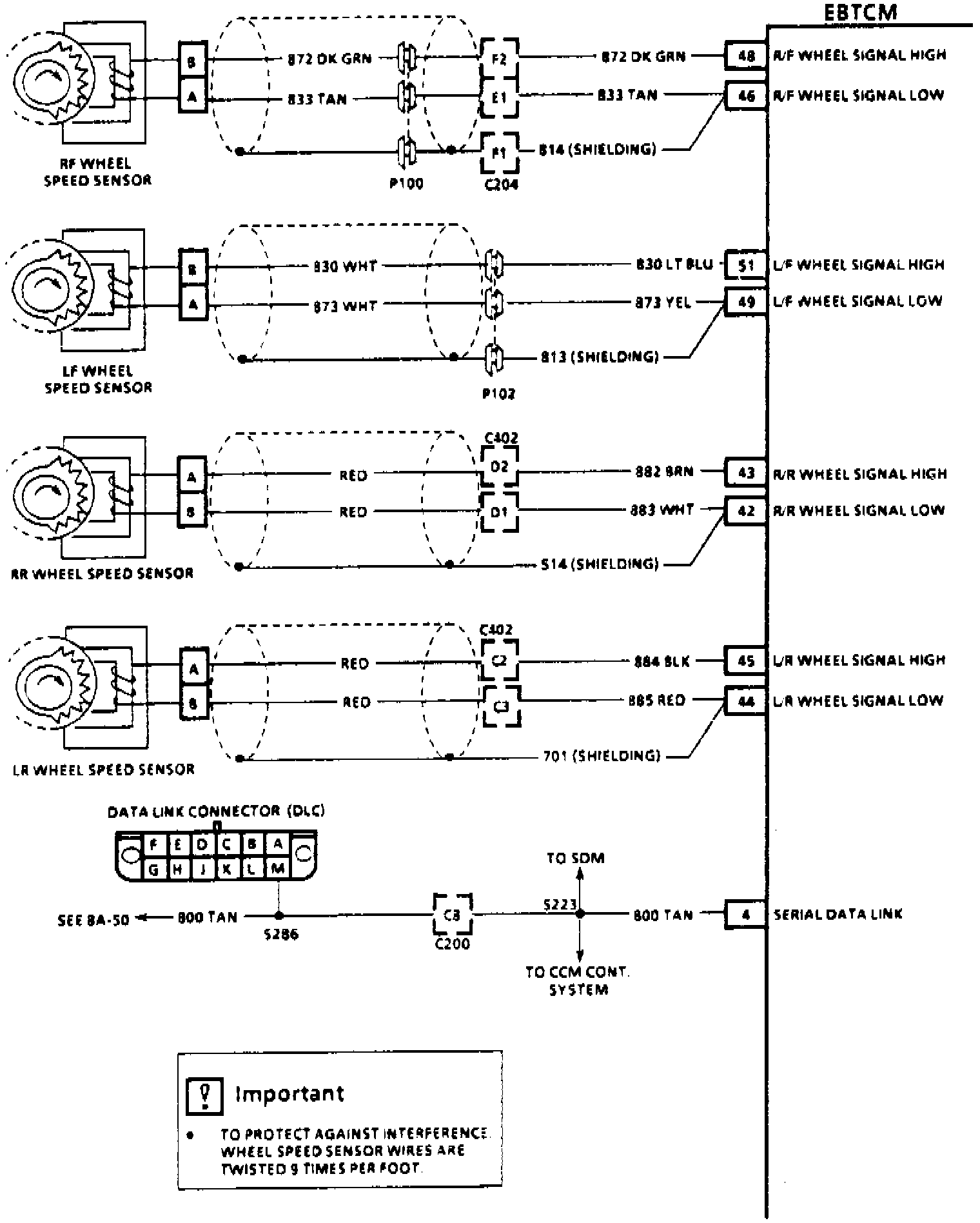

Fig. 9 ABS & TCCS Wiring Circuit (Part 3 Of 4).:

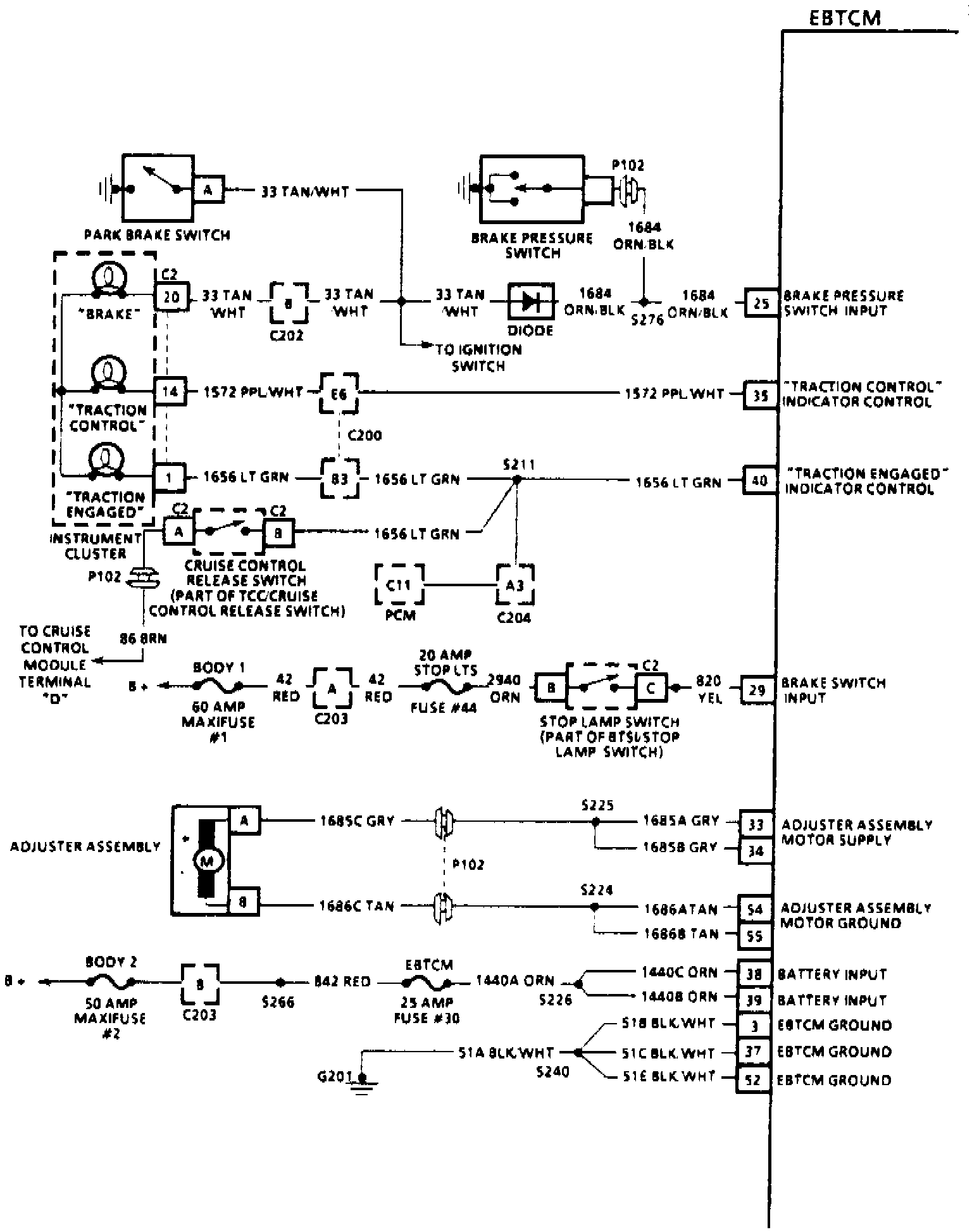

Fig. 9 ABS & TCCS Wiring Circuit (Part 4 Of 4).:

Refer to ABS wiring circuits, Fig. 9 when performing troubleshooting procedures.
