Powertrain Control Module Connectors
Powertrain Control Module Connectors

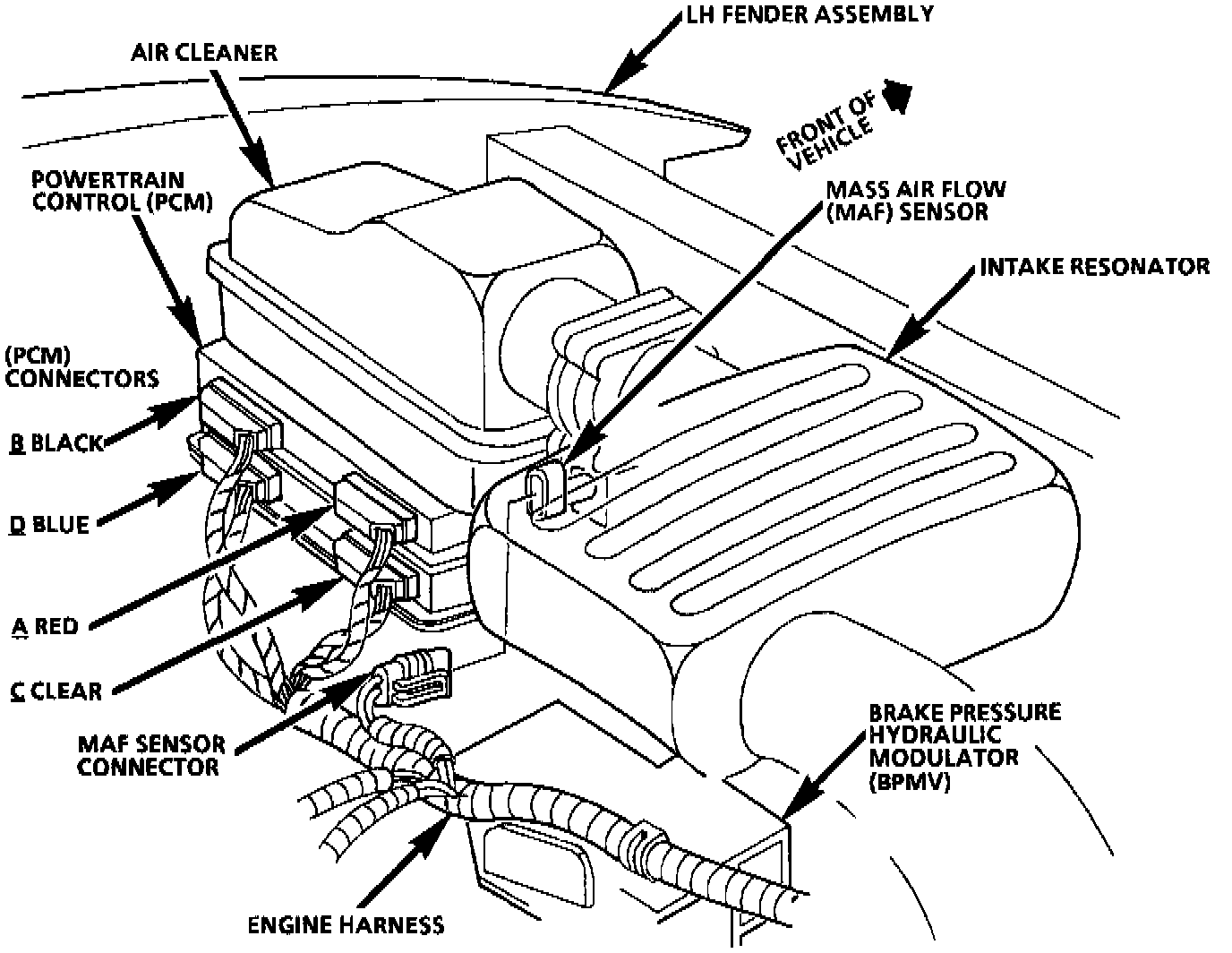

LH Forward Engine Compartment:
