Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Switch
>>
Base and Up Level
Base and Up Level

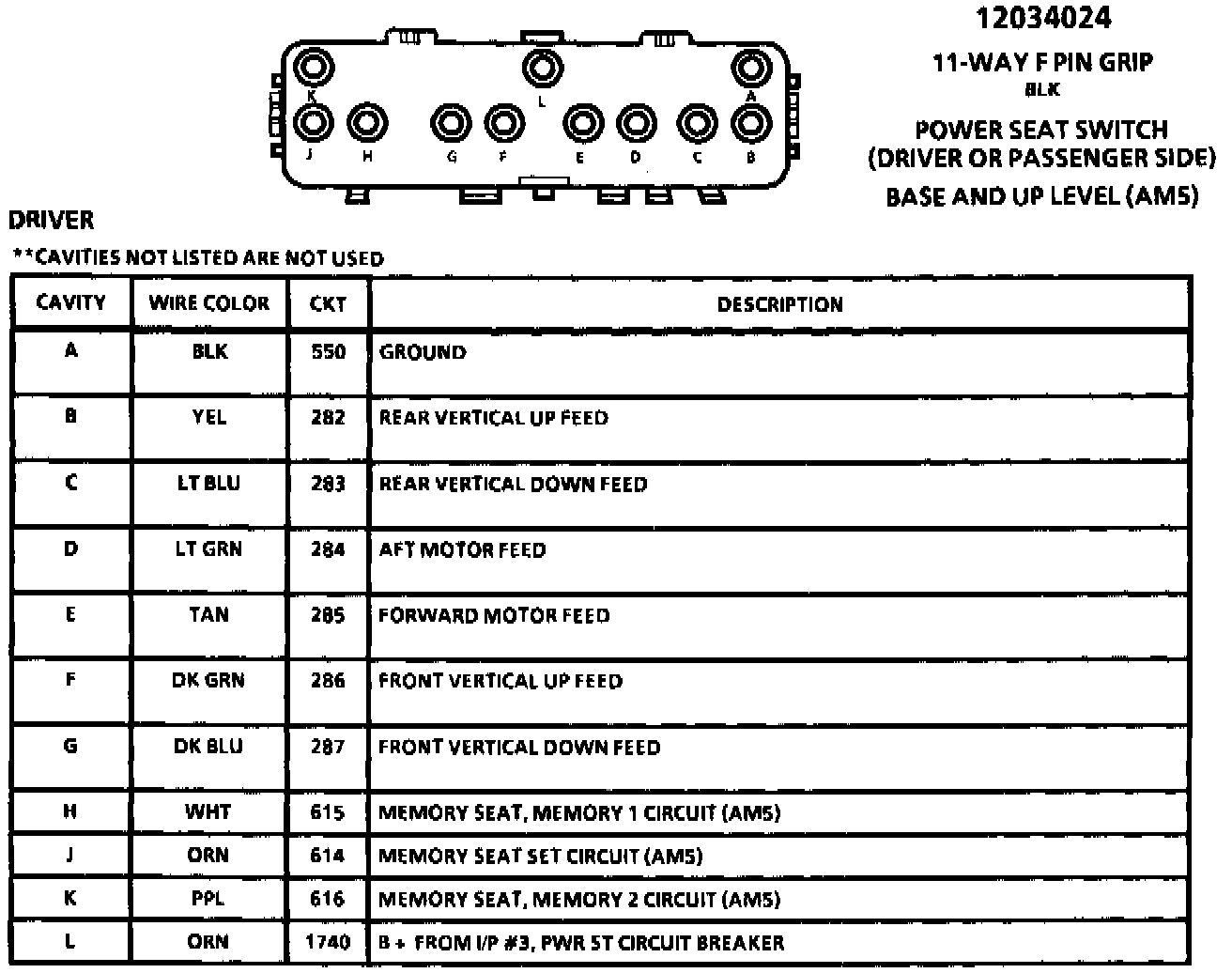

Connector Pin Information:
Connector Pin Information, Cont:
