Cooling System
>>
System Diagram
>>
Base & Extra Capacity
Base & Extra Capacity

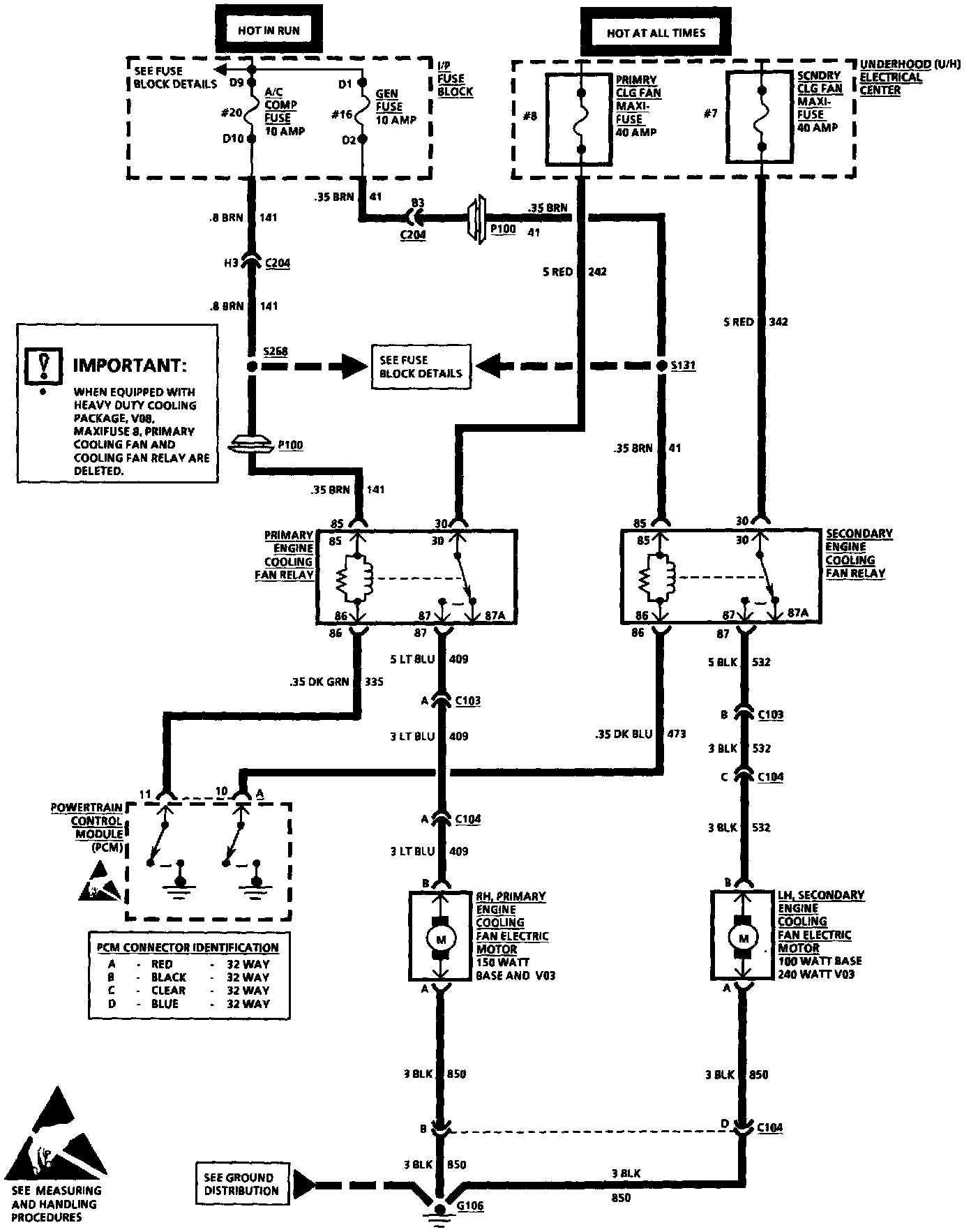

Coolant Fans: Base And V03 Extra Capacity Cooling Fan:
