Home
>>
Cadillac
>>
1994
>>
Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
>>
Radiator Cooling Fan Motor Relay
>>
Secondary
Secondary

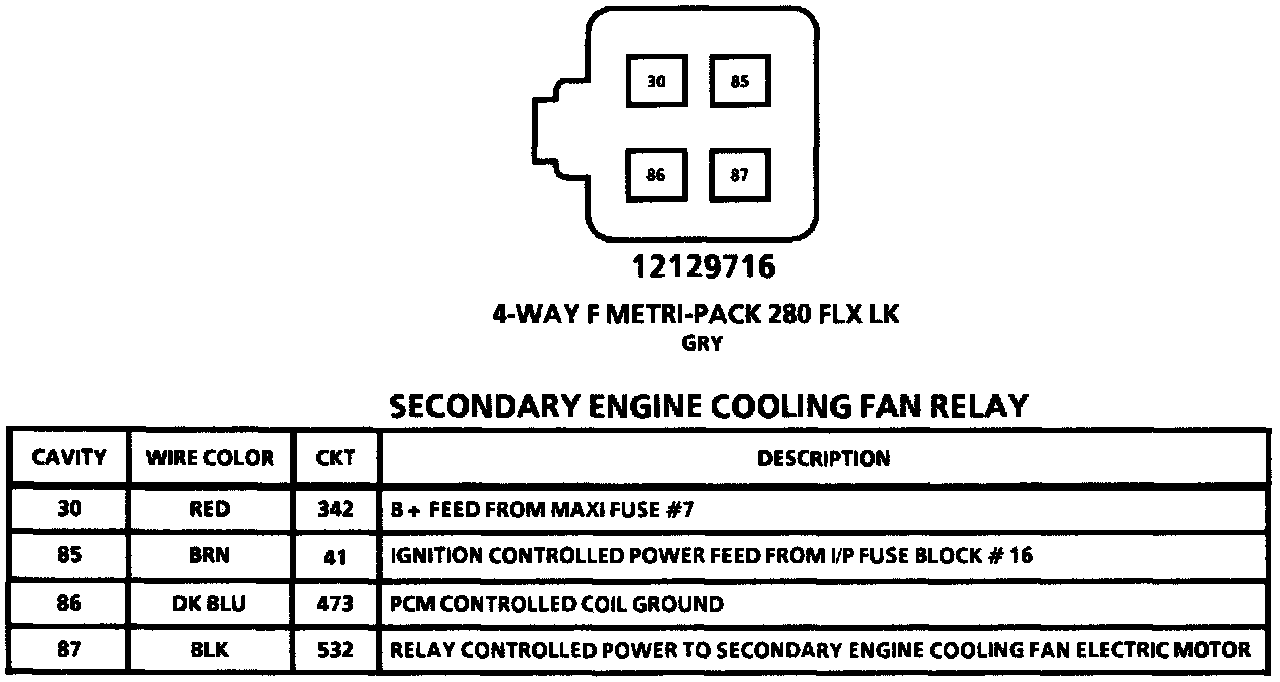

Secondary Engine Cooling Fan Relay Connector View:
