Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cooling System
>>
Radiator Cooling Fan Motor Relay
>>
Primary
Primary

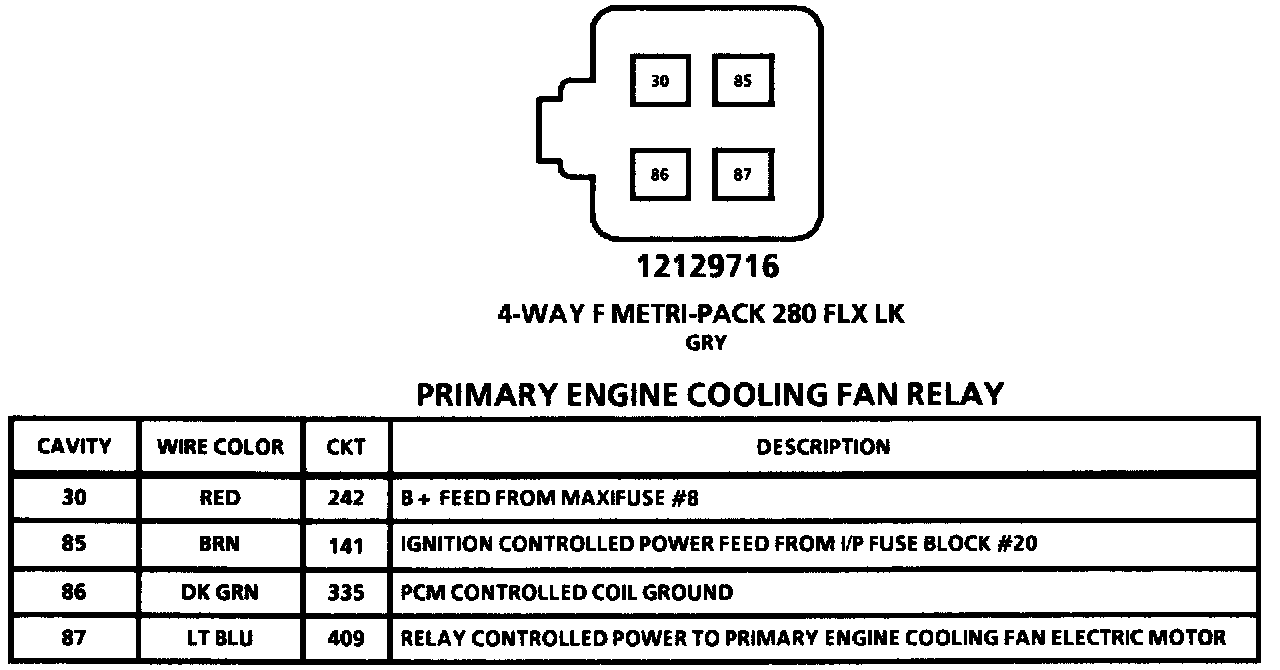

Primary Engine Cooling Fan Relay Connector View:
