Cadillac
>>
1994
>>
Fleetwood V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brakes and Traction Control
>>
Electronic Brake Control Module
Electronic Brake Control Module

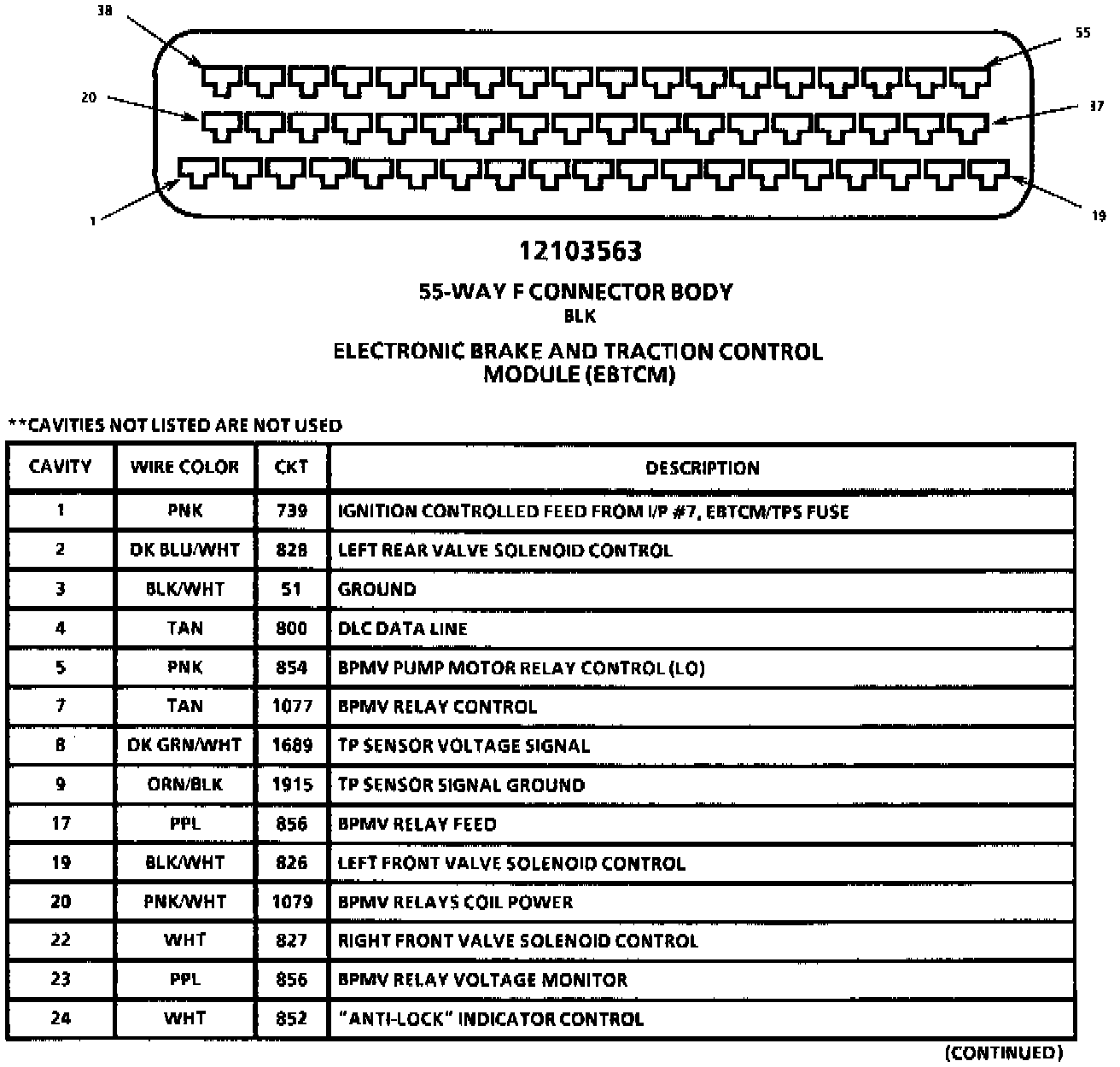

Connector Pin Information:

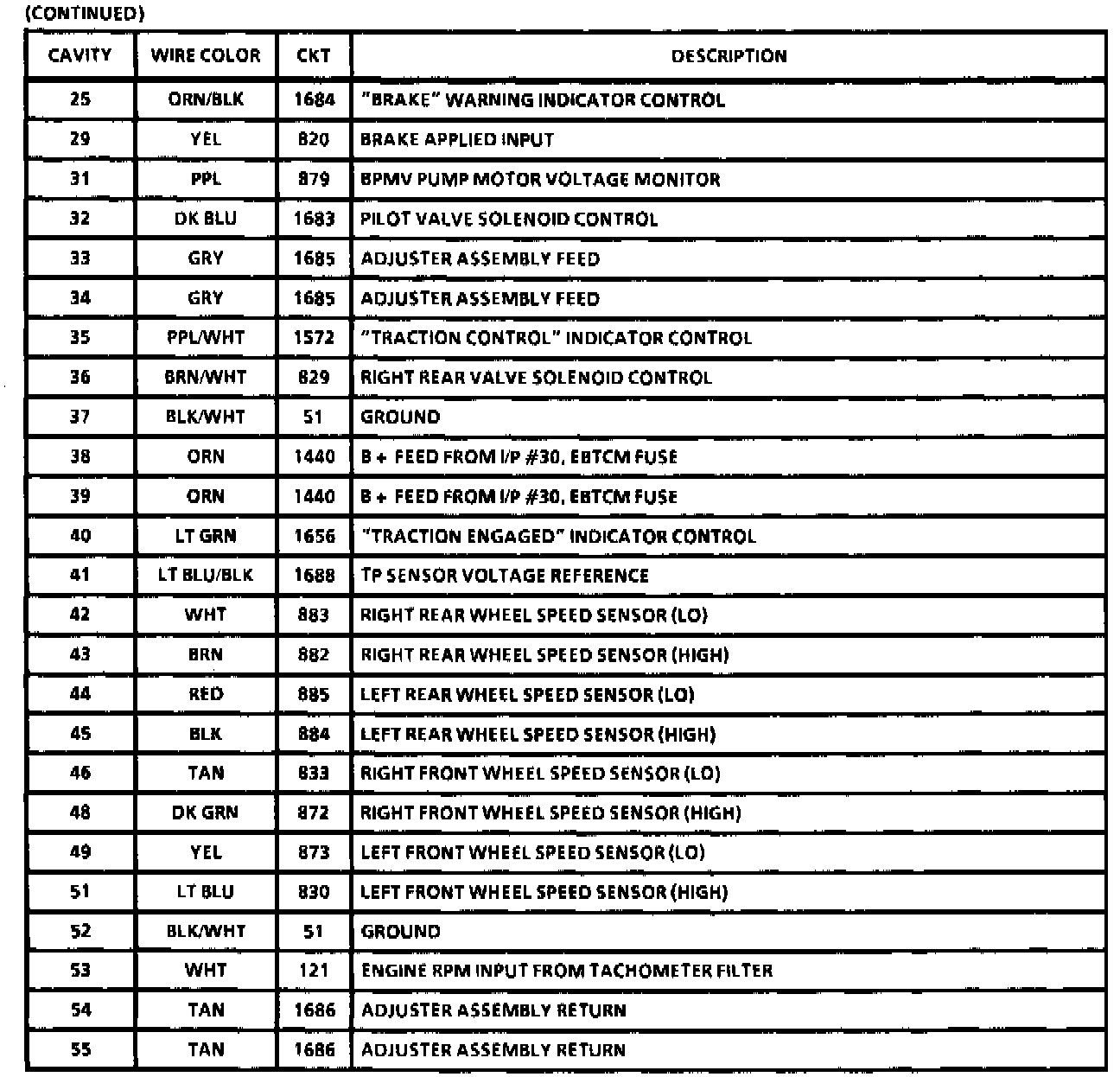

Connector Pin Information, Cont:
