Memory and Seat Controls

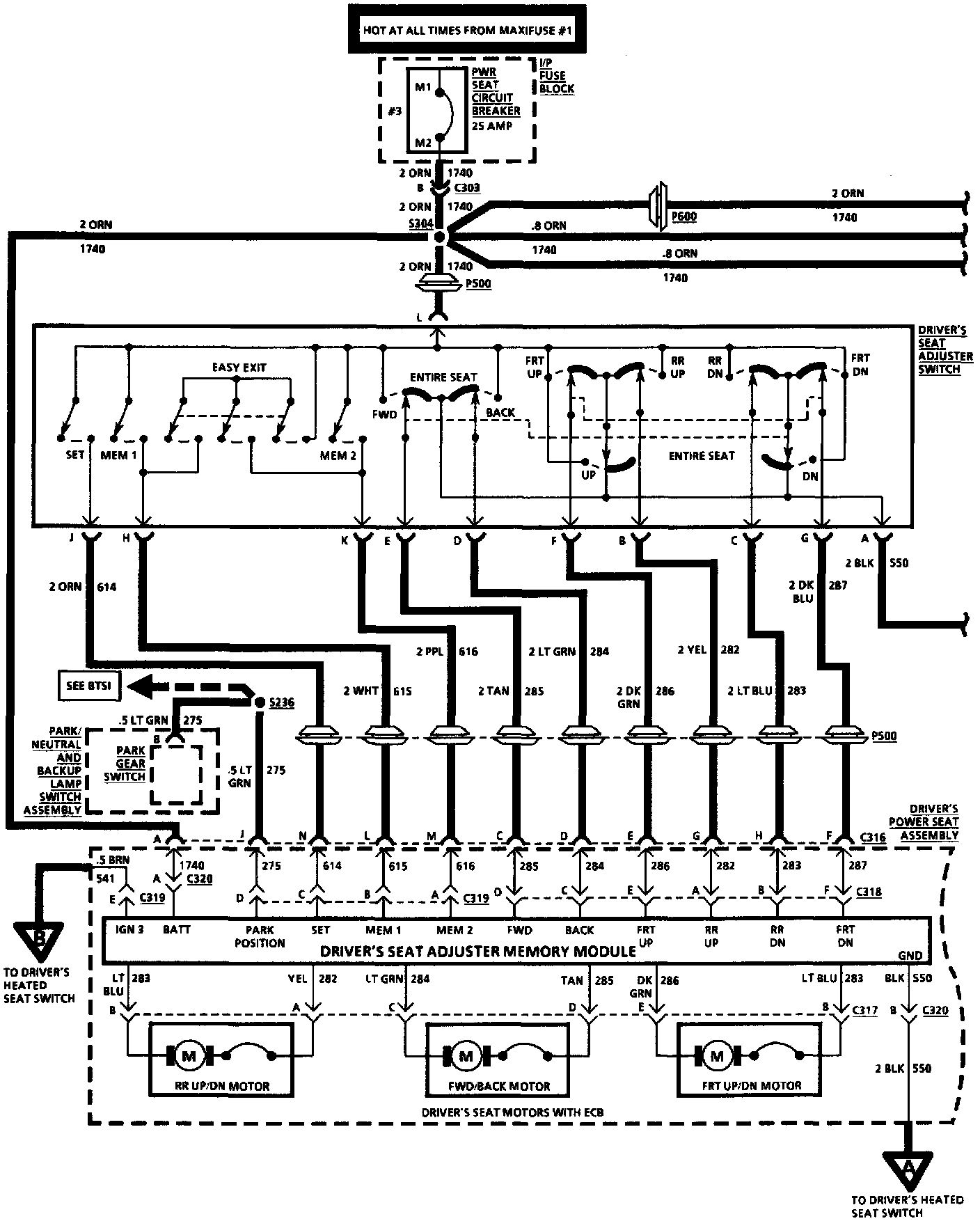

Power Seats-Up Level, Memory And Seat Controls:

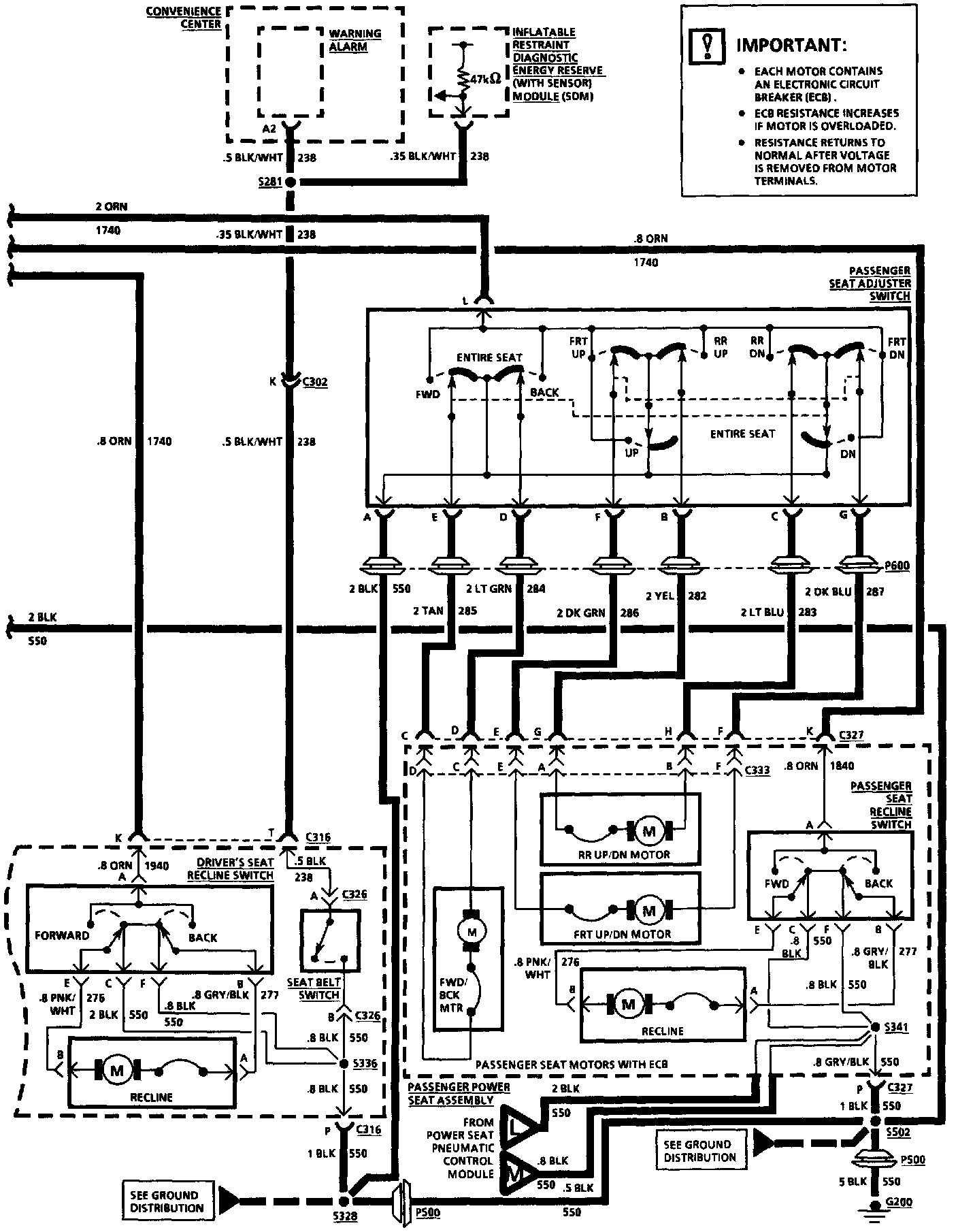

Power Seats-Up Level, Memory And Seat Controls, Cont.:
