Chart C: RAP Power Relay Test
Chart C: RAP Power Relay Test

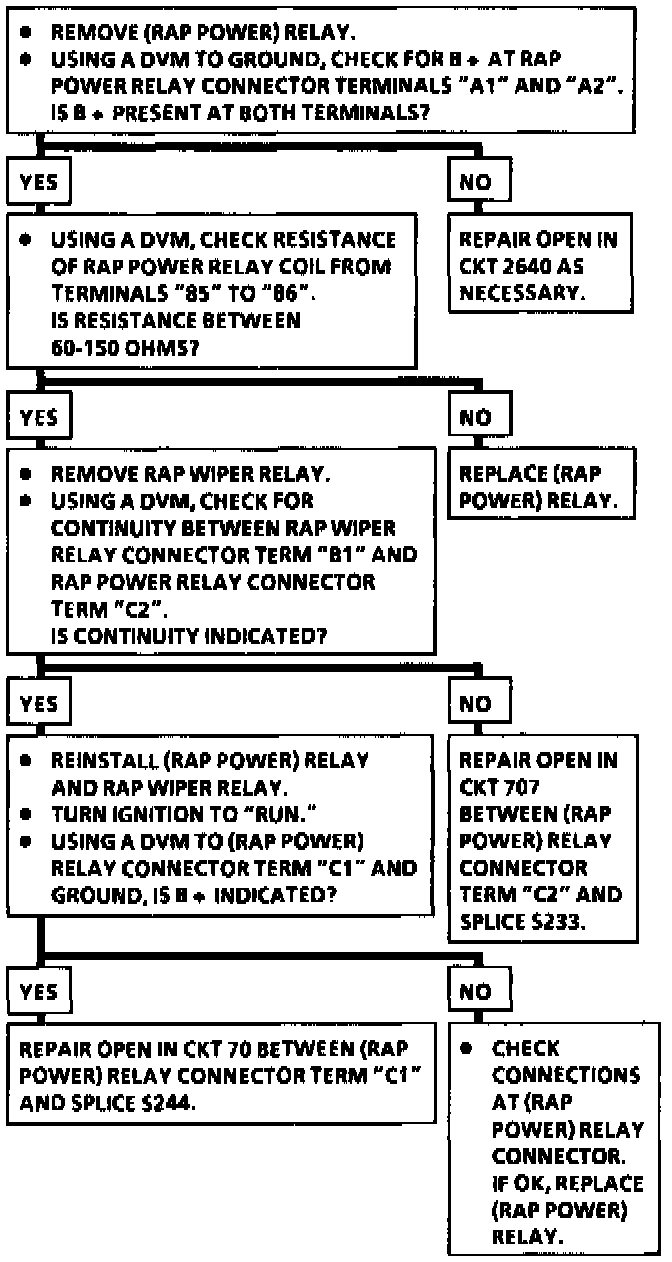

Chart C: Accessory Time Delay Cut-Off (RAP Power) Relay Test:
