Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1994
>>
Fleetwood Brougham V8-5.7L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
Radio/Stereo

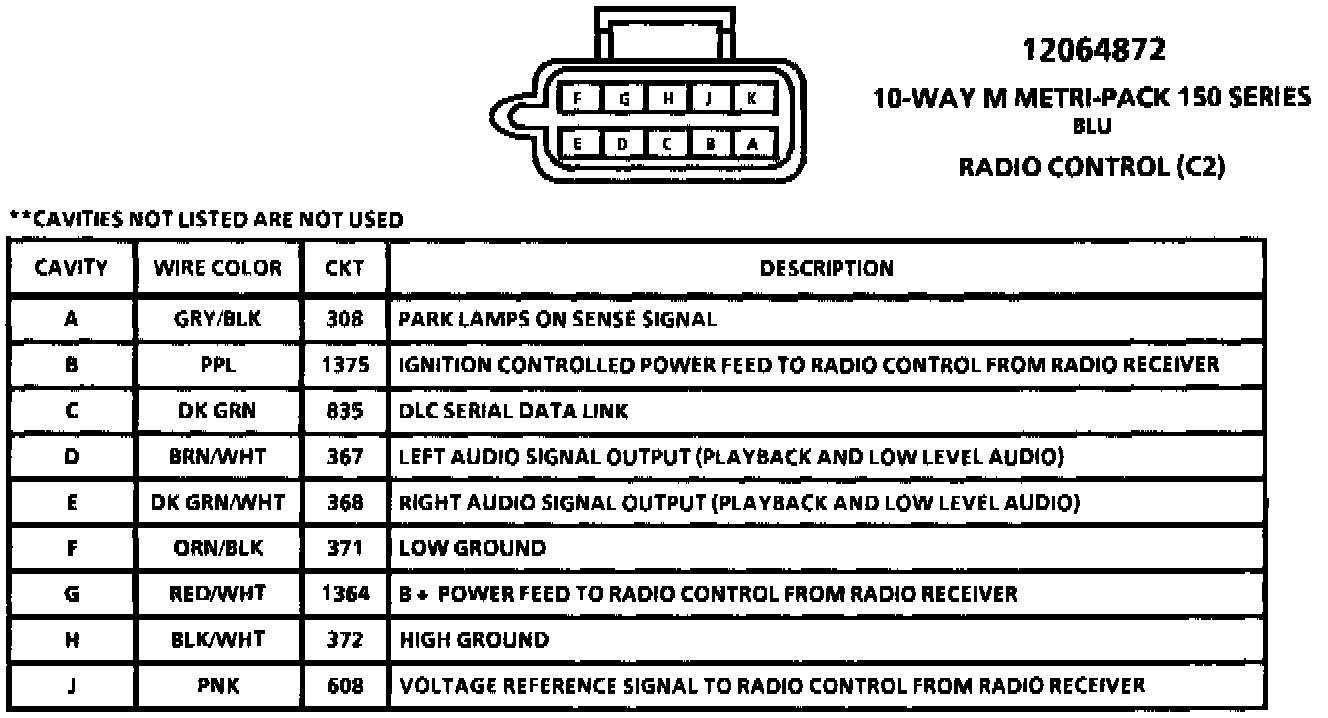

Radio Control Head (C1):

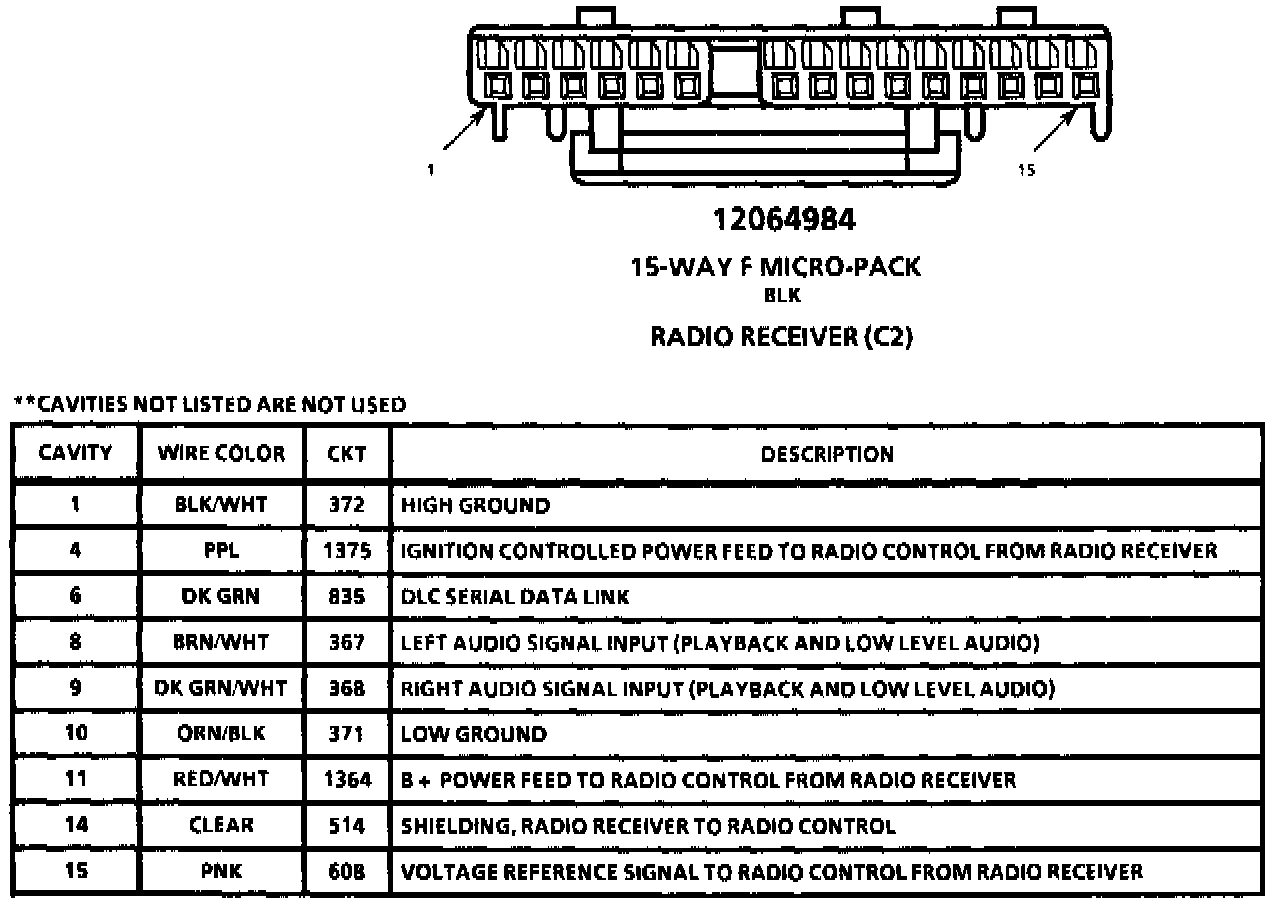

Connector Pin Information:
Connector Pin Information:
Connector Pin Information:
