Cadillac
>>
1994
>>
Eldorado Touring V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Power Distribution
>>
General
General

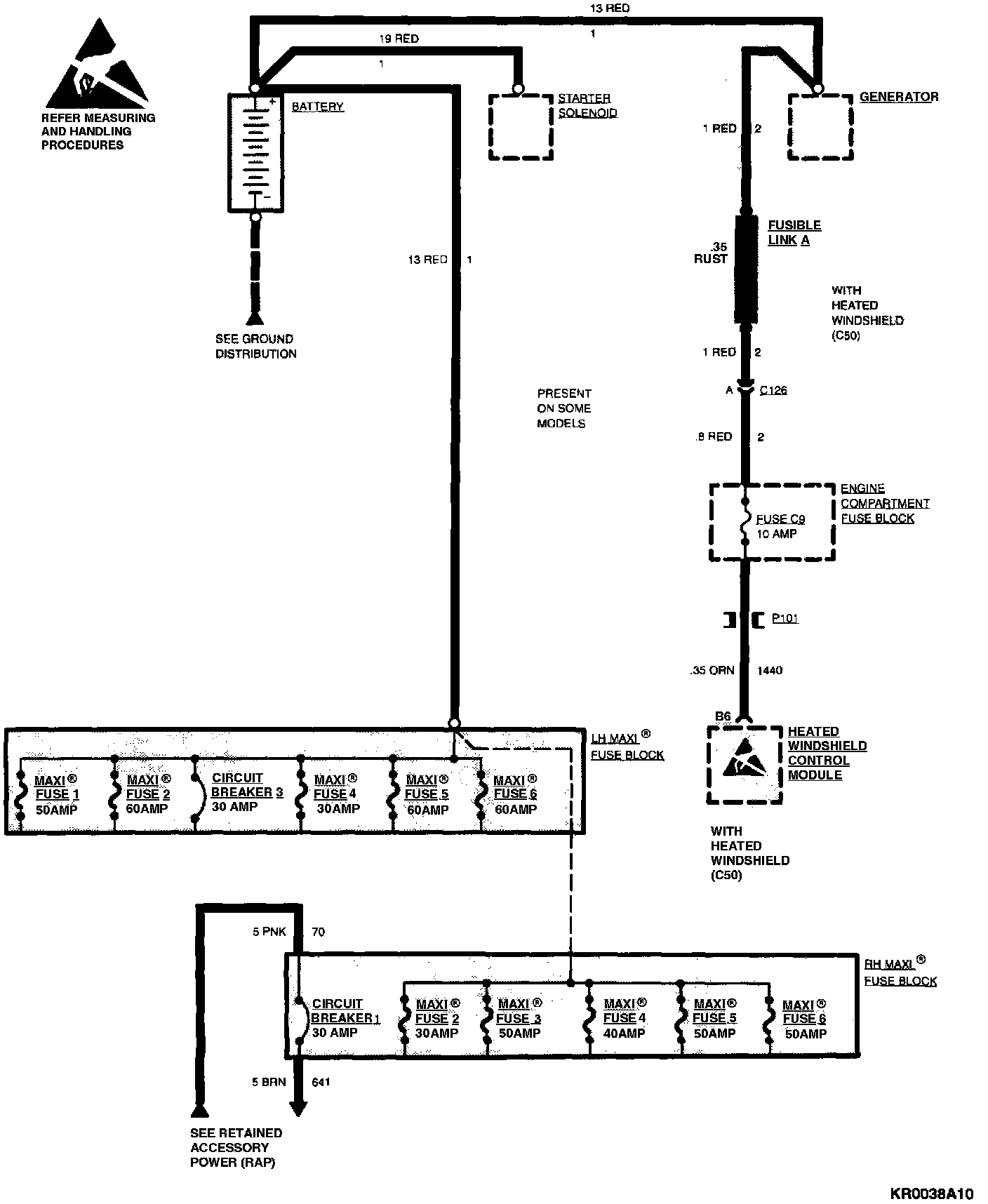

Power Distribution:
