Home >> Cadillac >> 1994 >> Eldorado Touring V8-4.6L VIN 9 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuse Block Details >> Engine Compartment Fuse Block >> Fuse B5

Fuse B5

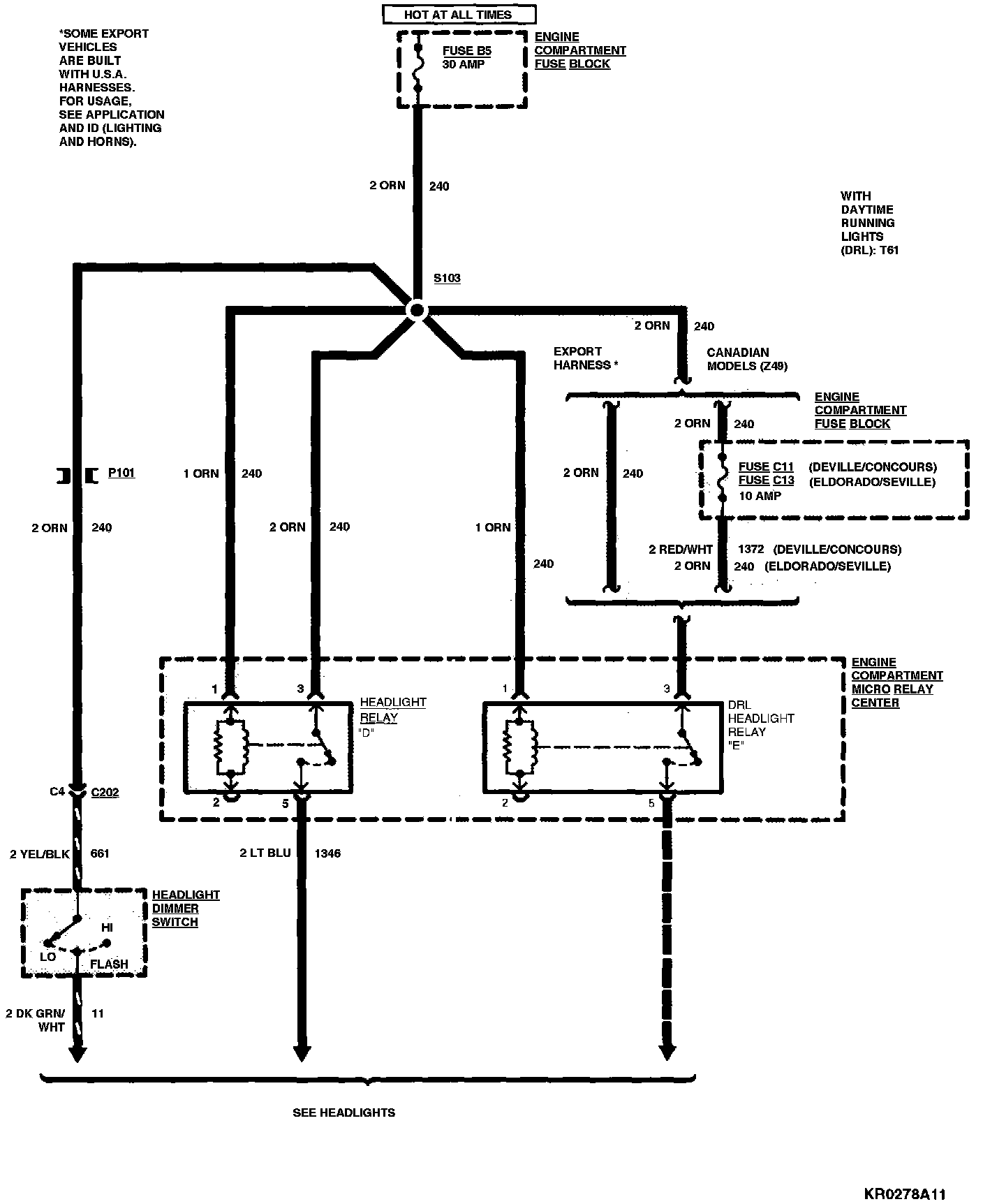

Engine Compartment Fuse Block: Fuse B5:
