Home >> Cadillac >> 1994 >> Eldorado Touring V8-4.6L VIN 9 >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Diagrams >> Trunk Compartment Fuse Block >> Fuse C3

Fuse C3

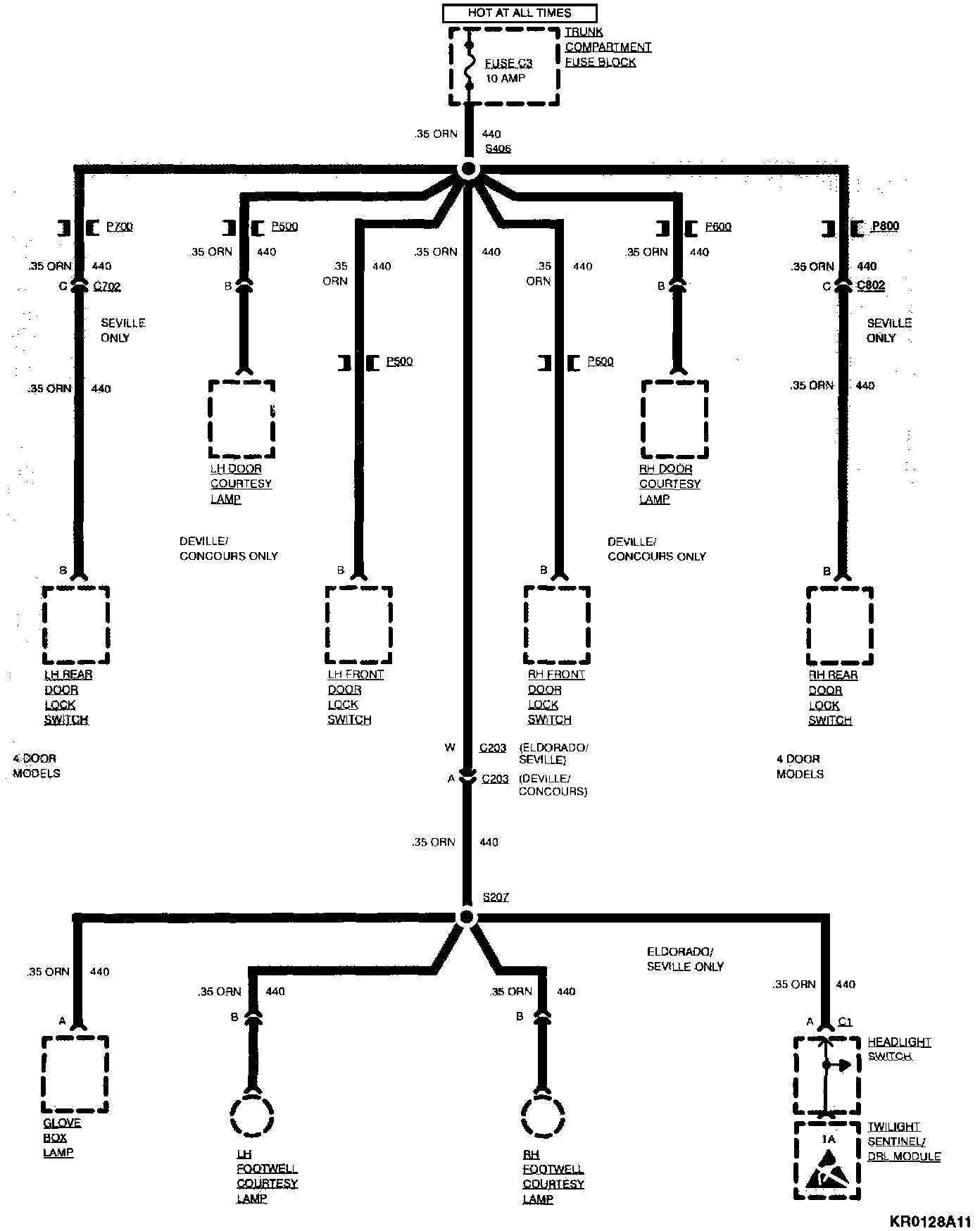

Trunk Compartment Fuse Block: Fuse C3:
