Cadillac
>>
1994
>>
Eldorado Touring V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>
Wiring Schematic
>>

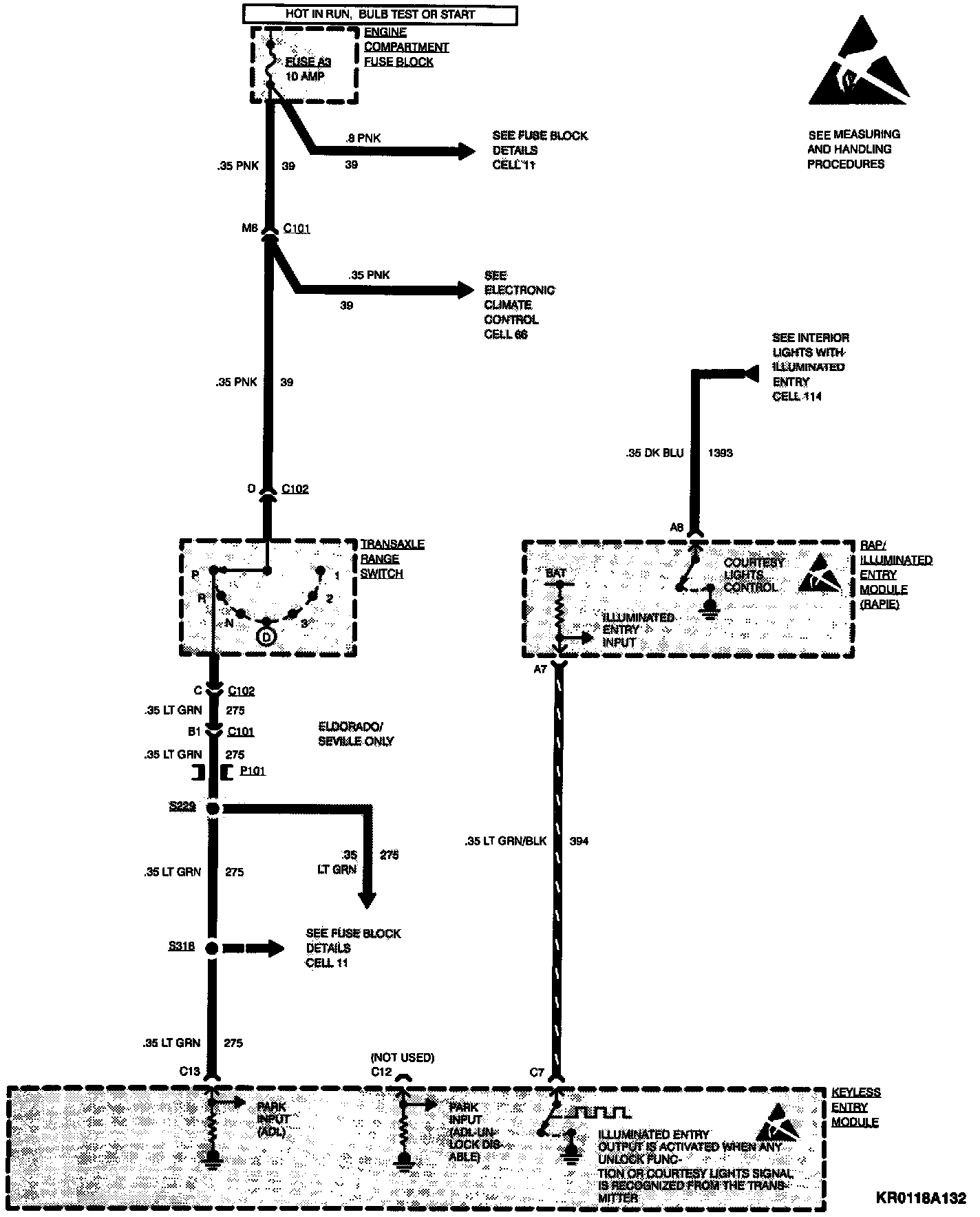

Transaxle & Illuminated Entry
Transaxle & Illuminated Entry
Electrical Diagram:
