Cadillac
>>
1994
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Windshield Washer Pump
>>
Testing and Inspection
>>
Washer Pump Inoperative W/Wiper Motor Operational
Washer Pump Inoperative W/Wiper Motor Operational

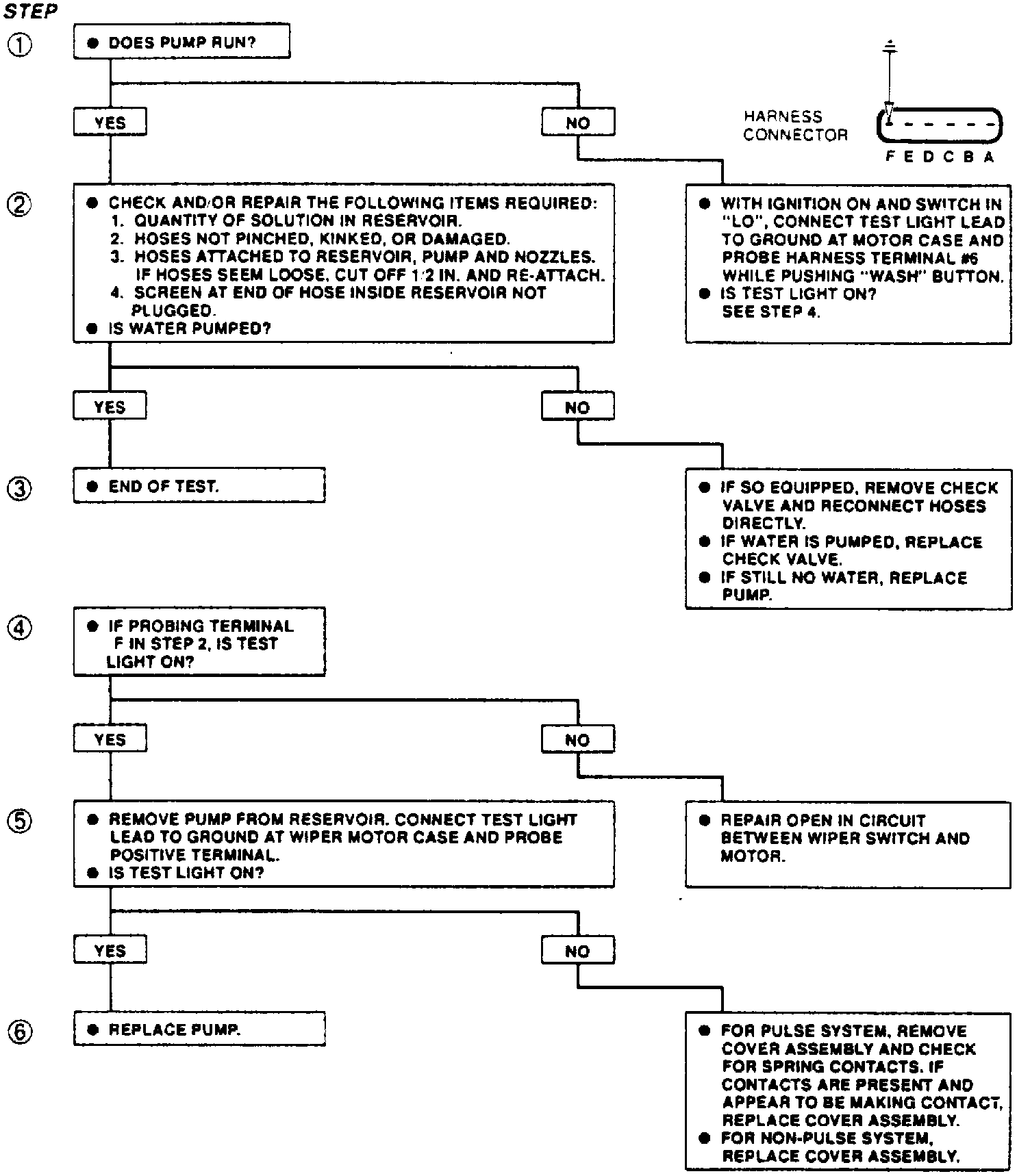

Fig. 82 Test 1: Washer Pump Inoperative W/Wiper Motor Operational:
