Throttle Position Sensor (TPS)
Throttle Position Sensor (TPS)
PCM Sensor Circuit:

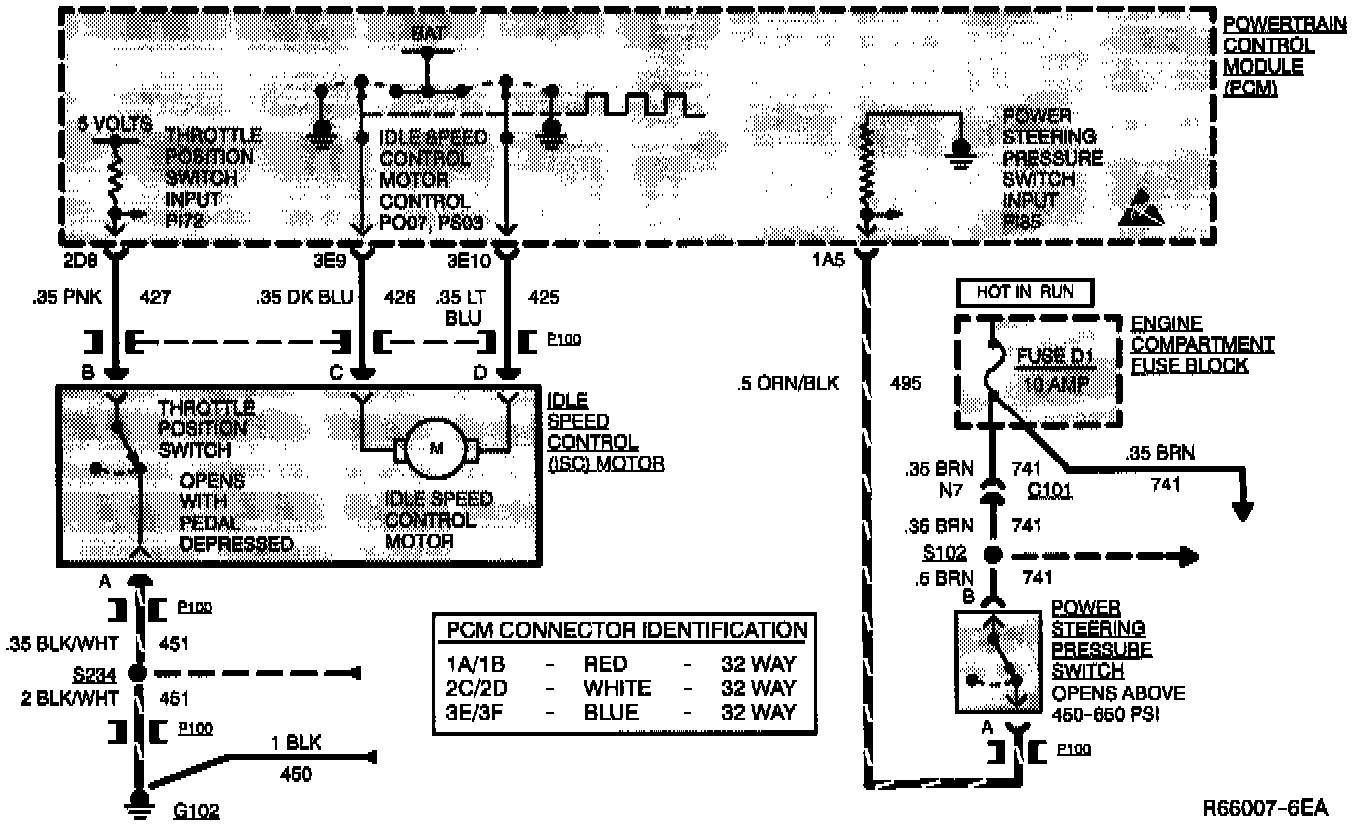

ISC Motor And TP Switch Circuits:
