Trunk Compartment #1 Micro Relay Center
>>

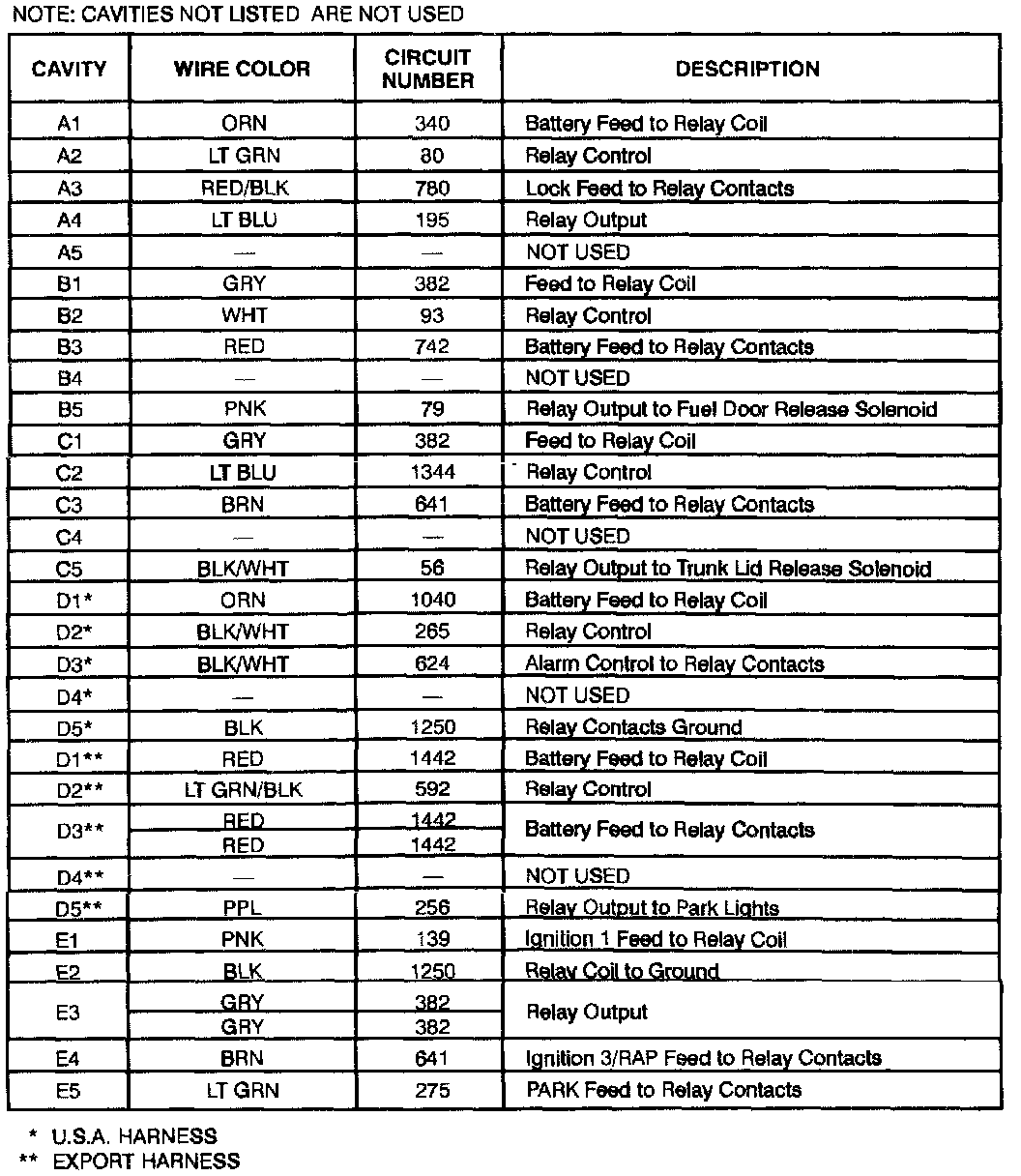

Pinout Description
Pinout Description

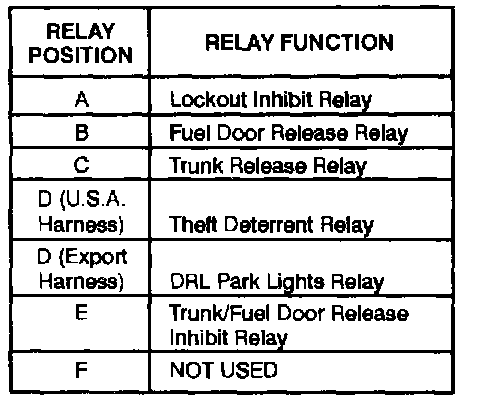

Trunk Compartment #1 Micro Relay Center:
Trunk Compartment #1 Micro Relay Center:
