Home
>>
Cadillac
>>
1994
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>
Wiring Schematic
>>
Switches
Switches

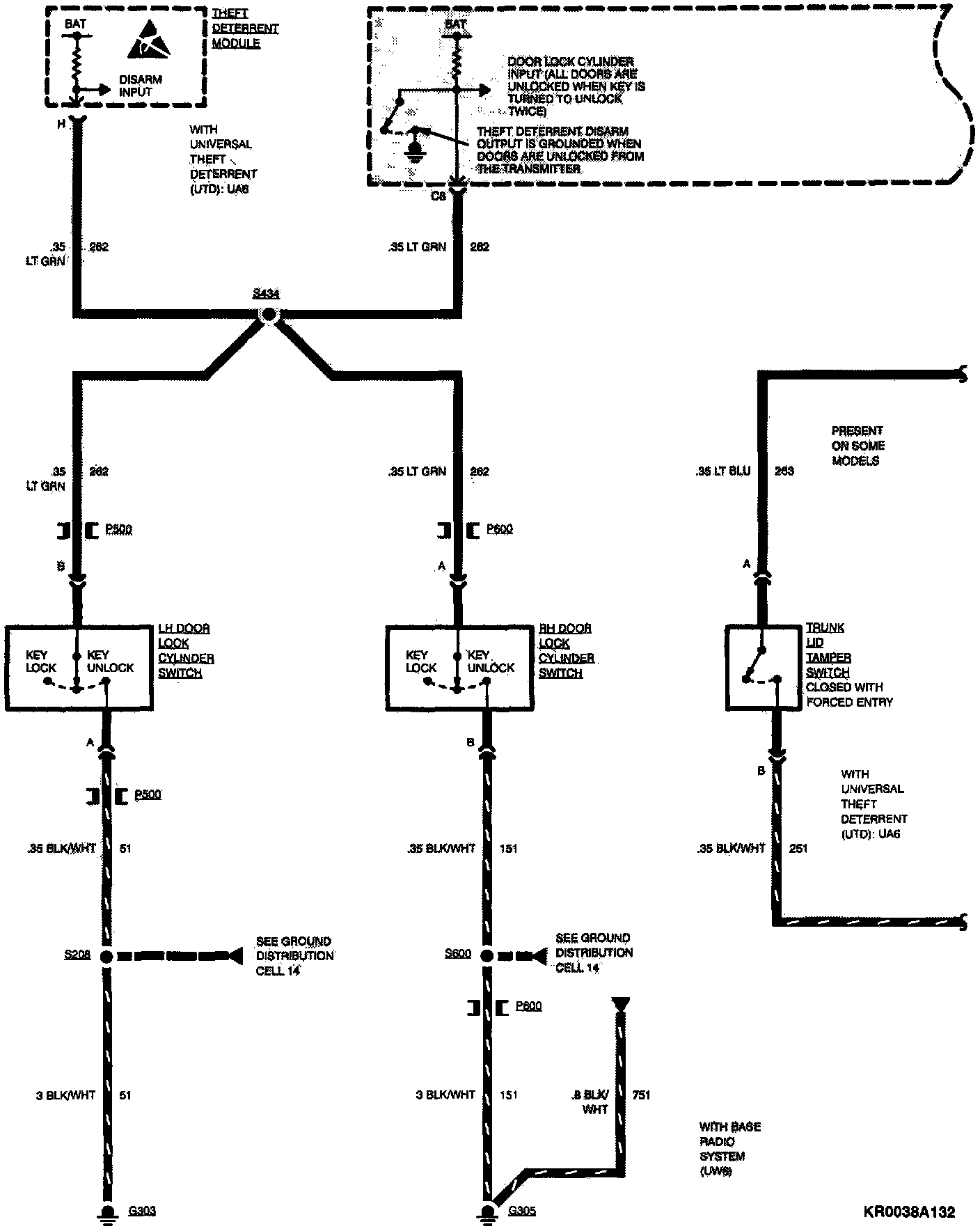

Electrical Diagram:

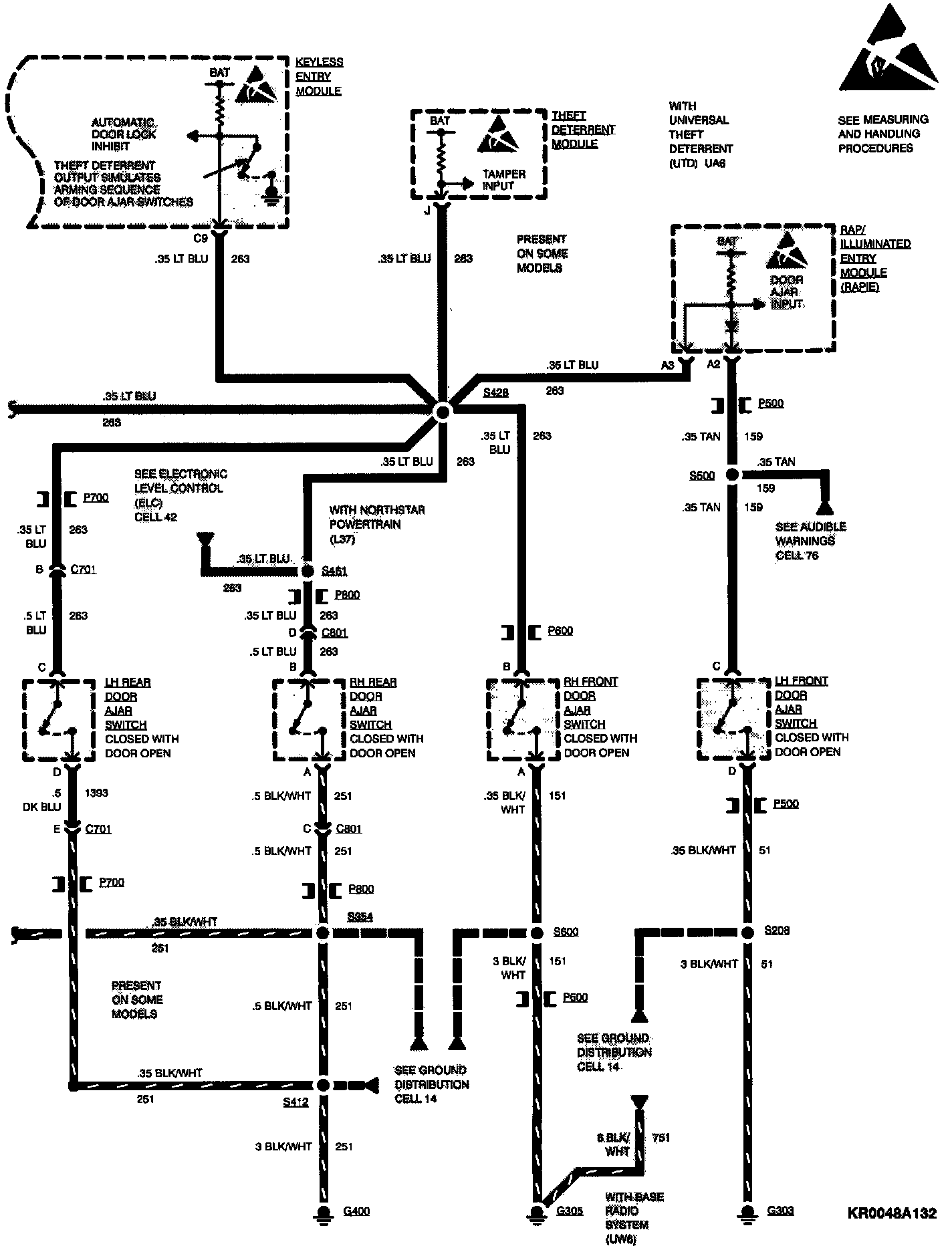

Electrical Diagram:
