Cadillac
>>
1994
>>
DeVille Concours V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>
Wiring Schematic
>>
Power & Ground
Power & Ground

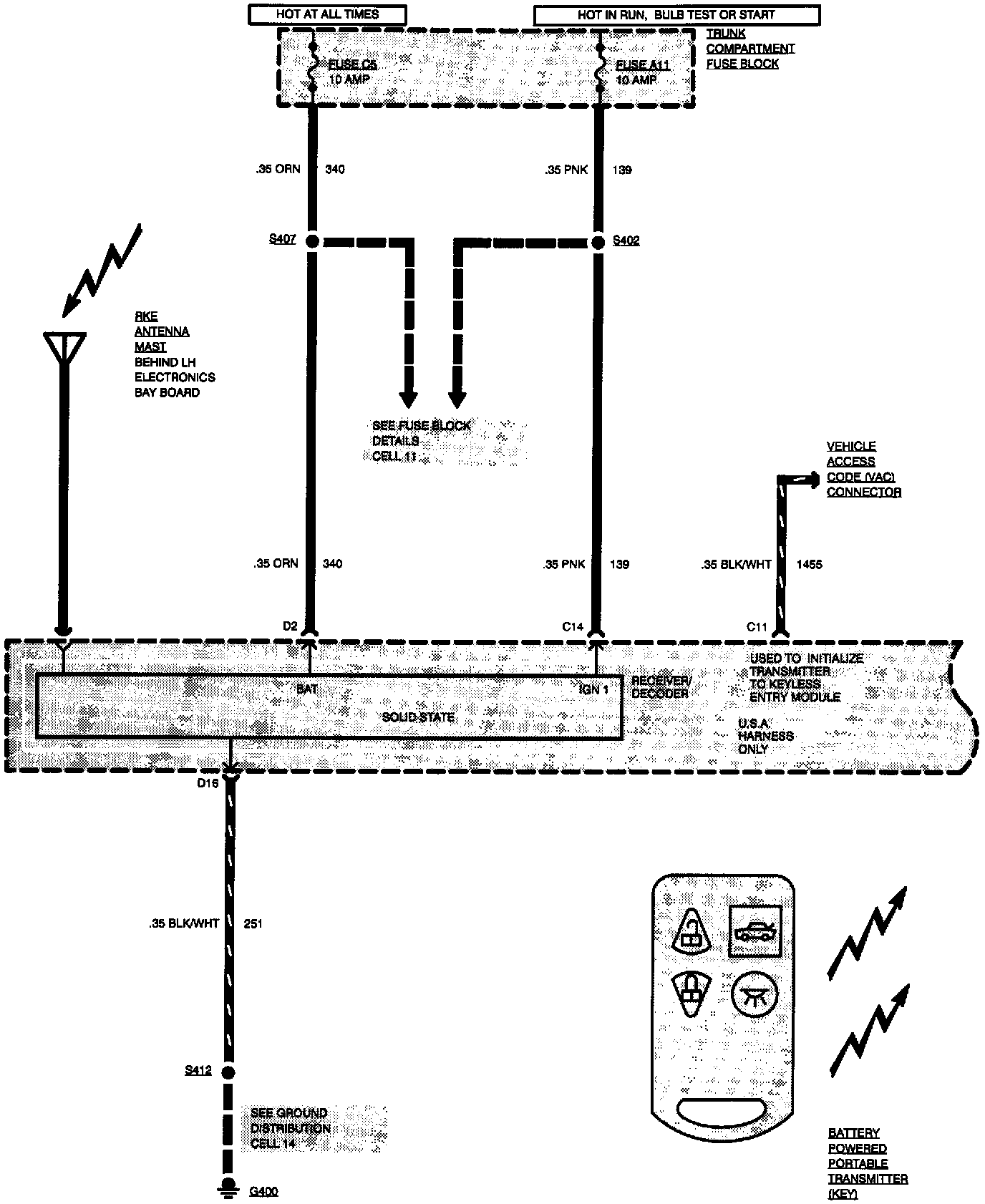

Electrical Diagram:
